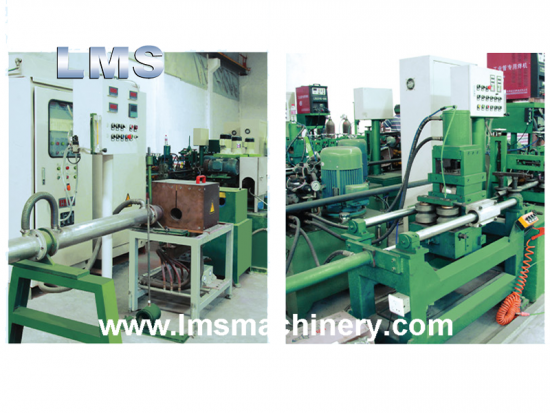

HG165 High Frequency Pipe Making Machine


HG165 High Frequency Pipe Making Machine

HG165 High Frequency Pipe Making Machine

  • Brand:

    LMS
  • item no.:

    HG165 High Frequency
  • Payment:

    T/T
  • product origin:

    GUANGZHOU
  • Color:

    BLUE
  • shipping port:

    HUANGPU
  • Lead Time:

    90 DAYS
Contact Us
Product Details

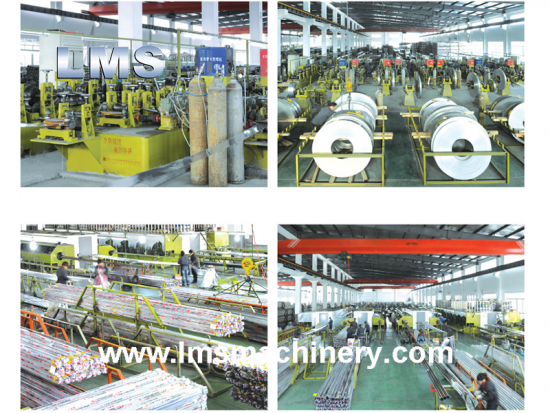

HG165 High Frequency Pipe Making Machine





Product Information



Capacity

  1. Pipe Diameter: 76mm~165mm
  2. Wall Thickness: 2.0mm~6.0mm
  3. Milling Speed: 20~50m/min
  4. Material: Low-carbon steel/Low alloy steel δs ≤ 345Mpa,δb ≤ 610Mpa



Hydraulic Decoiler

  1. Loading Capacity: 5000kg
  2. Coil Width: 240 520mm
  3. Thickness: 2.0mm 6.0mm
  4. Inner Diameter: 600mm 800mm
  5. Outer Diameter: 1200mm 1500mm



Power Supply

  1. Equipment Motor Power: 160kw x 2+ 55kw +30kw+30kw=435kw
  2. Power of HF station: 600kw



Front Shear and Welding Machine

Ensure the continuous feeding of material



Cage Accumulator

  1. Accumulation Capacity: 150 300mm
  2. Feeding Speed: ≥ 100m/min
  3. Manual adjusting
  4. Motor Power: 30kw

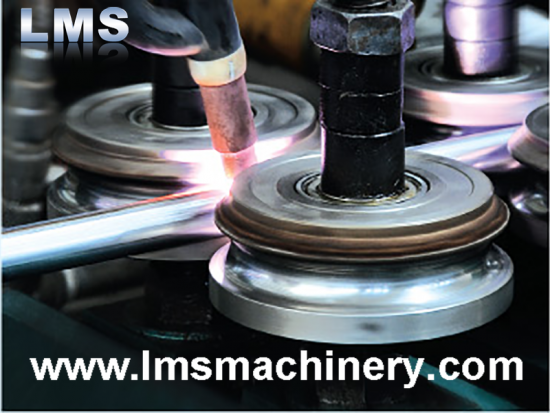

Feeding & Flattening & Roll Forming Machine

  1. Two feeding rollers and five flattening rollers
  2. Forming machine

---Horizontal roller station: 7 sets

Roller Shaft: ?110mm, 40Cr

Roller Material: 45# steel

---Vertical roller station: 9 sets

Roller Shaft: ?70mm, 40Cr

Roller Material: 45# steel

---Drive Gear Box: 7 sets

Gear: 40CrMnTi and 40Cr, shaft: 40Cr

14 sets of transmission shaft

---Extruding and scrap collecting

---Burr-cleaning Device

---Sizing Device

---Straightening Device



Water Cooling System



HF Station

  1. Power Supply: 380V/220V, 50HZ
  2. Working Power: 600KW



Main Driving System

  1. Main Motor: Z4 series, DC 160KW
  2. Main Reducer: ZQ850-9.67



CNC Flying Saw

  1. Cutting Thickness: 2.0mm 6.0mm
  2. Cutting Length: 4 8m
  3. Cutting O.D: 76 165mm
  4. Cutting Speed: 6-8 cuts/min
  5. Cutting Tolerance: ≤ 6mm
  6. Motor Power: 55 kw, grade 2 AC motor
    A free consultation

    Please send us roll forming profile with specifications, thickness and other processing requirements for our customized machine.If you need standard machine, please send us the model you want.

    Thank you for leaving the messages to our LMS team, we would reply you as soon as we can.
