Brand:
LMSitem no.:
HG50Payment:
T/Tproduct origin:
ChinaColor:
Customizedshipping port:
Huangpu, ChinaLead Time:
90 Days

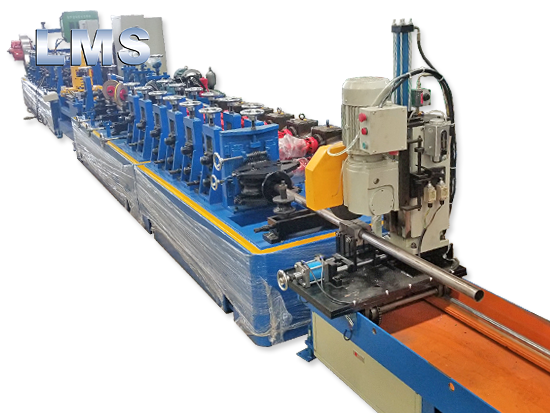

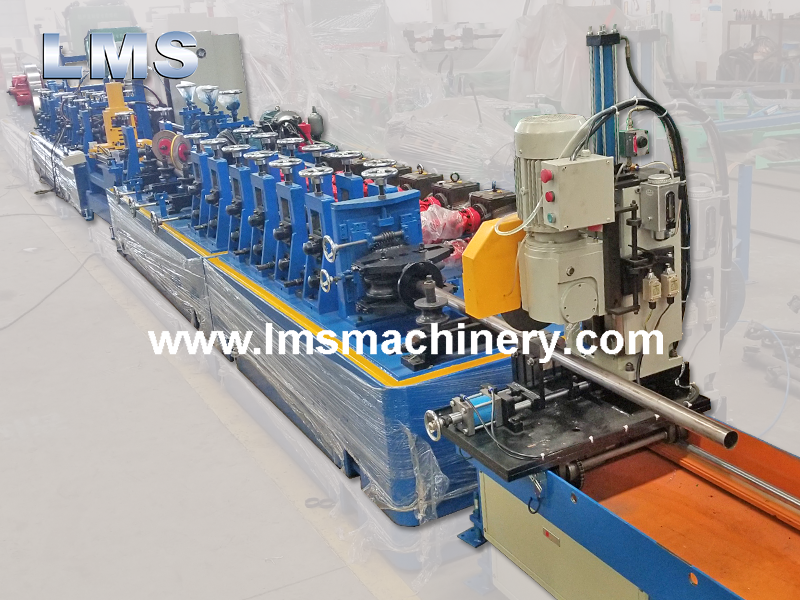

This equipment is specially used for producing high-frequency straight seam welded pipe and corresponding square pipe and special-shaped pipe. The composition of equipment is from decoiler to fixed length cutting saw. Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.
Diameter of welded tubes: Ø16 - 50 mm
Thickness of welded tubes: 0.8 - 3.0 mm
Major motor power: 70 KW
High frequency power: 100 KW
Line speed: 30 - 70 m/min
| NO. | Item | Quantity |
| 1 | Decoiler | 1 Unit |
| 2 | Material Collector | 1 Set |

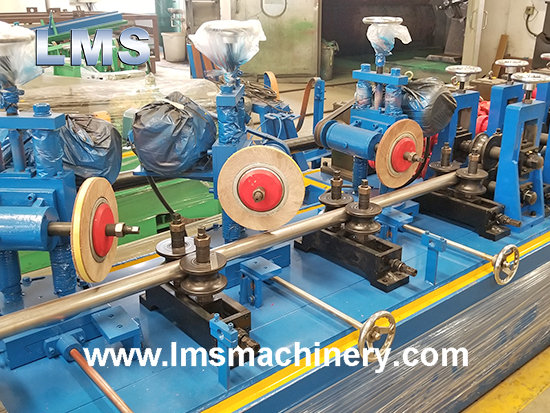

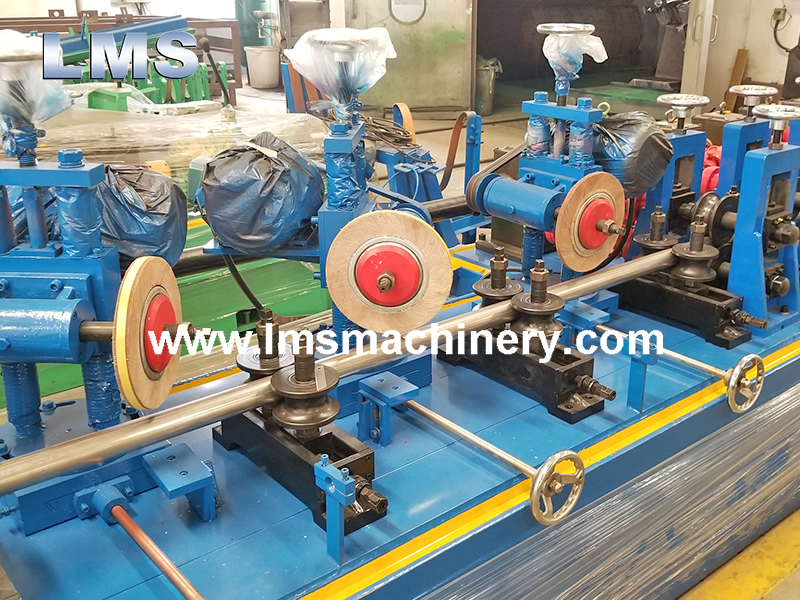

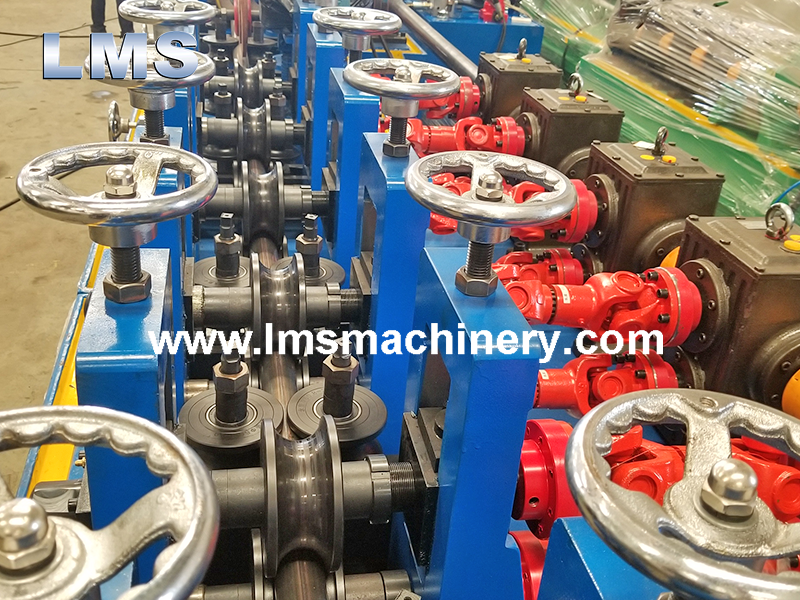

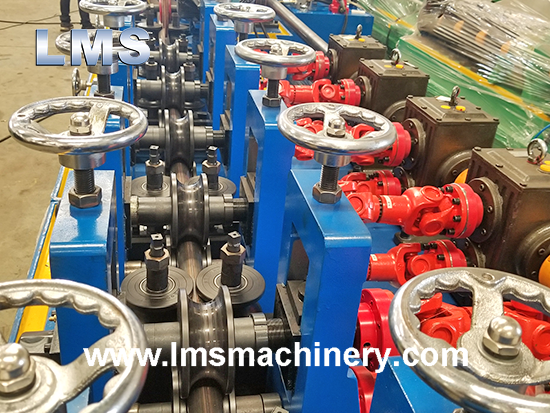

| 3 | Roll Former | 1 Set |

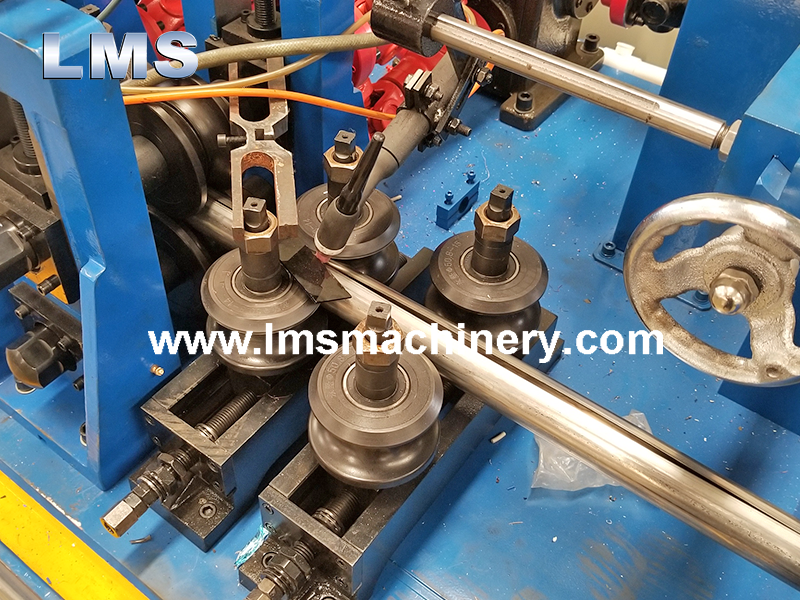

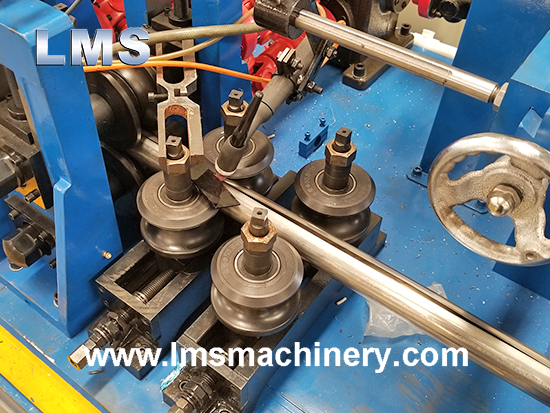

| 4 | HF Welding Device / Burr-Cleaner | 1 Set |
| 5 | Cooling Channel | 1 Set |

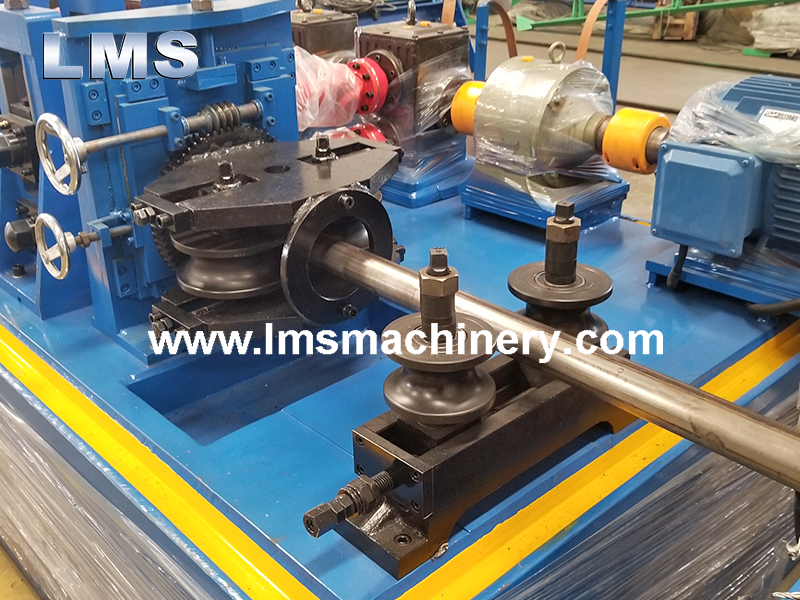

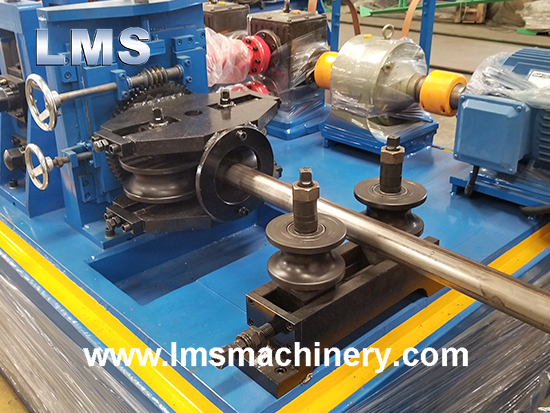

| 6 | Straightening / Sizing Device | 1 Set |

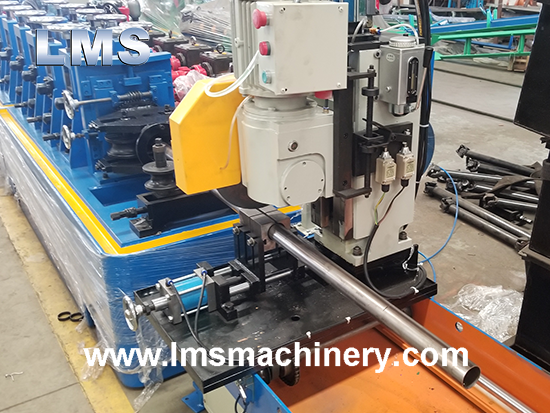

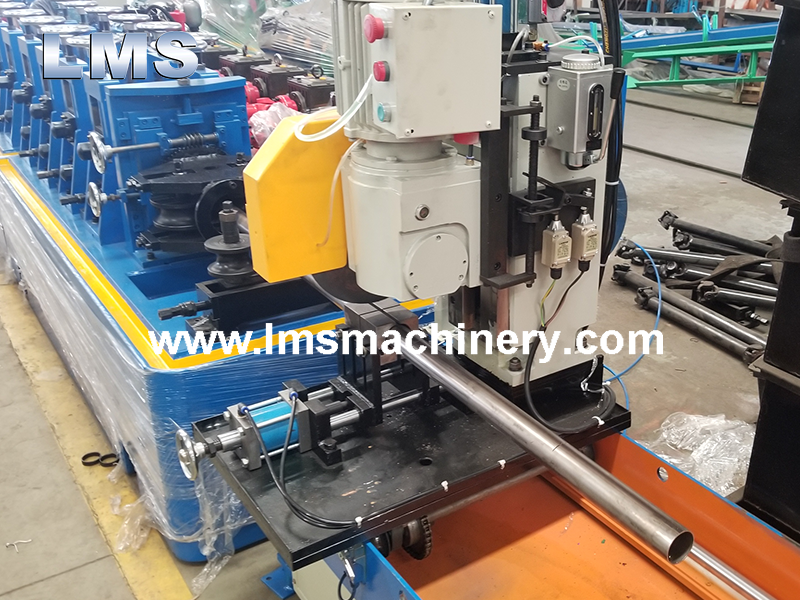

| 7 | Flying Saw | 1 Set |
| 8 | Run-Out Table | 1 Set |
HG165 High Frequency Pipe Making Machine
HG114 High Frequency Pipe Making Machine
HG100 High Frequency Pipe Making Machine
HG50 High Frequency Pipe Mill Machine
Please send us roll forming profile with specifications, thickness and other processing requirements for our customized machine.If you need standard machine, please send us the model you want.
