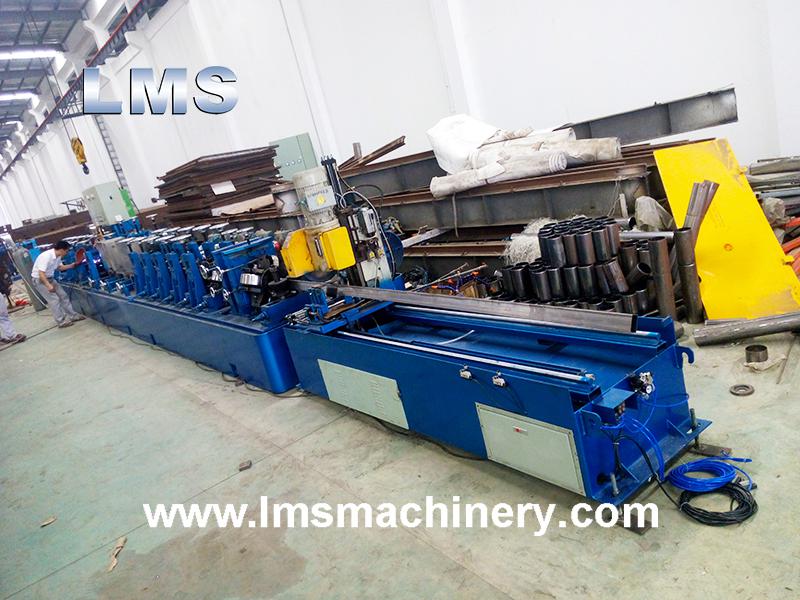

HG100 High Frequency Pipe Making Machine

Product Information

Capacity

  1. Pipe Diameter: 30mm - 101mm
  2. Wall Thickness: 1.5mm 4.0mm
  3. Milling Speed: 20 50m/min
  4. Material: Low-carbon steel/Low alloy steel δs ≤ 345Mpa,δb ≤ 610Mpa



Name of Equipment Quantity Remark

Hydraulic Decoiler 1

Cage Accumulator 1

Feeding & Flattening 1

Roll Forming Machine 1

HF Machine 1

Burr-Cleaning Device 1

Water-Cooling System 1

Sizing Device 1

Straightening Device 1

Main Drive System 1

CNC Flying Saw 1

Run-out Table 1



Hydraulic Decoiler

  1. Loading Capacity: 4000kg
  2. Coil Width: 100 340mm
  3. Thickness: 1.5mm 4.0mm
  4. Inner Diameter: 500mm -700mm
  5. Outer Diameter: 1000mm -1500mm



Power Supply

  1. Equipment Motor Power: 110kw x 2+ 45kw +30kw+30kw=325kw
  2. Power of HF station: 300kw

Front Shear and Welding Machine

Ensure the continuous feeding of material



Cage Accumulator

  1. Accumulation Capacity: 150 300mm
  2. Feeding Speed: ≥ 130m/min
  3. Manual adjusting
  4. Motor Power: 11kw



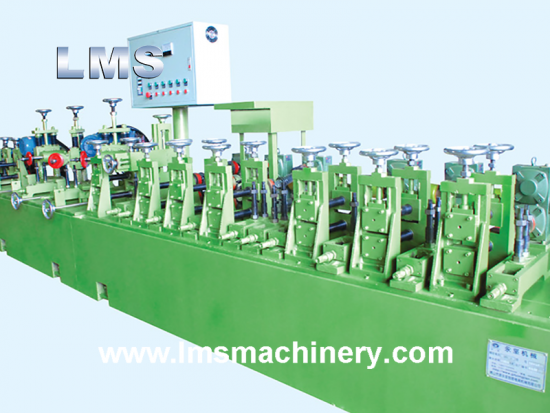

Feeding & Flattening & Roll Forming Machine

  1. Two feeding rollers and five flattening rollers
  2. Forming machine

---Horizontal roller station: 7 sets

Roller Shaft: ?95mm, 40Cr

Roller Material: 45# steel

---Vertical roller station: 9 sets

Roller Shaft: ?55mm, 40Cr

Roller Material: 45# steel

---Drive Gear Box: 7 sets

Gear: 40CrMnTi and 40Cr, shaft: 40Cr

14 sets of transmission shaft

---Extruding and scrap collecting

---Burr-cleaning Device

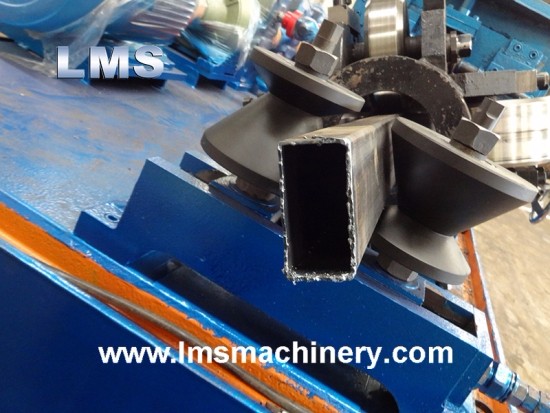

---Sizing Device

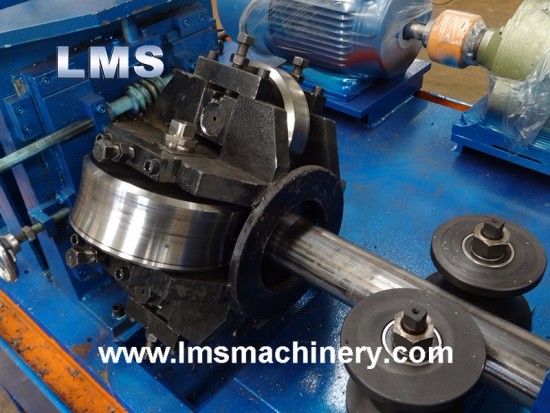

---Straightening Device



Water Cooling System

HF Station

  1. Power Supply: 380V/220V, 50HZ
  2. Working Power: 300KW



Main Driving System

  1. Main Motor: Z4 series, DC 110KW
  2. Main Reducer: ZQ750-10.35

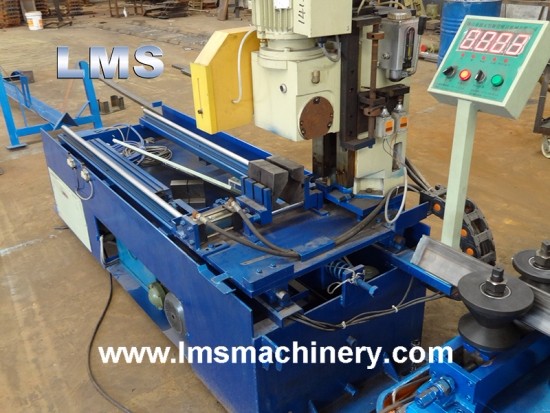

CNC Flying Saw

  1. Cutting Thickness: 1.5mm 4.0mm
  2. Cutting Length: 4 8m
  3. Cutting O.D: 30 -110mm
  4. Cutting Speed: 6-8 cuts/min
  5. Cutting Tolerance: ≤ 6mm
  6. Motor Power: 45 kw, grade 2 AC motor

pipe making machine

    A free consultation

    Please send us roll forming profile with specifications, thickness and other processing requirements for our customized machine.If you need standard machine, please send us the model you want.
