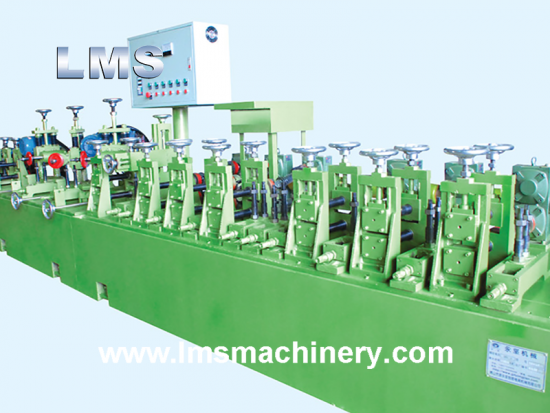

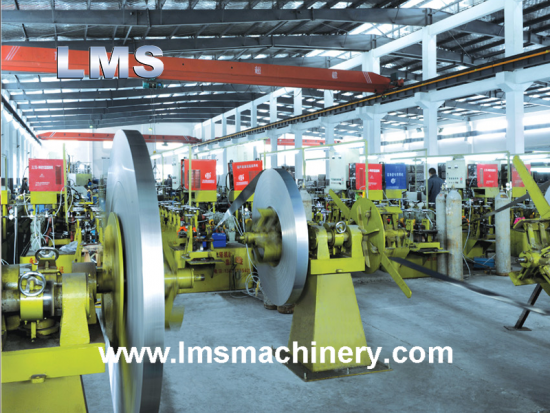

HG114 High Frequency Pipe Making Machine


HG114 High Frequency Pipe Making Machine

HG114 High Frequency Pipe Making Machine

  • Brand:

    LMS
  • item no.:

    HG114 High Frequency
  • Payment:

    T/T
  • product origin:

    GUANGZHOU
  • Color:

    BLUE
  • shipping port:

    HUANGPU
  • Lead Time:

    90 DAYS
Contact Us
Product Details

HG114 High Frequency Pipe Making Machine



Product Information

Capacity

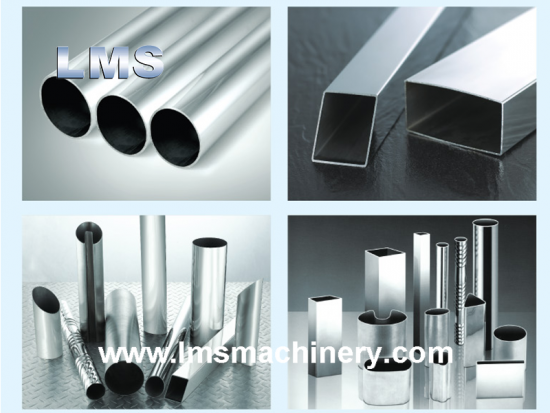

  1. Pipe Diameter: 48mm~130mm
  2. Wall Thickness: 2.0mm~5.0mm
  3. Milling Speed: 20~50m/min
  4. Material: Low-carbon steel/Low alloy steel  δs ≤ 345Mpa,δb ≤ 610Mpa
  5. No.

Name of Equipment

Quantity

Remark

1Hydraulic Decoiler 1



2Cage Accumulator 1



3Feeding & Flattening 1



4Roll Forming Machine 1



5HF Machine 1



6Burr-Cleaning Device 1



7Water-Cooling System 1



8Sizing Device 1



9Straightening Device 1



10Main Drive System 1



11CNC Flying Saw 1



12Run-out Table 1



Hydraulic Decoiler

  1. Loading Capacity: 4000kg
  2. Coil Width: 150 410mm
  3. Thickness: 2.0mm 5.0mm
  4. Inner Diameter: 500mm - 700mm
  5. Outer Diameter: 1000mm - 1500mm



Power Supply

  1. Equipment Motor Power: 132kw x 2+ 45kw +30kw+30kw=369kw
  2. Power of HF station: 400kw

Front Shear and Welding Machine

Ensure the continuous feeding of material



Cage Accumulator

  1. Accumulation Capacity: 150 300mm
  2. Feeding Speed: ≥ 100m/min
  3. Manual adjusting
  4. Motor Power: 30kw

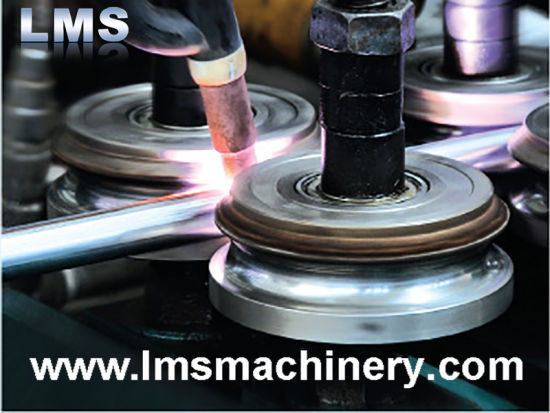

Feeding & Flattening & Roll Forming Machine

  1. Two feeding rollers and five flattening rollers
  2. Forming machine

---Horizontal roller station: 7 sets

Roller Shaft: ?100mm, 40Cr

Roller Material: 45# steel

---Vertical roller station: 9 sets

Roller Shaft: ?60mm, 40Cr

Roller Material: 45# steel

---Drive Gear Box: 7 sets

Gear: 40CrMnTi and 40Cr, shaft: 40Cr

14 sets of transmission shaft

---Extruding and scrap collecting

---Burr-cleaning Device

---Sizing Device

---Straightening Device



Water Cooling System



HF Station

  1. Power Supply: 380V/220V, 50HZ
  2. Working Power: 300KW



Main Driving System

  1. Main Motor: Z4 series, DC 132KW
  2. Main Reducer: ZQ750-10.35



CNC Flying Saw

  1. Cutting Thickness: 2.0mm 5.0mm
  2. Cutting Length: 4 8m
  3. Cutting O.D: ?48 ?130mm
  4. Cutting Speed: 6-8 cuts/min
  5. Cutting Tolerance: ≤ 6mm
  6. Motor Power: 45 kw, grade 2 AC motor
    A free consultation

    Please send us roll forming profile with specifications, thickness and other processing requirements for our customized machine.If you need standard machine, please send us the model you want.

    Thank you for leaving the messages to our LMS team, we would reply you as soon as we can.
