LMS High Speed Grilyato Ceiling U10×30-50 Production Line

New Products

LMS High Speed Grilyato Ceiling U10×30-50 Production Line
LMS High Speed Grilyato Ceiling U10×30-50 Production Line LMS High Speed Grilyato Ceiling U10×30-50 Production Line LMS High Speed Grilyato Ceiling U10×30-50 Production Line LMS High Speed Grilyato Ceiling U10×30-50 Production Line LMS High Speed Grilyato Ceiling U10×30-50 Production Line LMS High Speed Grilyato Ceiling U10×30-50 Production Line LMS High Speed Grilyato Ceiling U10×30-50 Production Line

LMS High Speed Grilyato Ceiling U10×30-50 Production Line

  • Brand:

    LMS

  • item no.:

    U10×30-50

  • Payment:

    T/T

  • product origin:

    Guangdong, China

  • Color:

    Customized

  • shipping port:

    Huangpu, Guangzhou

  • Lead Time:

    90 Days
Contact Us
Product Details

LMS High Speed Grilyato Ceiling U10×30-50 Production Line

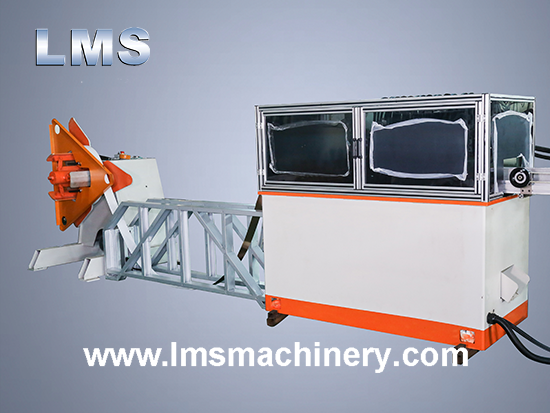

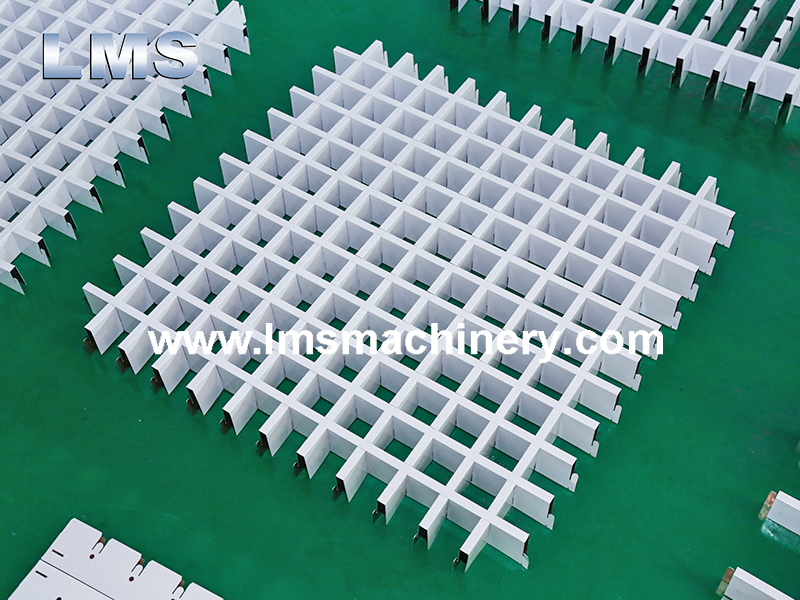

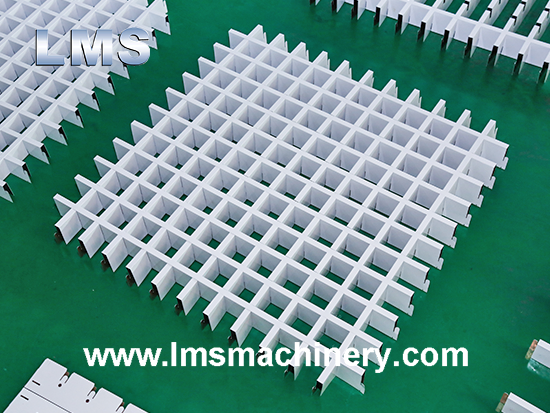

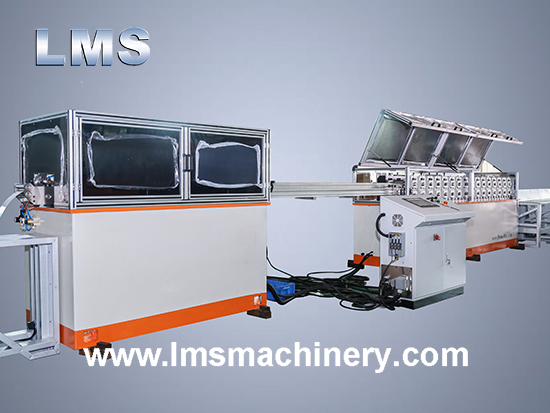

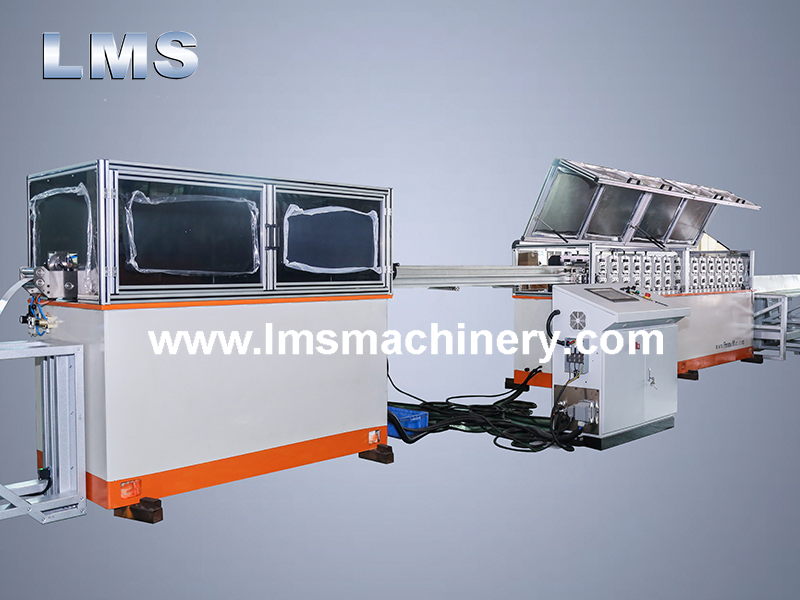

LMS High Speed Grilyato Ceiling U10x30-50 Production Line is mainly used for the high-speed production of U10 suspended open cell ceiling grilyato with the speed of 0 ~ 30 m/min. The full production line includes decoiler, leveler, hydraulic punching & cutting unit, conveyor, roll forming machine, run-out table and electric control system.





High Speed Grilyato Ceiling Roll Forming Machine Suitable Material Specification:



NO. Item Specification
1 Material Aluminum / Steel
2 Material Thickness 0.25 ~ 0.35 MM

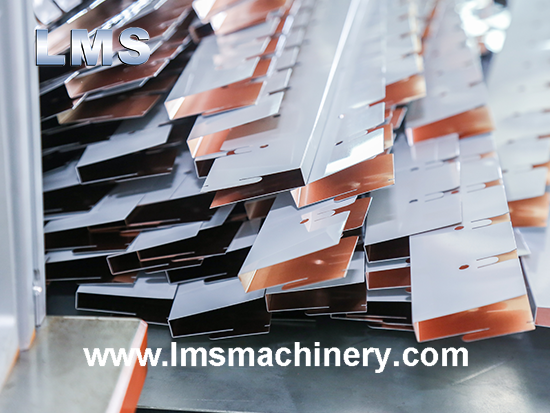

3 Profile Size U10×27 / U10×40 MM (Top & Low Profiles)
4 Punching Step 30 / 50 / 60 / 75 / 100 / 120 / 150 / 200 MM (8 Sizes)
5 Cutting Length 605.5 / 1200 / 2400 MM
6 Production Speed 0 ~ 30 M/Min (50 / 100 / 150 / 200 MM Gap)
7 Cutting Tolerance ±0.1



High Speed Grilyato Ceiling Production Line Production Process:

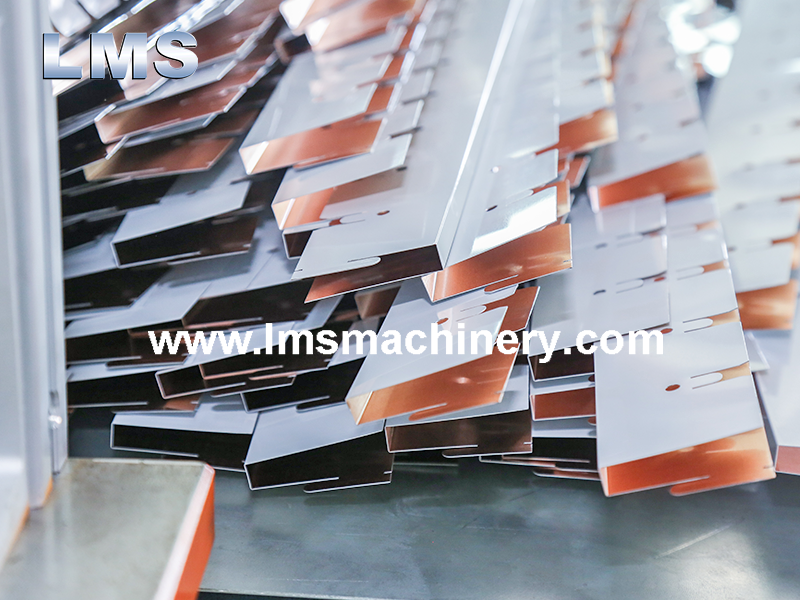

Material Coil → Decoiling → Leveling → Hydraulic Punching & Cutting → Conveying → Roll Forming → Discharge → Finished Profile.

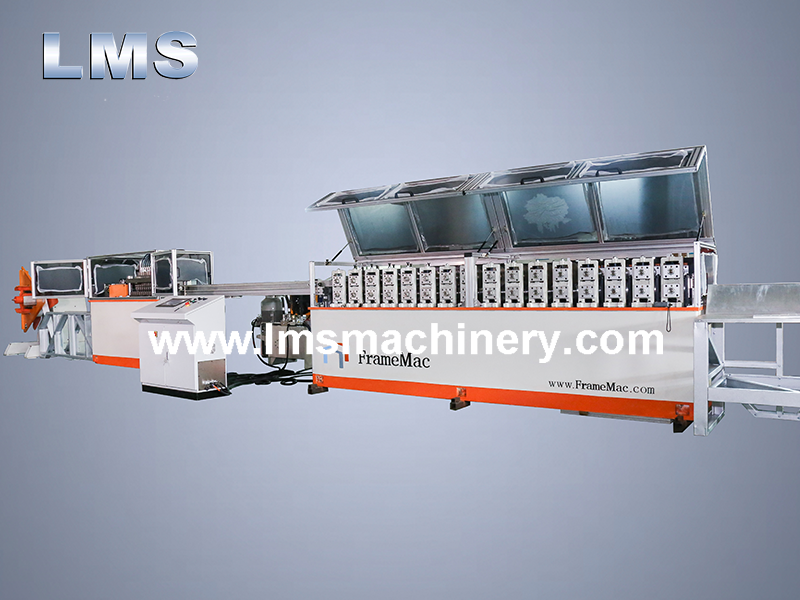

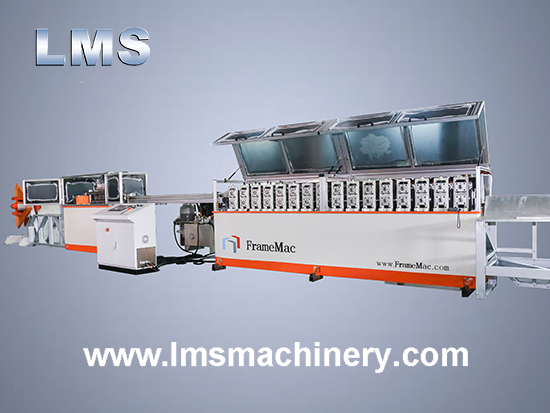

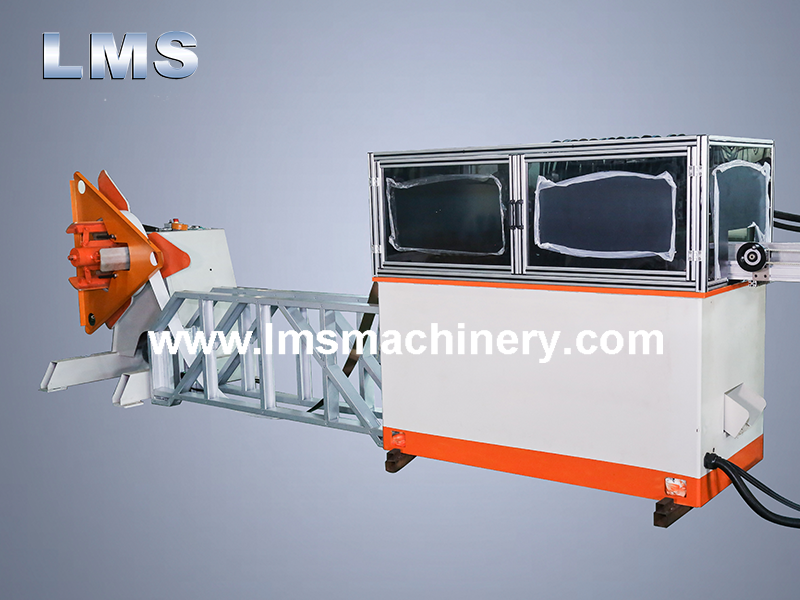

High Speed Open Cell Ceiling Grilyato Roll Forming Machine Composition Of Complete Production Line:



NO. Equipment Qty.
1 Decoiler 1 Set
2 Leveler 1 Set
3 Hydraulic Punching & Cutting Unit 1 Unit

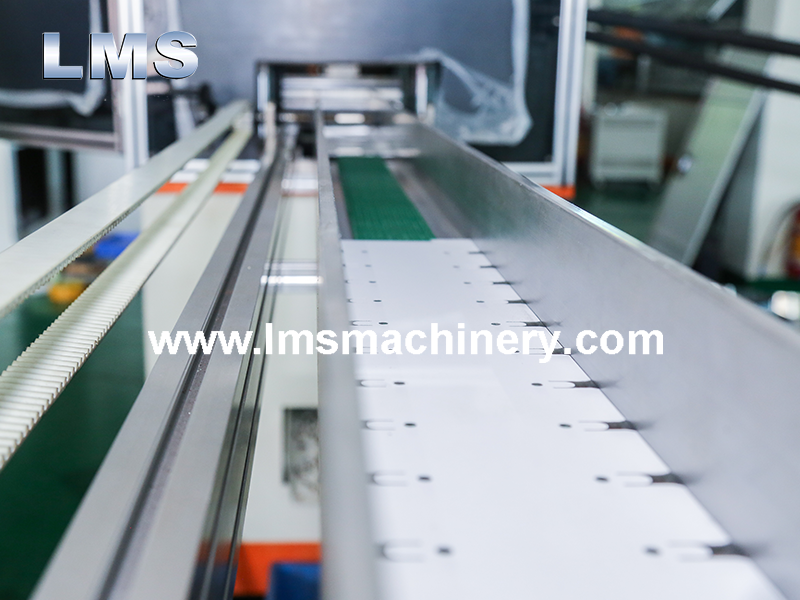

4 Conveyor 1 Set
5 Roll Forming Machine 1 Set
6 Run-Out Table 1 Set
7 Electric Control System 1 Unit

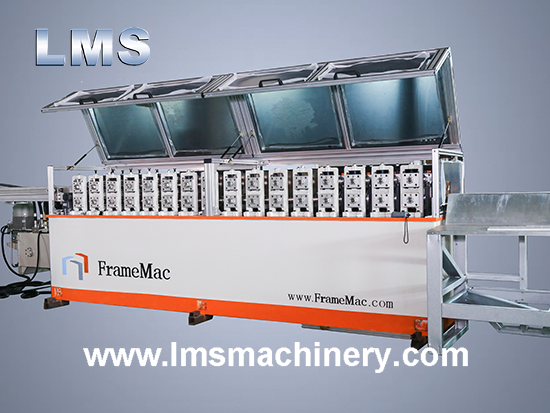

High Speed Grilyato Ceiling Roll Forming Machine



High Speed Grilyato Ceiling Production Line



High Speed Open Cell Ceiling Grilyato Roll Forming Machine



High Speed Metal Ceiling Grilyato Making Machine



High Speed Open Cell Ceiling Production Line



High Speed Suspended Ceiling Grilyato Roll Forming Machine



High Speed Grilyato Ceiling Roll Forming Machine



High Speed Grilyato Ceiling Production Line



High Speed Open Cell Ceiling Grilyato Roll Forming Machine
