Cable Tray Roll Forming Machine

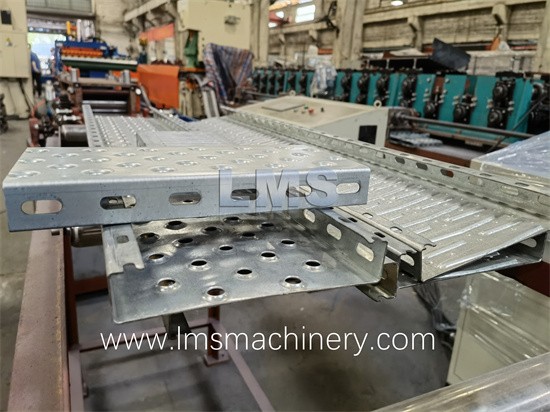

LMS Perforated Cable Tray Production Line

The fully automatic cable tray production line is a special production line equipment specially designed for cable support system manufacturers for offshore and marine,industries and onshore,building,etc .

Customers can choose the appropriate equipment according to their own and market demand. Automatic production line for cable tray adopts electric control, touch screen operation, easy to learn, and greatly improved the production efficiency of cable tray in mass production.

Cable tray system is used to support insulated electric cables used for power distribution and communication. This system is suitable for workshops, buildings …

Cable tray system is commonly used for cable management in commercial and industrial construction.

Cable tray system is especially useful in situations where changes in a wiring system are anticipated since new cables can be installed by laying them in the trunking, instead of pulling them through a pipe.

Cable tray system provide the maximum protection to cables, but requires cutting the trunking or using fittings to enter or exit cables.

Cable tray system is made of galvanized steel, stainless steel, steel finished with powder coating. The material for a given application is chosen based on where it will be used. Galvanized trunking may be made of pre-galvanized steel sheet fabricated into the trunking, or may be hot-dip galvanized after fabrication. When galvanized trunking is cut to length in the field, usually the cut surface will be painted with a zinc-rich compound to protect the metal from corrosion.

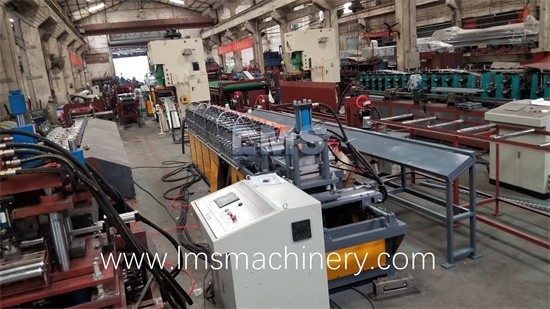

Production line  includes following parts:

(1) decoiler

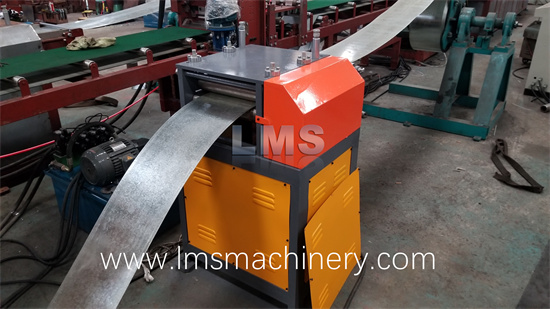

(2)leveling for better punching then feeding to punching machine

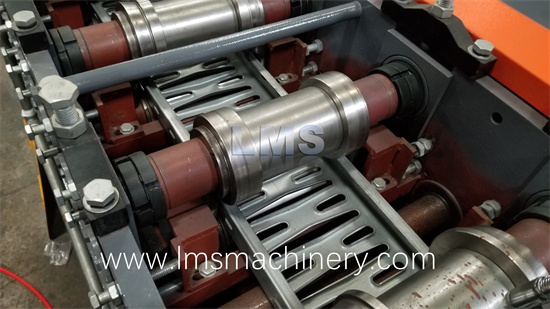

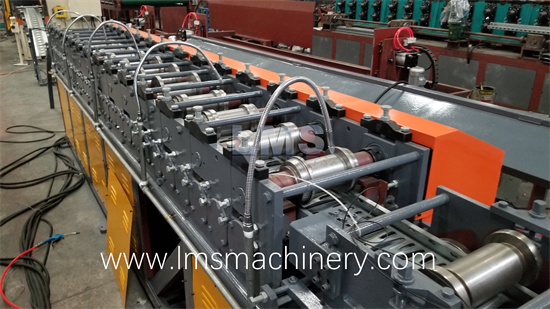

(3) roll forming machine

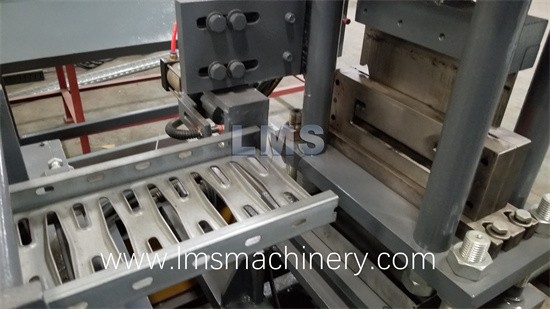

(4)cut-off device.

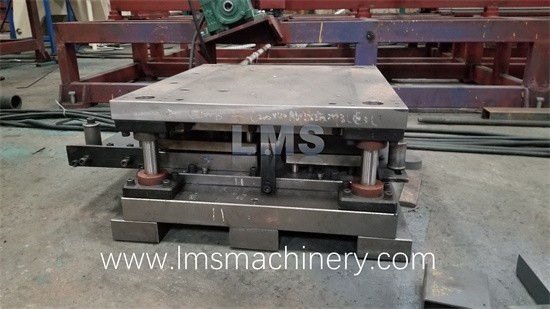

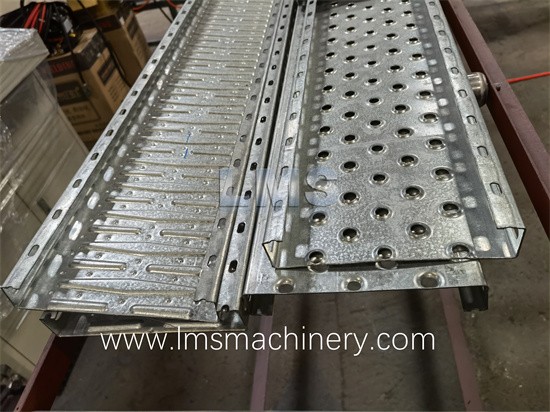

(5)finished profile, customer could change different mold to achieve different product

(6)controller

comparing with traditional cable tray processing:

1. Select the right sheet metal, cutting

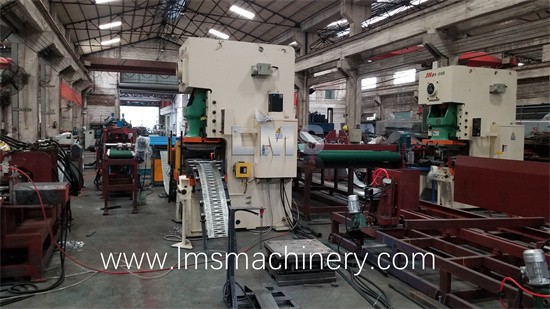

2. Punching
3. Smooth grinding
4. Bending

making 4 processes in 1 production line, saving time and worker a lot.

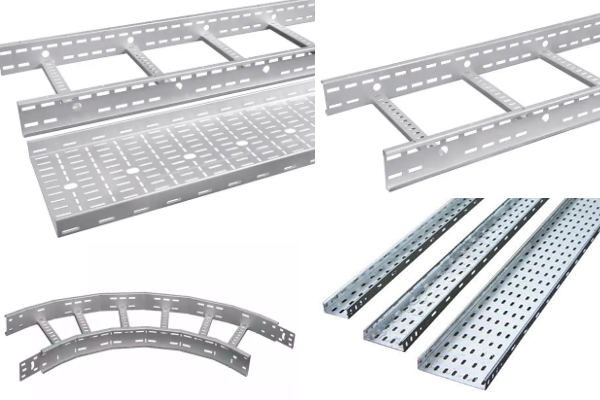

Cable tray machine could make:

Cable trunking machine

Perforated cable tray machine

Cable ladder machine

Enclosure machine

Cable tray system machine
