LMS R-Panel Roof Tile Roll Forming Machine


LMS R-Panel Roof Tile Roll Forming Machine

LMS R-Panel Roof Tile Roll Forming Machine

  • Brand:

    LMS
  • item no.:

    Roof Tile Roll Forming Machine
  • Payment:

    T/T
  • product origin:

    Guangdong, China
  • Color:

    Customized
  • shipping port:

    Huangpu, China
  • Lead Time:

    90 Days
Contact Us
Product Details

LMS R-Panel Roof Tile Roll Forming Machine

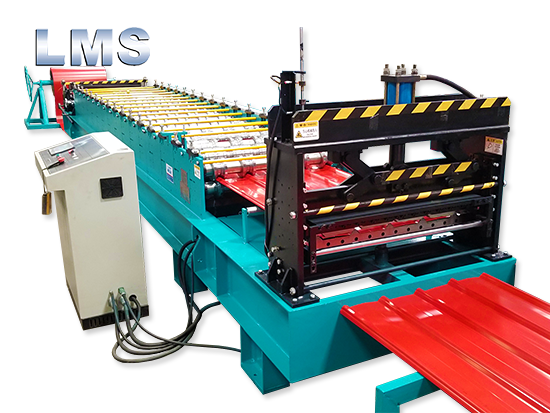

LMS R-Panel Roof Tile Roll Forming Machine mainly consists of decoiler, manual shear, roll forming machine, cut-off device, hydraulic pump station and electronic control panel, widely used for roof panel mass production in customized specification and design, with the advantage of easy operation, high efficiency and precision, and stable performance.

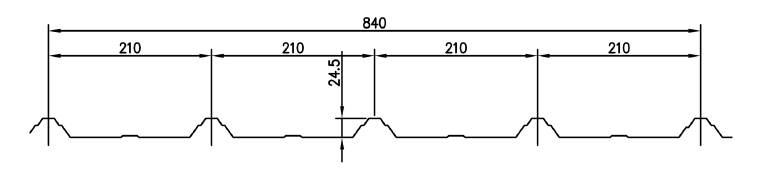

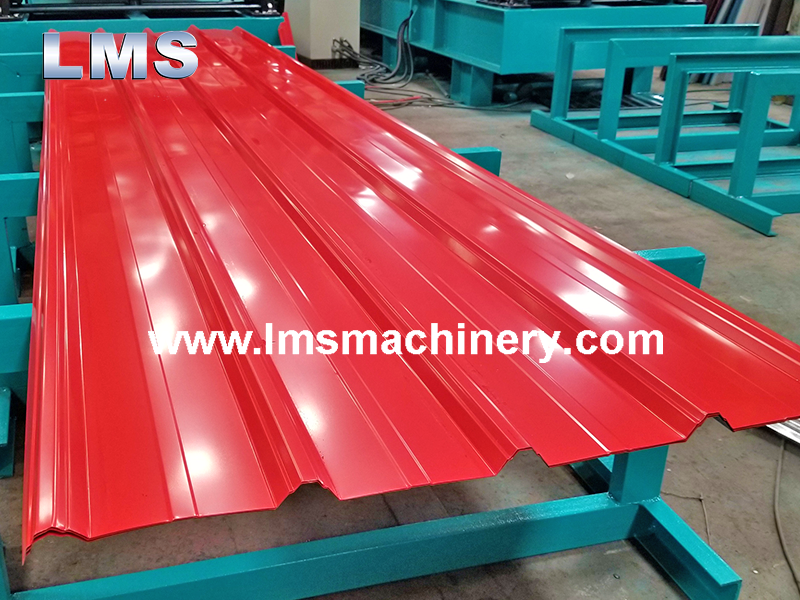

Metal Roof Panel Roll Forming Machine Profile Specification (Customized):

1. Material: Pre-painted Color Steel Sheet

2. Material Width: 1000 MM

3. Material  Thickness: 0.5 - 0.7 MM



Trapezoidal Roof Panel Roll Forming Machine Main Technical Parameter:



NO. Item Parameter
1 Forming Machine Power 7.5 KW
2 Oil Pump Power 3.7 KW
3 Oil Pump Pressure 10 Mpa
4 Diameter of Axis Ø 72
5 Quantity of Rollers 16 Groups
6 Decoiler Width 1000 MM
7 Decoiler Bearing 5000 KGS
8 Total Power 15 KW
9 Power Supplier 3 Phase 4 Lines AC 480V 60HZ



T Shape Roof Tile Forming Machine Production Flow:

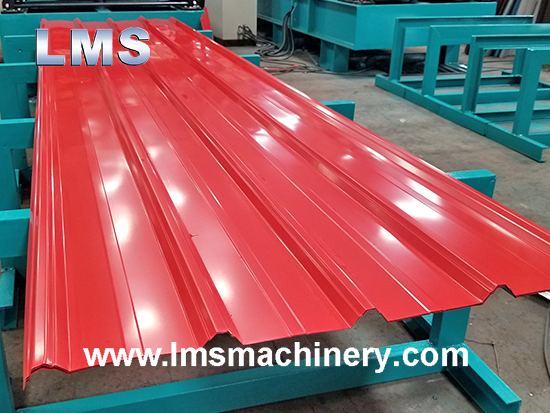

Material → Decoiling → Roll Forming → Cutting Off → Profile.



Metal Steel Roof Panel Trapezoidal Tile Roll Forming Machine Composition:



NO. Item Quantity
1 Decoiler 1 Unit

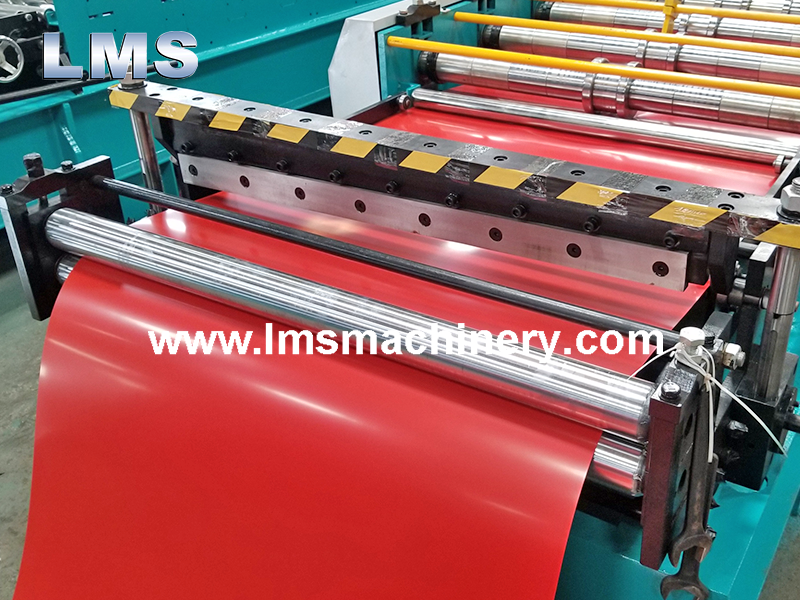

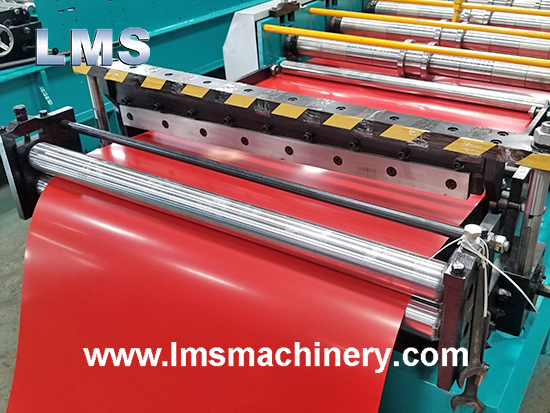

2 Manual Shear 1 Set

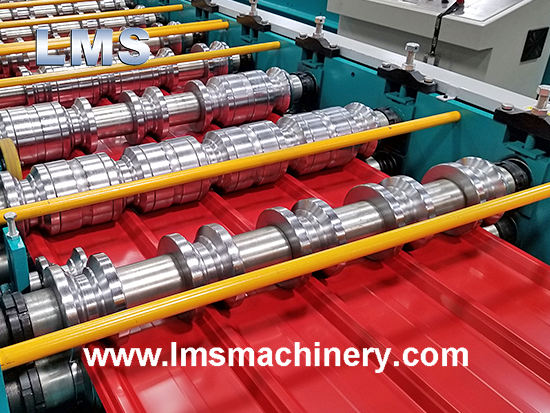

3 Roll Forming Machine 1 Set

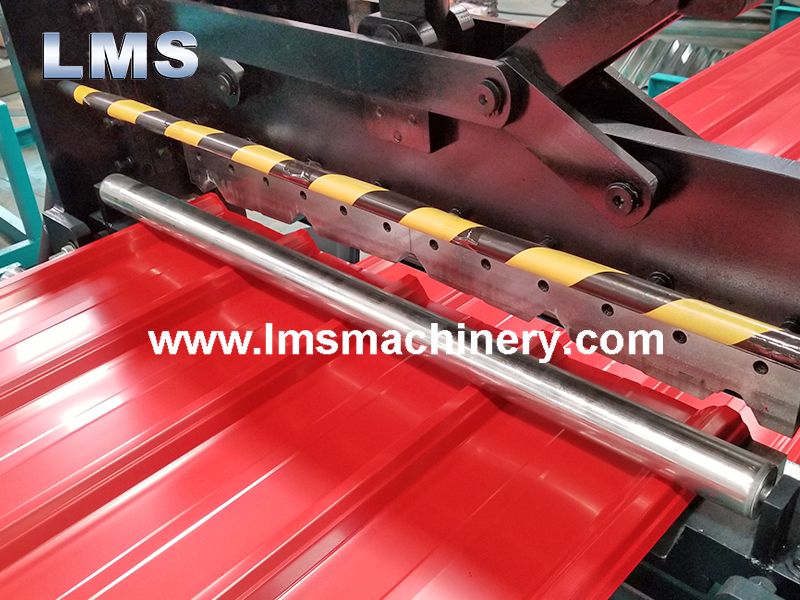

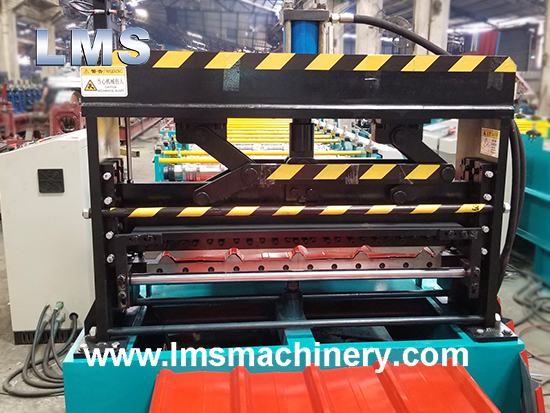

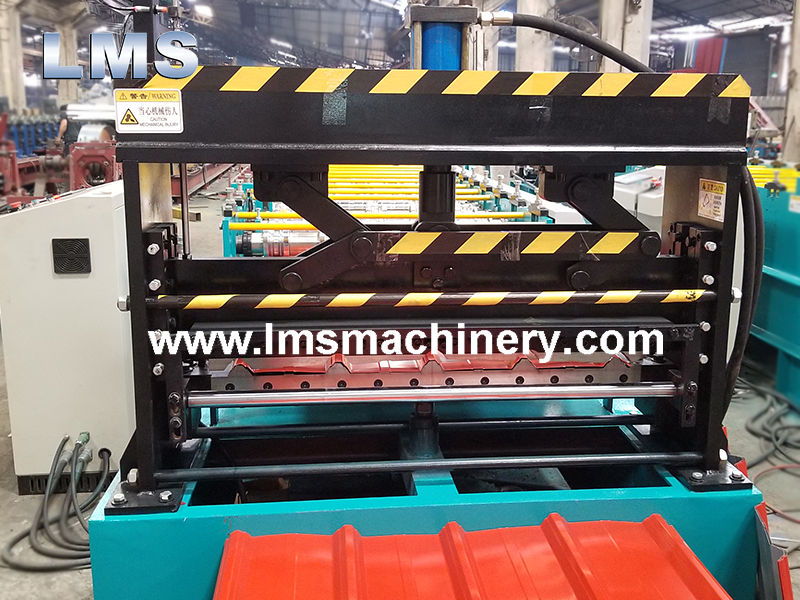

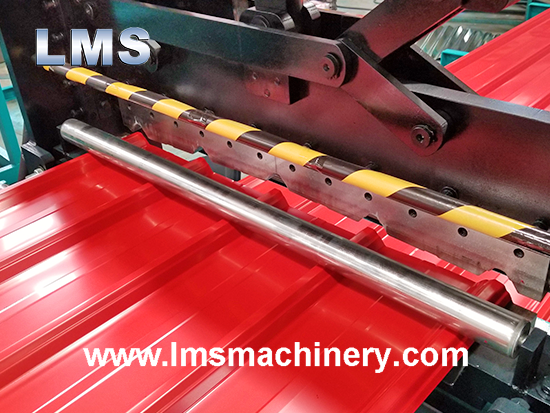

4 Cut-Off Device 1 Set
5 Hydraulic Pump Station 1 Set
6 Electronic Control Panel 1 Unit



Metal Roof Panel Roll Forming Machine



Trapezoidal Roof Panel Roll Forming Machine



T Shape Roof Tile Forming Machine



R Panel Tile Making Machine



Metal Steel Roof Panel Trapezoidal Tile Roll Forming Machine



Trapezoidal Roof Tile Roll Forming Machine
