LMS Aluminum Honeycomb Ceiling Panel Machine

LMS Aluminum Honeycomb Ceiling Panel Machine

Brand:
LMS
item no.:
Honeycomb Ceiling
Payment:
T/T
product origin:
Guangzhou, China
Color:
Customized
shipping port:
Huangpu, Guangzhou
Lead Time:
90 Days

Product Details

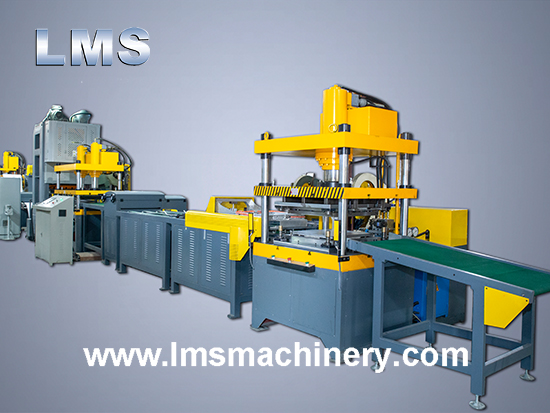

LMS Aluminum Honeycomb Ceiling Panel Machine

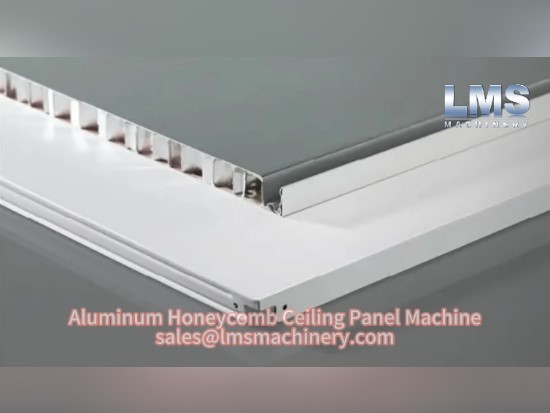

The Honeycomb Ceiling Panel Production Line caters to architects, contractors, and manufacturers in the construction industry, providing high-quality honeycomb ceiling panels for use in commercial buildings, residential spaces, hospitality venues, and other architectural projects. Honeycomb panels are popular for their lightweight nature, acoustic properties, and modern aesthetic appeal.

Features

1. Easy and quick operation — profile width and length adjustable by CNC control.

2. Proceed for thin aluminum material — surface panel 0.28mm while back panel in 0.18mm thickness.

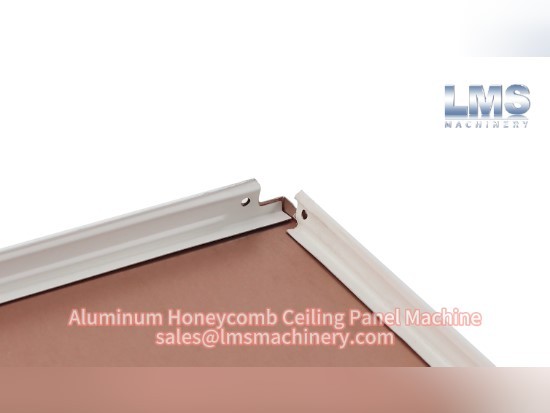

3. High precision of finished ceiling, frameless assembly of flexible sizes.

4. Great accuracy of finished products, no scratches nor cracks. Lightweight, strong loading capacity and durable, widely used as ceiling tiles or wall panels.

Production Process

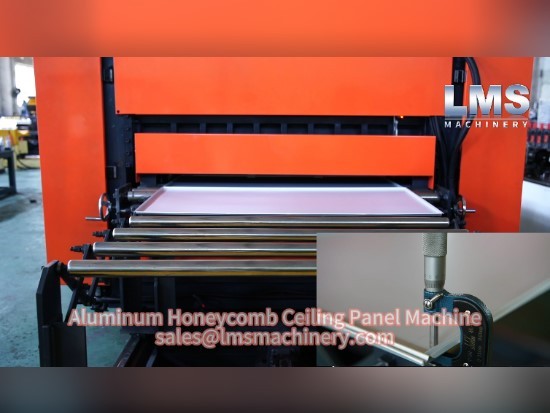

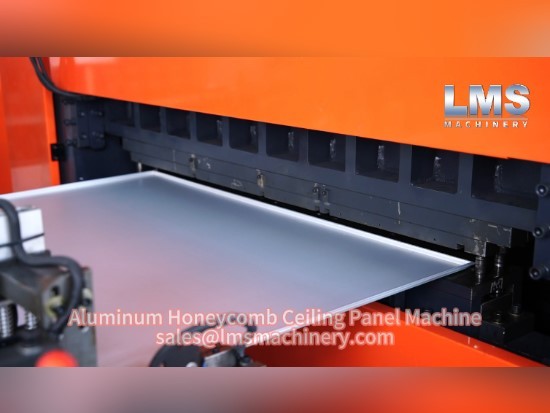

Decoiling — Leveling — Pre-Punching — Roll Forming — Auto Bending — Discharge

Parameters

1. Material Aluminum

2. Profile Size 600/900/1200*11.7mm (Customizable)

3. Material Thickness surface 0.28mm, back 0.18mm

4. Profile Accuracy ±0.2mm

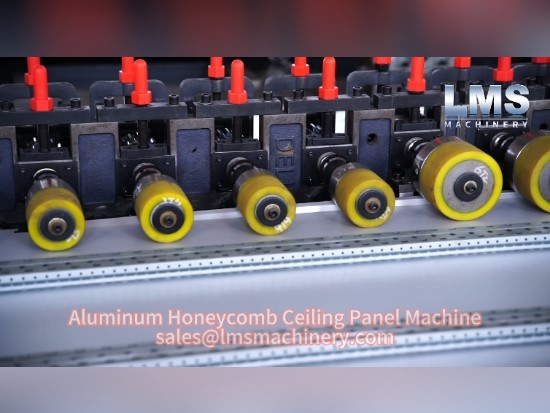

5. Forming Rollers 20

6. Width Adjustable Yes

7. Running Speed 4-6m/min

8. Height Adjustable No

Related Tags :

Aluminum Honeycomb Ceiling Panel Ceiling Panel Aluminum Ceiling Panel

A free consultation

Please send us roll forming profile with specifications, thickness and other processing requirements for our customized machine.If you need standard machine, please send us the model you want.
