LMS Telescopic Channel Ball Bearing Drawer Slides Roll Forming Production Line

LMS Telescopic Channel Ball Bearing Drawer Slide Production Line

& Semi-auto Assembling Line

The production line is available for one-step completion of slides roll forming, ball cage production, assembling, riveting and end bending with high efficiency, high accuracy, well stability and long service life.

Ball Bearing Drawer Slides Roll Forming Machine Technical Parameters:

1. Material: CR / SS Steel Coil.

2. Profile Size: 1.2x1.2x1.5 MM; 45#; Customization Available (38#/53#/78#, etc.).

3. Profile Length: 10’’, 12’’, 14”, 16”, 18”, 20”, 22”, 24” (250 - 600 MM; 8 Lengths).

4. Productivity: 3500 Pairs / 8 Hours.

5. Plant Area Required: 200 M² (Minimum)

6. Labor Required: 7-20 Workers (Max.); Depends On The Production Demands.

Telescopic Drawer Slide Channel Machine Production Process:

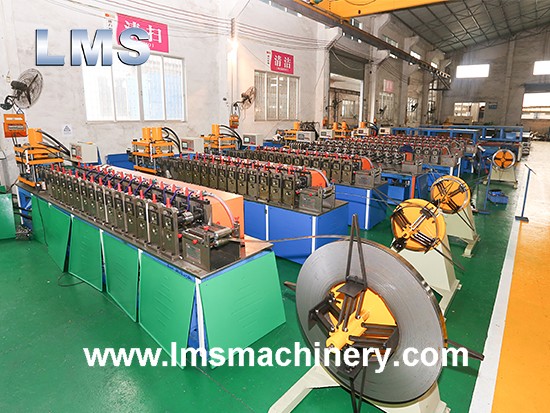

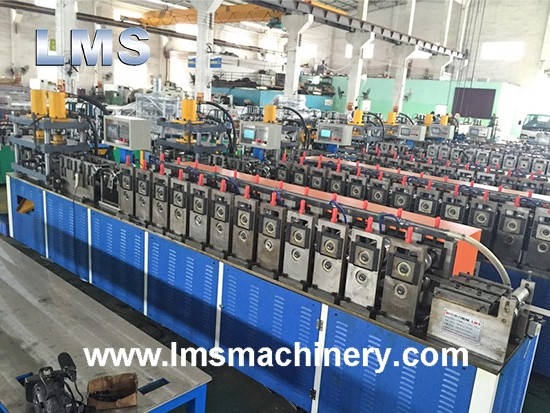

Step 1: Outer / Middle / Inner Slides Roll Forming (Material Coil – Decoiling – Feeding – Roll Forming – Straightening – Punching & Cut-Off).

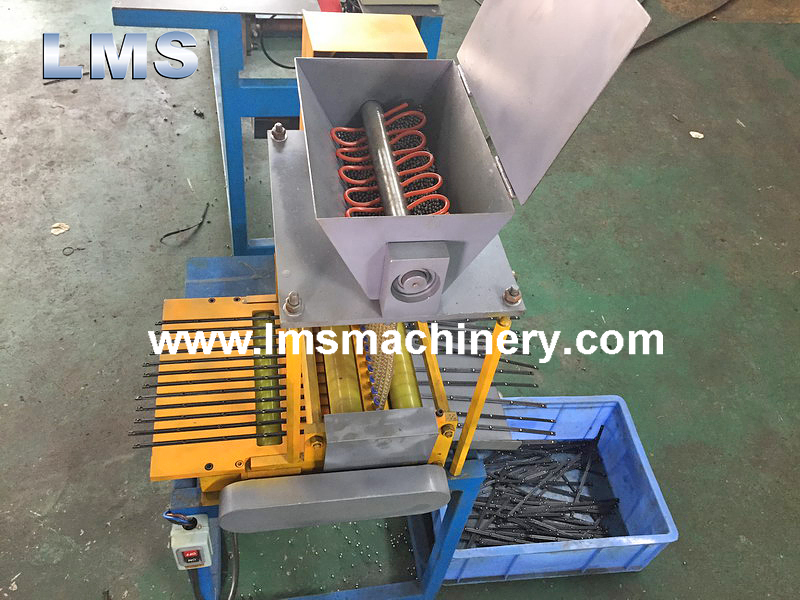

Step 2: Ball Cage Production (Motor Decoiling - Feeding - Punching & Cutting).

Step 3: Auto Ball Assembling (Middle Slide, Ball Cage & Steel Balls; And Adding Grease).

Step 4: Manually Assemble Middle Slide Stopper.

Step 5: Outer Slide Oiling (Adding Lubricant Grease).

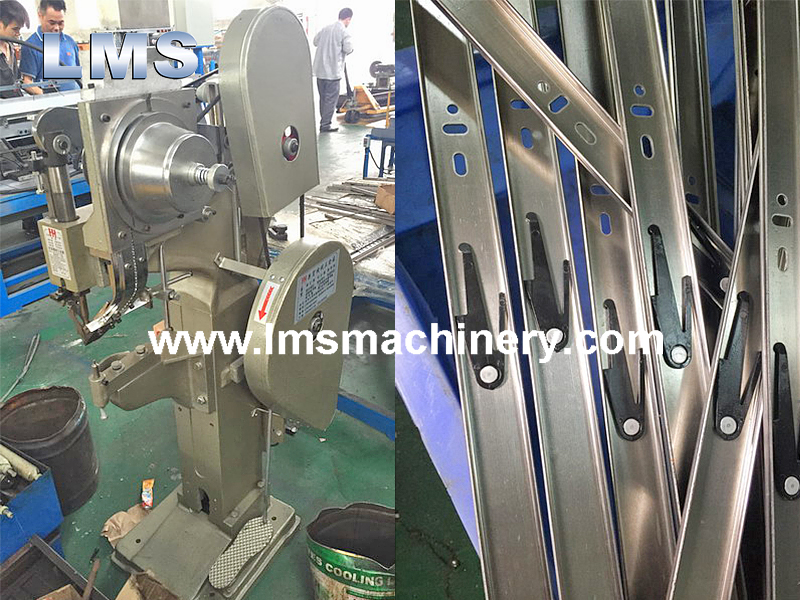

Step 6: Inner Slide Riveting (Inner Slide & Rivet & Plastic Lock).

Step 7: Ball Pressing (Plastic Strip & Steel Balls).

Step 8: Manual Assembling (Outer & Middle & Inner Slides & Plastic Strips).

Step 9: QC Adjusting (Check Slide’s Smoothness For Loosing Or Tightening).

Step 10: Outer Slide End Bending & Fit End Rubber.

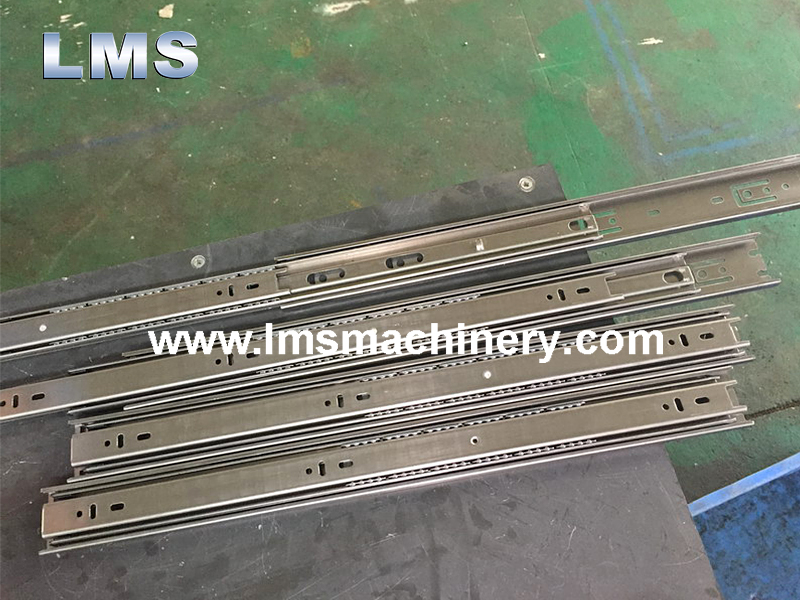

Step 11: Finished Drawer Slides For Packing.

Telescopic Channel Manufacturing Machine Compositions:

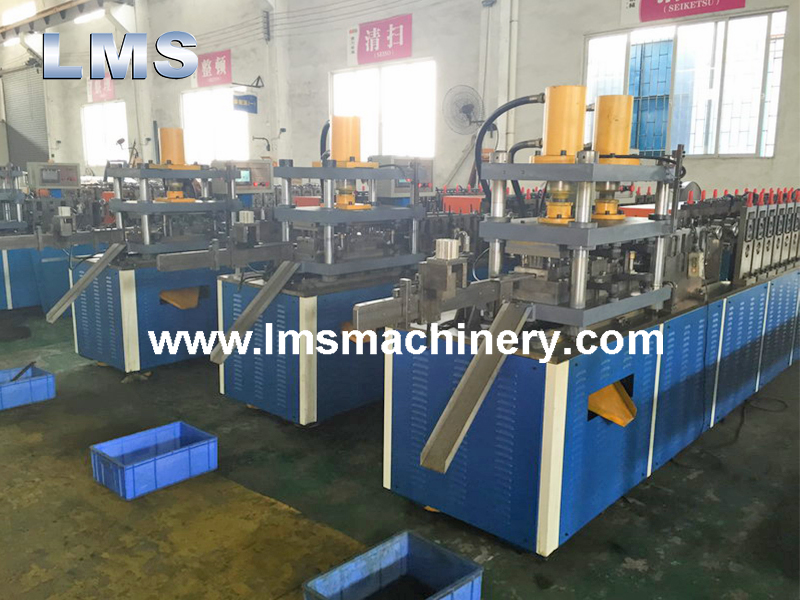

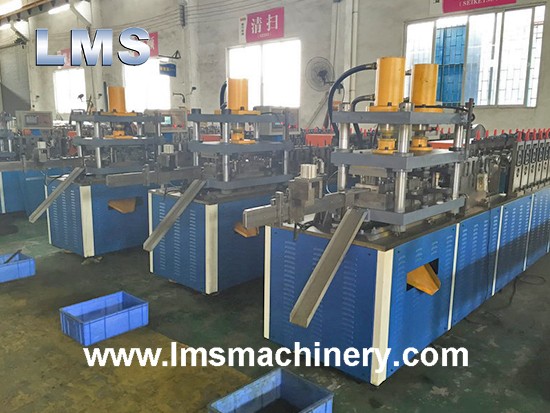

1. Roll Forming Machine, 3 Units

2. Ball Cage Production Line, 1 Unit

3. Auto Ball Assembling Device, 1 Set

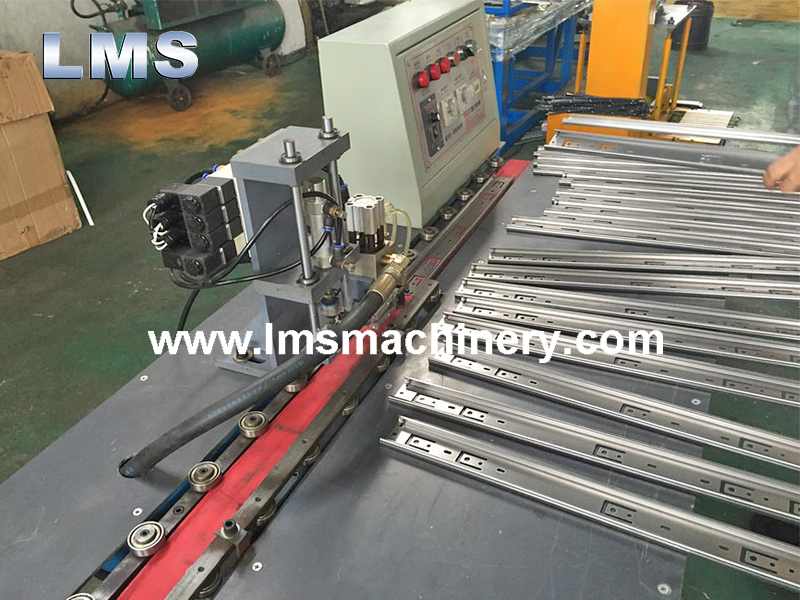

4. Outer Slide Oiling Device, 1 Set

5. Ball Pressing Machine, 1 Set

6. Riveting Machine, 1 Set

7. End Bending Power Press, 1 Set

8. Hand Adjuster, 3 Sets

There are full auto drawer slide machine production line as well.
