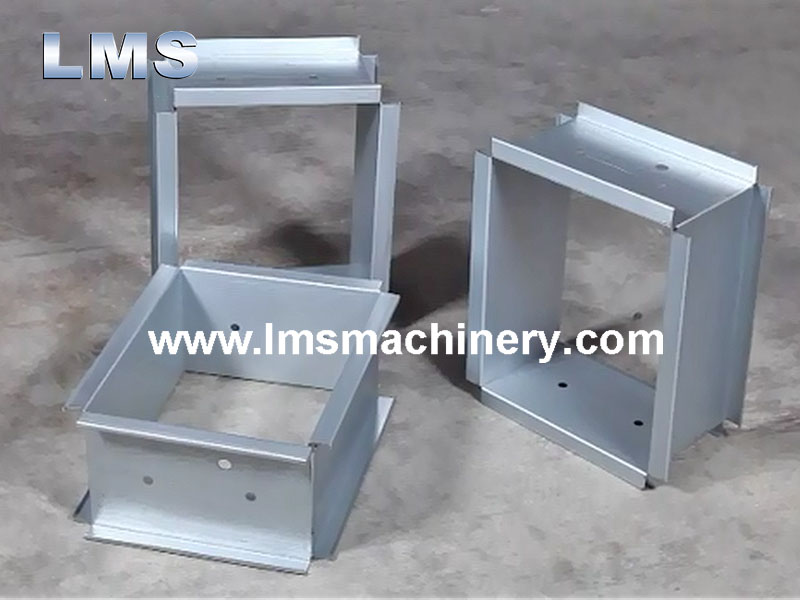

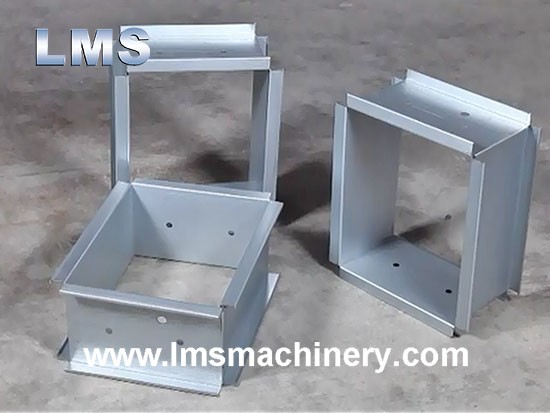

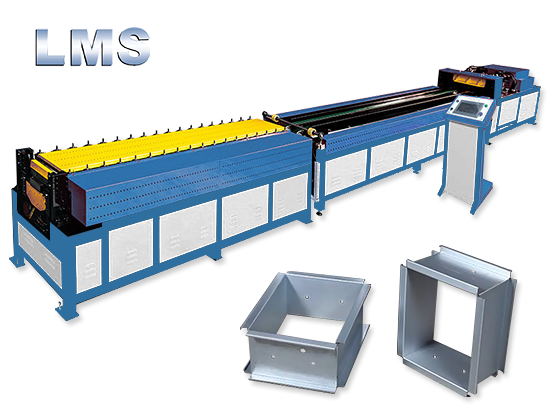

LMS Fire Damper Outer Frame Full Automatic Production Line

LMS Fire Damper Outer Frame Full Automatic Production Line

Fire Damper Frame Roll Forming Machine Main Features:

1. Fast speed: save labor, can produce 300 – 400 frame 8 hours per shift by only 1-2 people.

2. High precision: hole distance error ± 0.3 mm, length error ± 0.3 mm, diagonal error ± 1 mm.

3. Save material: the process design of cutting first and then forming ensures the whole process from debugging to production without waste.

4. High efficiency: continuous order mode, customers can input multiple order data at one time for continuous production.

5. Good forming effect: specially designed rollers to ensure less abrasion to zinc layer after galvanized sheet is formed.

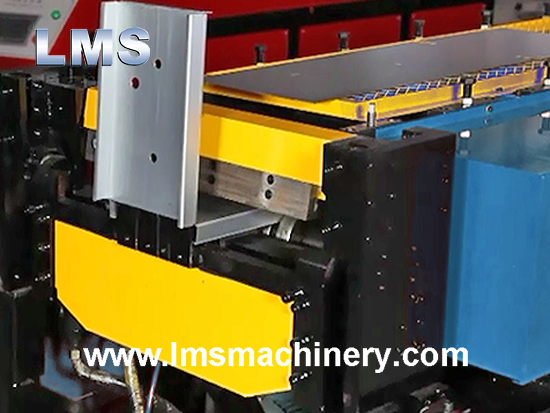

6. Small bending R: specially designed bending tool as well as pre-punching indentation at the small edge, two processes to ensure that the bending angle is small.

7. Good stability: electrical components adopt international and domestic top brands, the main mechanical parts through careful design and fatigue test, to ensure the stable production of production line in high-intensity and high-load working environment.

8. Simple operation: the whole line is automatic, assembly line production, computer controlled and easy to learn.

9. Cover a small area: the total length of the line is only 15 meters.

Fire Damper Frame Production Line Main Technical Parameters:

Automatic Fire Damper Frame Roll Forming Machine Production Process:

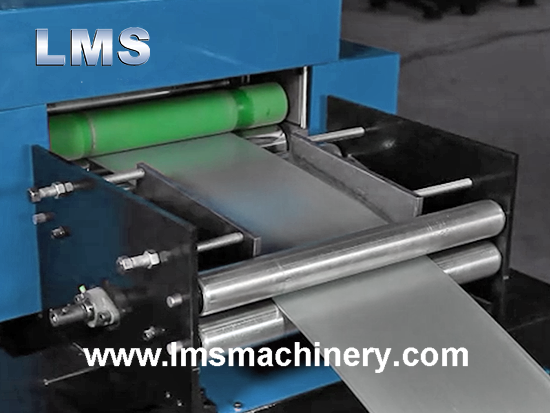

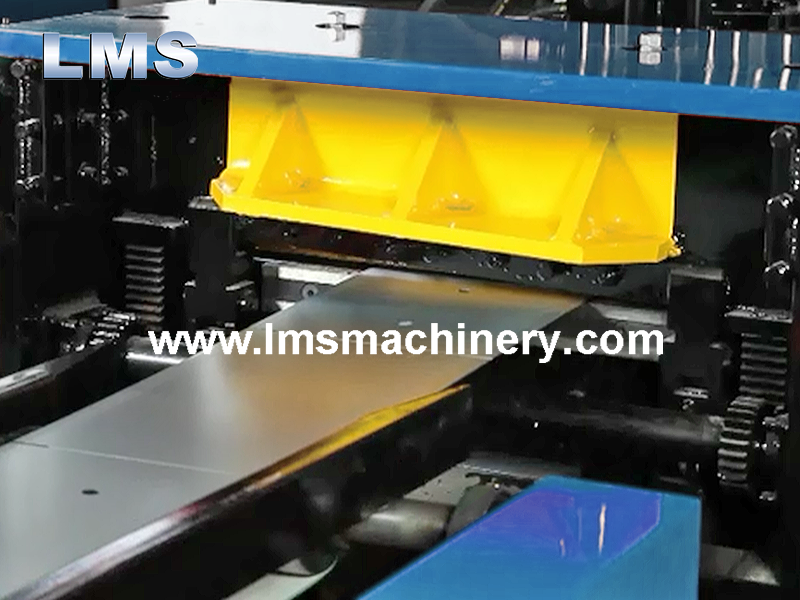

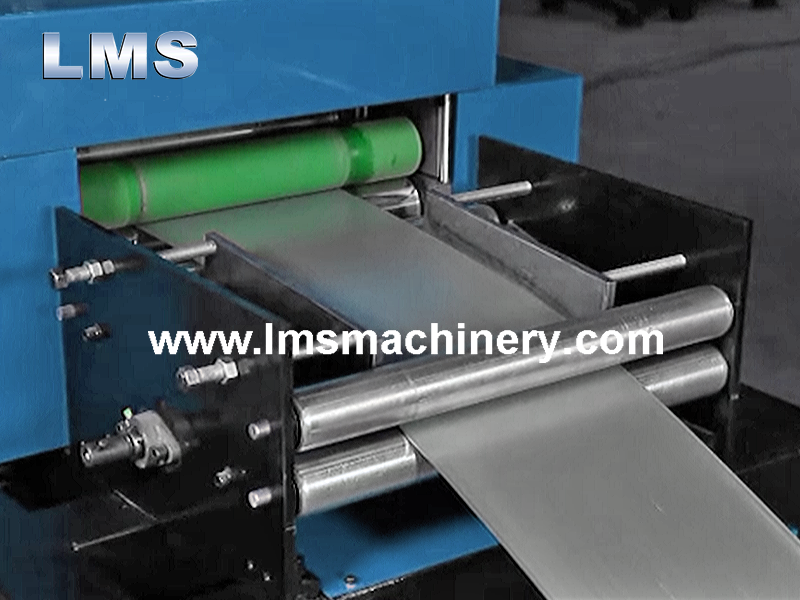

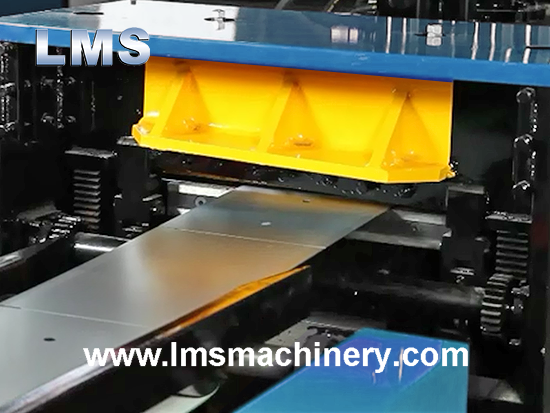

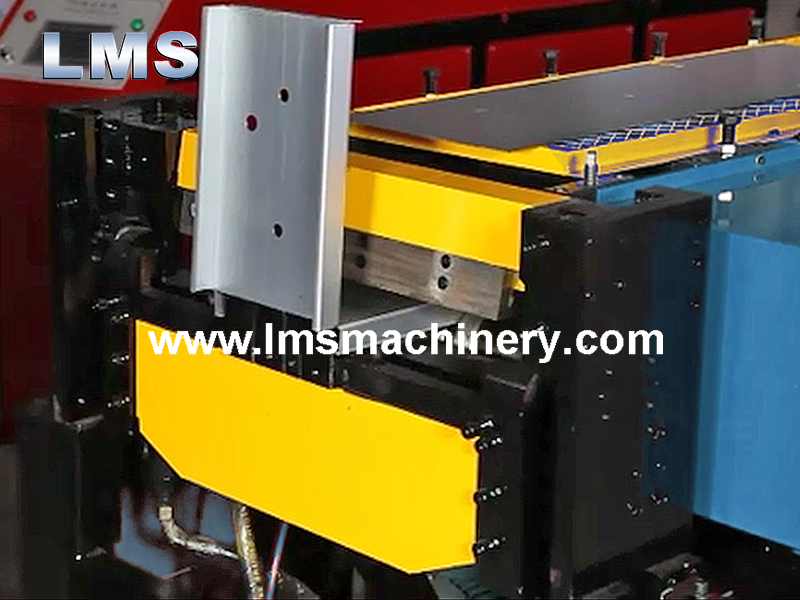

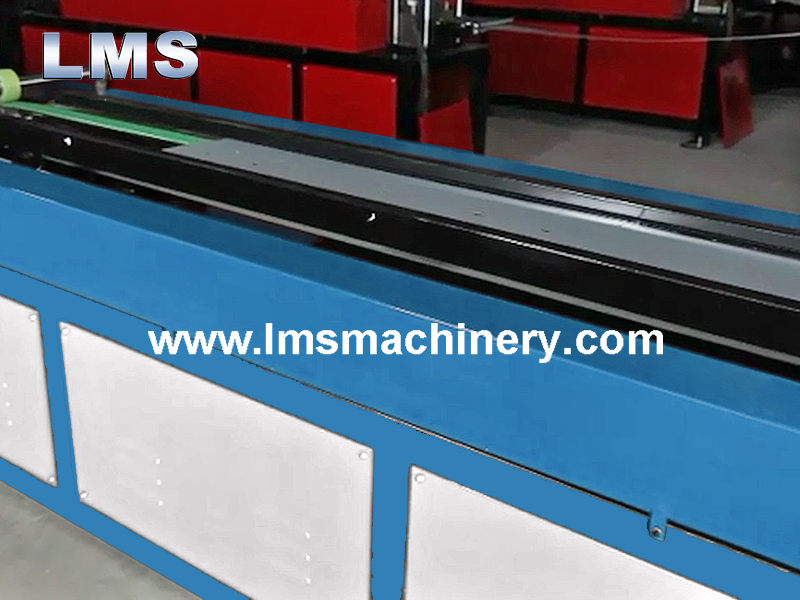

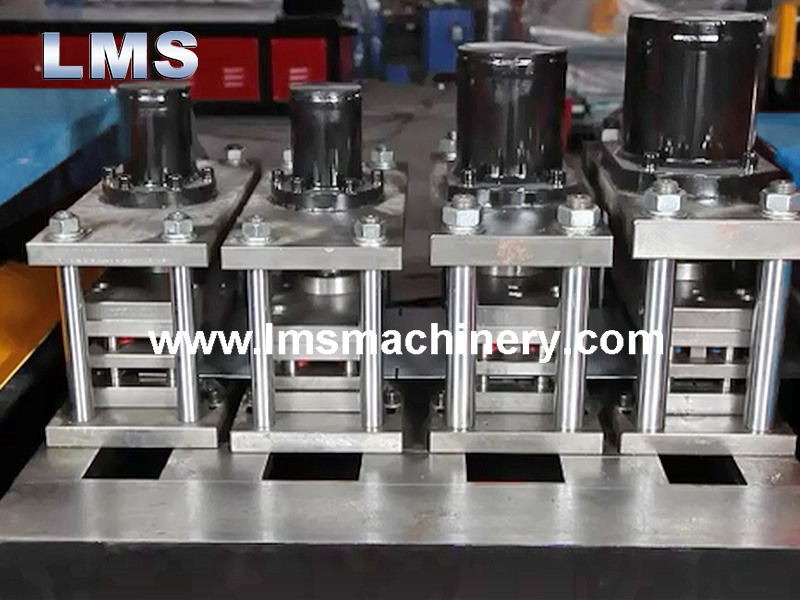

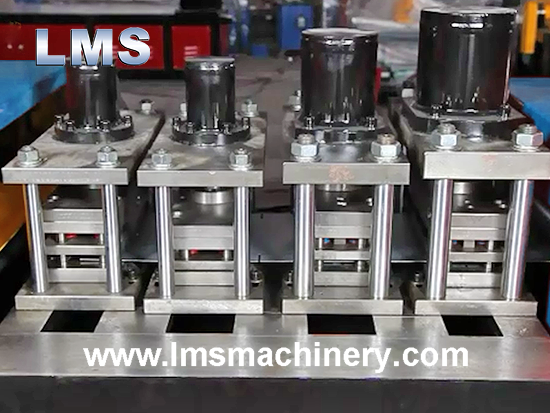

Decoiling → Material Guiding → Leveling → Edges Punching → Spindle Hole Punching (∅ 16 mm) → Temperature-Sensing Hole Punching (∅ 20 mm) → Hydraulic Cutting Off → Conveying → TDF Roll Forming → Hydraulic Automatic Bending → Manual Discharging.

Hydraulic Fire Damper Frame Roll Forming Machine Composition:
