LMS Upstroke Press Brake Bending Machine


LMS Upstroke Press Brake Bending Machine

LMS Upstroke Press Brake Bending Machine

  • Brand:

    LMS
  • item no.:

    Press Brake
  • Payment:

    T/T
  • product origin:

    Guangdong, China
  • Color:

    Customized
  • shipping port:

    Huangpu, China
  • Lead Time:

    90 Days
Contact Us
Product Details

LMS Upstroke Press Brake Bending Machine



Upstroke Press Brake Bending Machine is specifically developed for thin plates bending, with firm frame and self-developed numerical control bending system, greatly improves the processing accuracy and efficiency. And flexible automated bending is optional, which can save labor cost and improve production efficiency and quality.

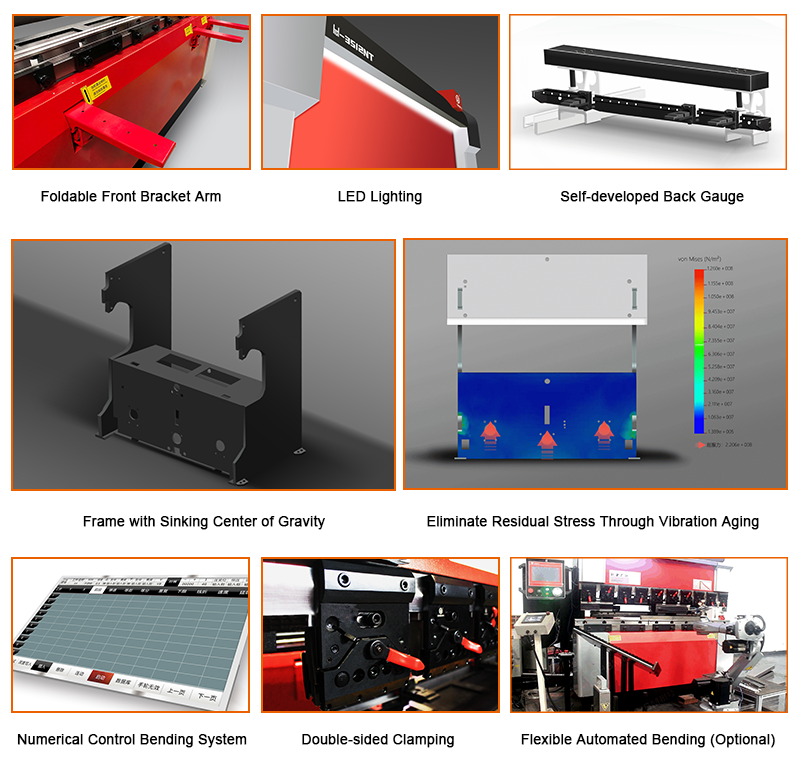

Upstroke Bending Machine Machine Features:

Upstroke Bending Machine, Press Brake, Bending Machine, Press Brake Machine, Metal Sheet Bender, Upstroke Press Brake



Upstroke Press Brake Main Parameters:

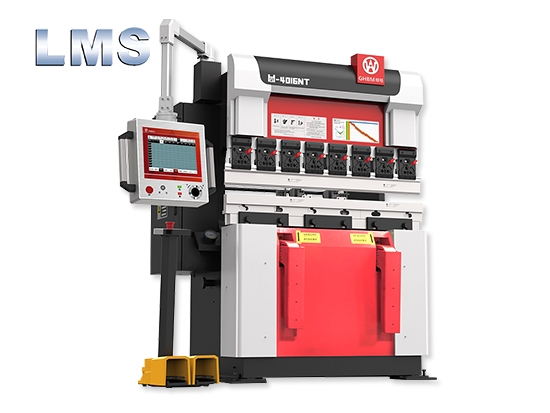

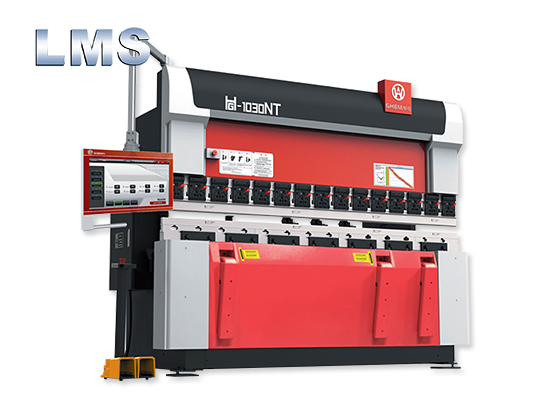

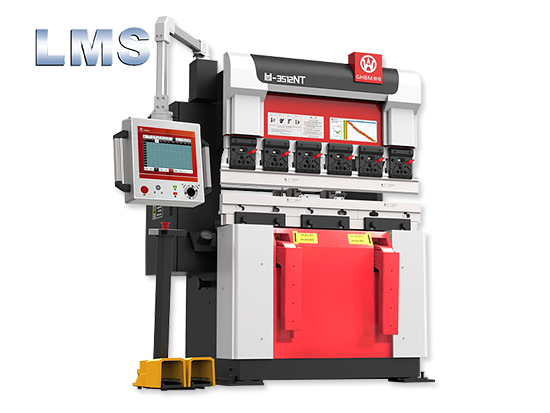

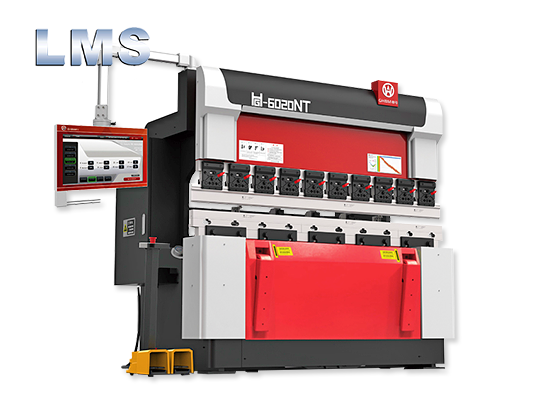

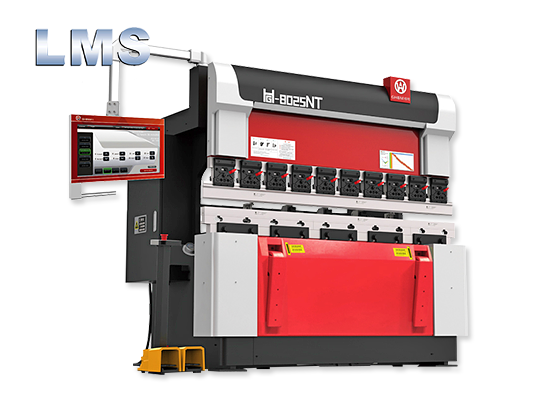

Model GH-3512NT GH-4016NT GH-6020NT GH-8025NT GH-1030NT
Nominal Pressure 35 KN 400 KN 600 KN 800 KN 1000 KN
Bending Length 1200 mm 1600 mm 2000 mm 2500 mm 3000 mm
Oil Cylinder Travel 100 mm 100 mm 100 mm 100 mm 100 mm
Oil Cylinder Quantity 1 1 3 3 3
Rising Speed 46 mm/s 46 mm/s 52 mm/s 52 mm/s 58 mm/s
Bending Speed 10 mm/s 10 mm/s 10 mm/s 10 mm/s 10 mm/s
Descent Speed 42 mm/s 42 mm/s 46 mm/s 46 mm/s 52 mm/s
Oil Tank Capacity 35 L 35 L 60 L 60 L 65 L
Main Motor Power 4 KW 4 KW 5.5 KW 5.5 KW 7.5 KW
Throat Depth 300 mm 300 mm 400 mm 400 mm 400 mm
External Length of Machine 1400 mm 1750 mm 2200 mm 2700 mm 3200 mm
External Width of Machine 1150 mm 1150 mm 1250 mm 1200 mm 1400 mm
Total Height of Machine 2000 mm 2050 mm 2150 mm 2150 mm 2450 mm
Machine Weight 1800 KGS 2500 KGS 3500 KGS 4200 KGS 6400 KGS
Column Distance 1020 mm 1220 mm 1700 mm 2200 mm 2550 mm
Workbench Width 60 mm 60 mm 60 mm 60 mm 90 mm
Max. Open Height 400 mm 400 mm 400 mm 400 mm 400 mm
Open Height (Excluding Clamp) 280 mm 280 mm 280 mm 280 mm 280 mm
Max. Travel of Back Gauge (X Axis) 550 mm 550 mm 550 mm 550 mm 550 mm
