LMS Exterior Wall Mounting Profile for Side Tile Roll Forming Machine Production Line

New Products

LMS Exterior Wall Mounting Profile for Side Tile Roll Forming Machine Production Line
LMS Exterior Wall Mounting Profile for Side Tile Roll Forming Machine Production Line LMS Exterior Wall Mounting Profile for Side Tile Roll Forming Machine Production Line LMS Exterior Wall Mounting Profile for Side Tile Roll Forming Machine Production Line LMS Exterior Wall Mounting Profile for Side Tile Roll Forming Machine Production Line LMS Exterior Wall Mounting Profile for Side Tile Roll Forming Machine Production Line LMS Exterior Wall Mounting Profile for Side Tile Roll Forming Machine Production Line

LMS Exterior Wall Mounting Profile for Side Tile Roll Forming Machine Production Line

  • Brand:

    LMS

  • item no.:

    Exterior Wall Mounting Profile

  • Payment:

    T/T

  • product origin:

    Guangzhou, China

  • Color:

    Customized

  • shipping port:

    Huangpu, Guangzhou

  • Lead Time:

    90 Days
Contact Us
Product Details

LMS Exterior Wall Mounting Profile for Side Tile Roll Forming Machine Production Line

Features

1. Convenient and easy operation.

2. High accuracy of finished products, no scratches or cracks.

3. High production efficiency, punching, forming and cutting can be completed at one time.



machine video:

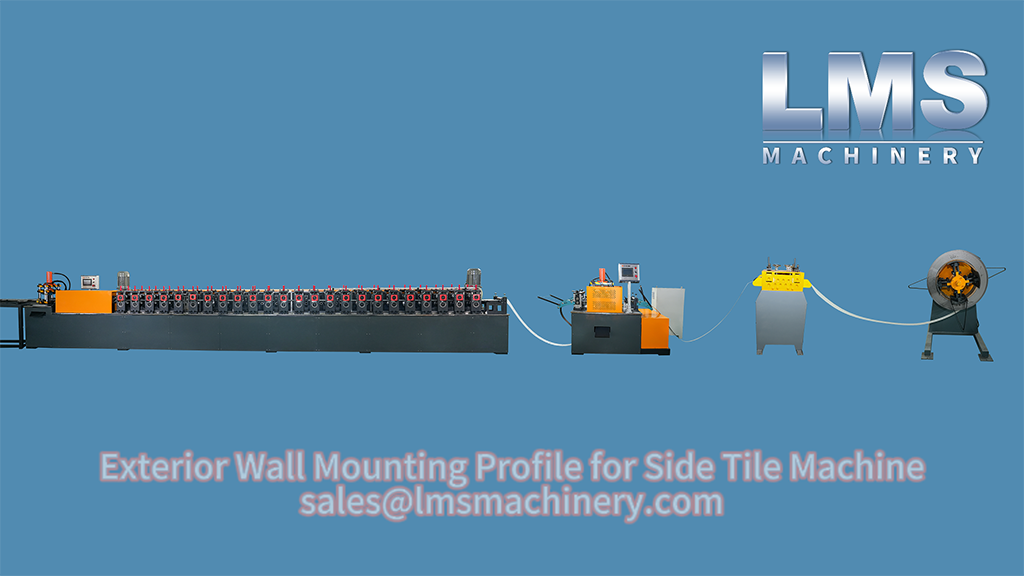

Production Process

   Decoiling — Leveling — Pre-Punching — Roll Forming — Straightening — Cutting — Discharge



Parameters

1. Material  PPGI steel

2. Profile Size  38.44*14.82mm (Customizable)

3. Material Thickness  0.55-0.70 mm

4. Profile Accuracy  ±0.3mm

5. Forming Rollers  24

6. Width Adjustable  No

7. Running Speed  5-9m/min

8. Height Adjustable  No












Related Tags :

Exterior Wall Mounting Profile Side Tile Roll Forming Machine Production Line Exterior Wall Mounting Profile for Side Tile Machine
    A free consultation

    Please send us roll forming profile with specifications, thickness and other processing requirements for our customized machine.If you need standard machine, please send us the model you want.

    Thank you for leaving the messages to our LMS team, we would reply you as soon as we can.
