LMS Metal Trapezoidal Roof Roll Forming Machine


LMS Metal Trapezoidal Roof Roll Forming Machine

LMS Metal Trapezoidal Roof Roll Forming Machine

  • Brand:

    LMS
  • item no.:

    Metal Roof Roll Form
  • Payment:

    T/T
  • product origin:

    Guangdong.China
  • Color:

    Customized
  • shipping port:

    HuangPu
  • Lead Time:

    In Stock
Contact Us
Product Details

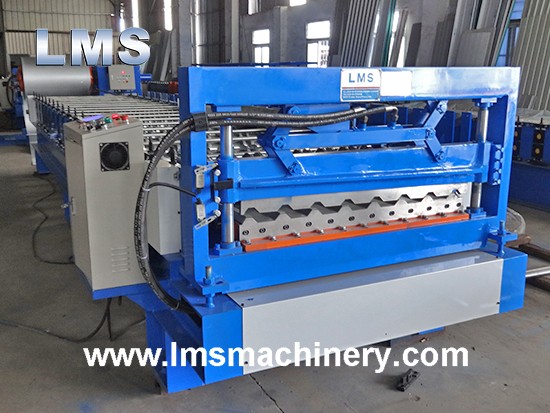

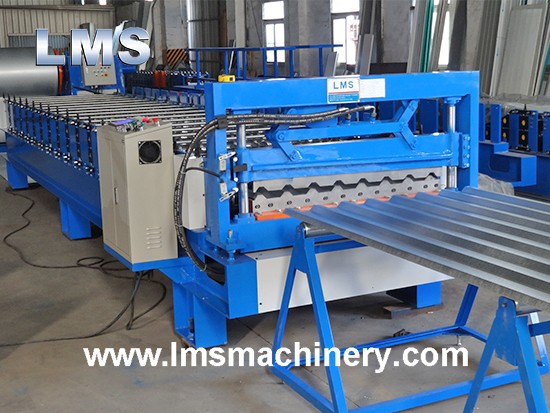

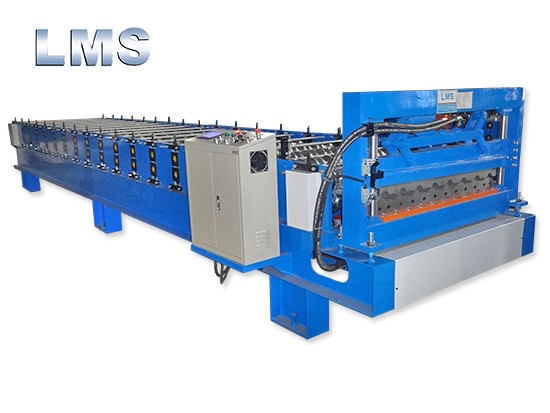

LMS Metal Trapezoidal Roof Roll Forming Machine



LMS Metal Trapezoidal Roof Roll Forming Machine is equipped with optional manual decoiler or hydraulic decoiler with brake, and manual roller shearer before roll forming for production. Length control is set on touchable screen, material is calculated by PLC for different thickness production.



Trapezoidal Steel Roof Sheet Roller Machine Technical Parameters:

1. Suitable Material: PPGI Coil / Embossed Aluminium Coil

2. Material Width: 914 / 1000 / 1220 / 1250 MM

3. Material Thickness: 0.40 - 0.80 MM

4. Roll Forming Speed: 0 - 20 Meters / Minute



Metal Roof Panel Roll Forming Machine Production Process:

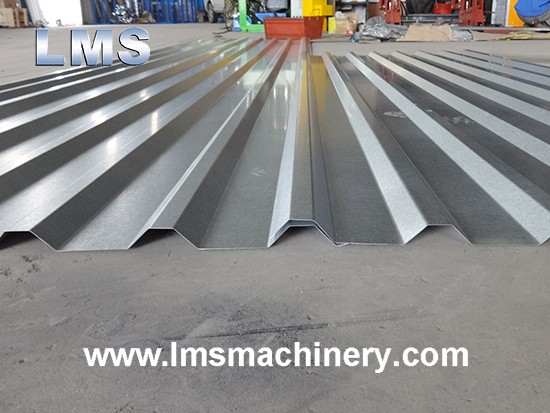

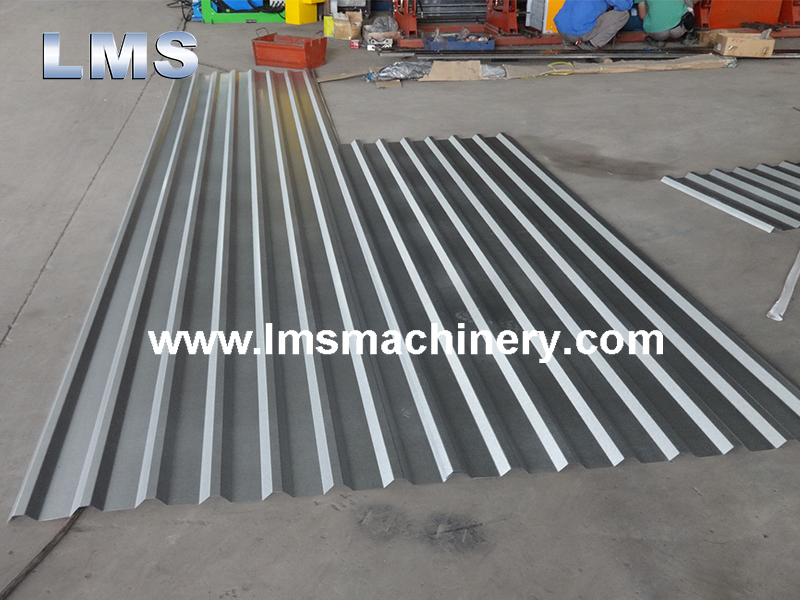

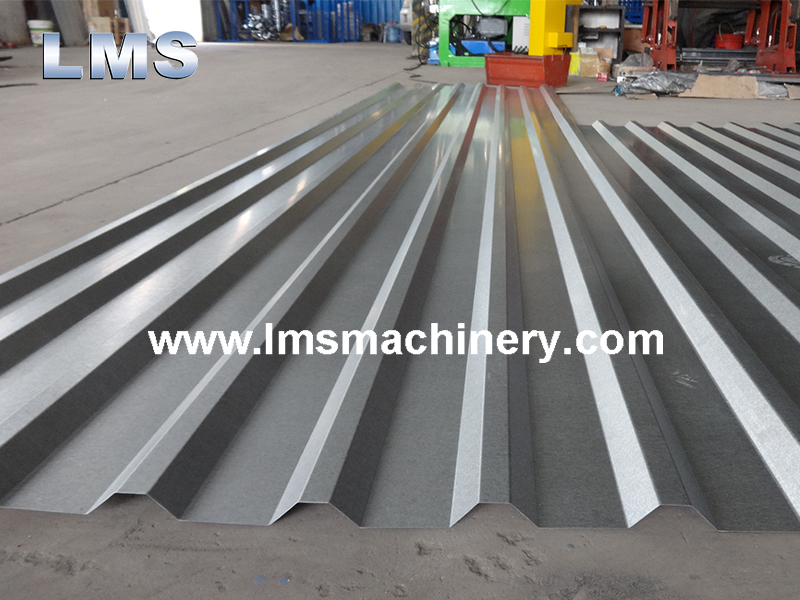

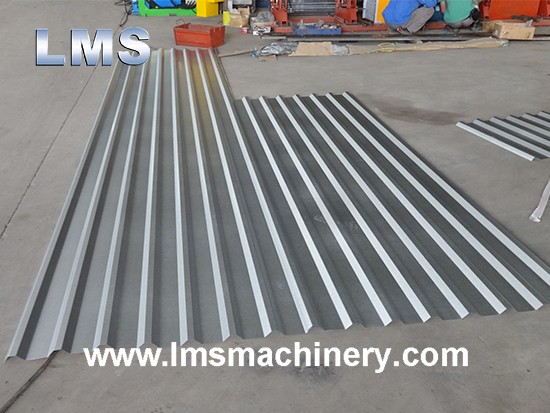

Decoiling - Manual Shearing - Roll Forming - Cut Off After Sizing - Final Roof Panel



Trapezoidal Roof Panel Roll Forming Machine Composition:

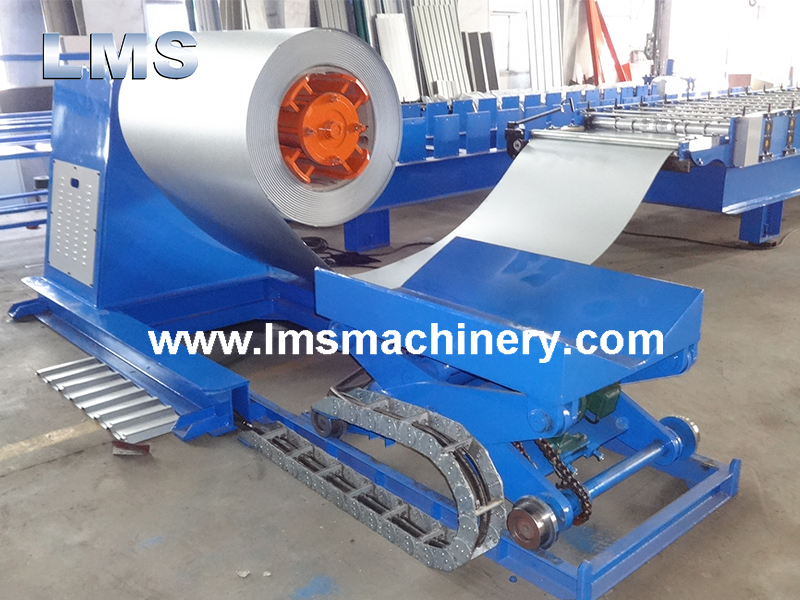

1. 8 -10 Tons Hydraulic Decoiler:

(1) Width: 1250 MM

(2) Inner Diameter: Ø 500 - 600 MM

(3) Power: 2.0 KW



2. Manual Shearing Device Before Material Feeding:

PLC Calculating And Controlling, Material Saving, No Waste; Roller Cutter.

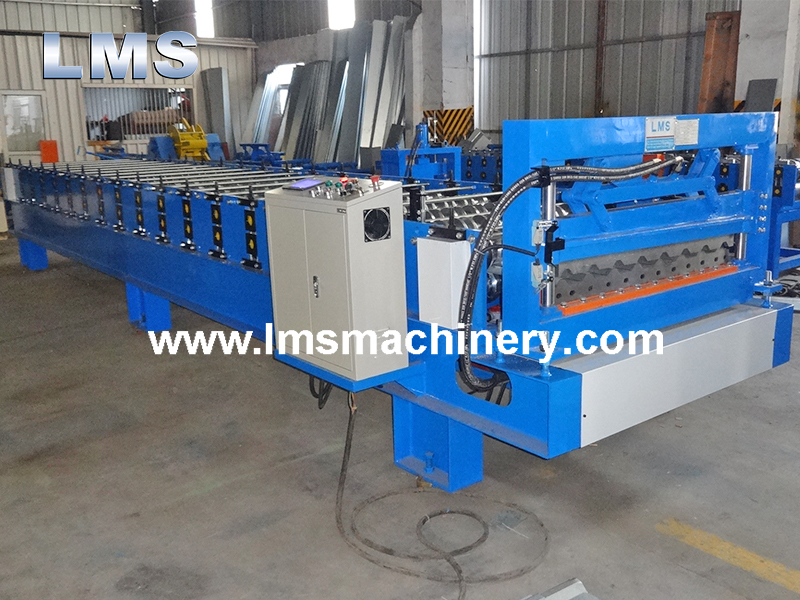

3. Roll Forming Machine:

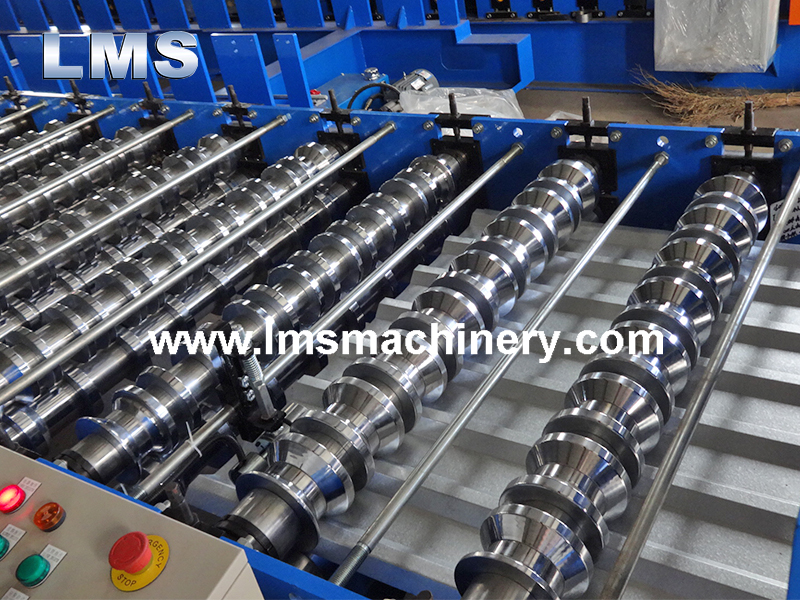

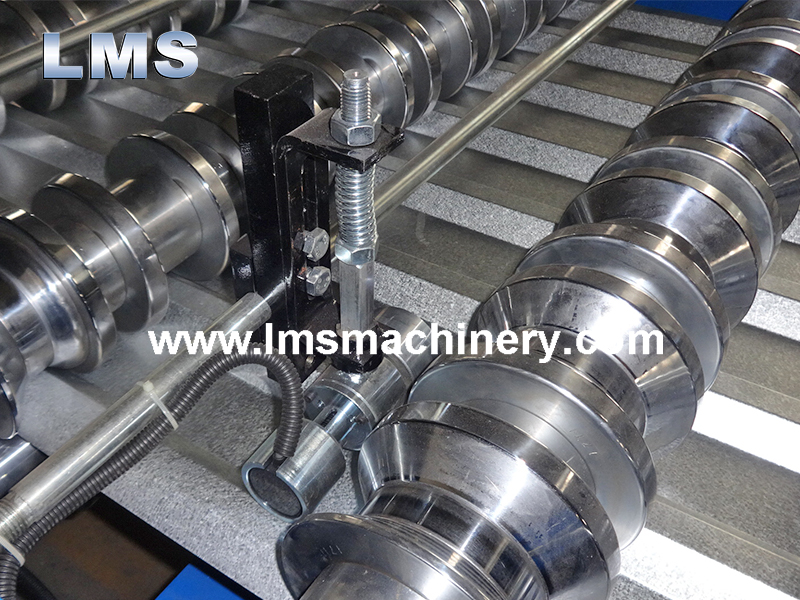

(1) Roller Station: 16 - 24 Nos Of Rollers For Roll Forming, Ensuring Profile Strength.

(2) Main Shaft Diameter: Ø 80 MM.

(3) Machine Sidewall: 22 MM Thick Refine Steel Plates.

(4) Roll Forming Speed: 0 - 20 Meters / Minute.

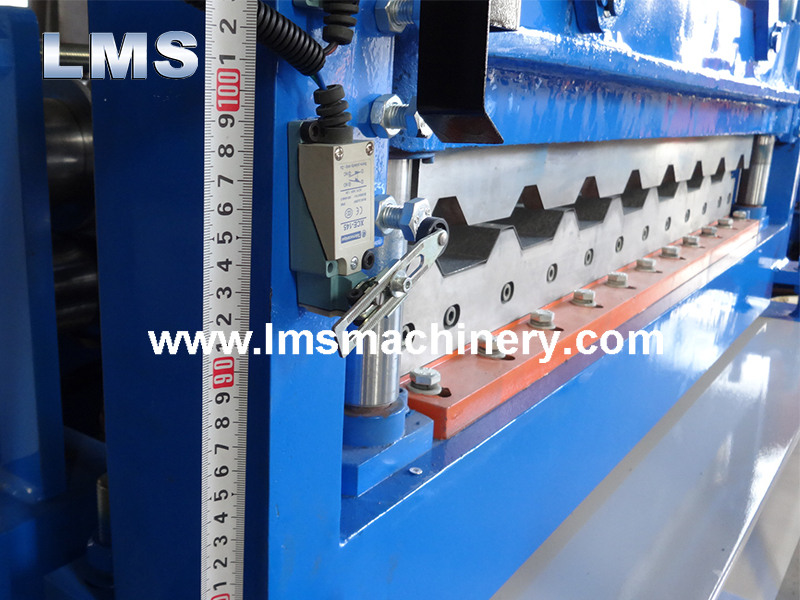

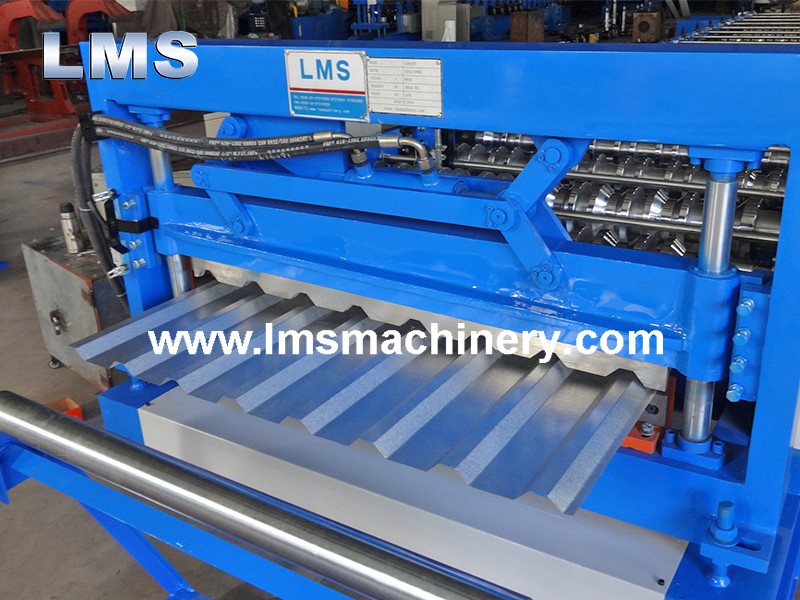

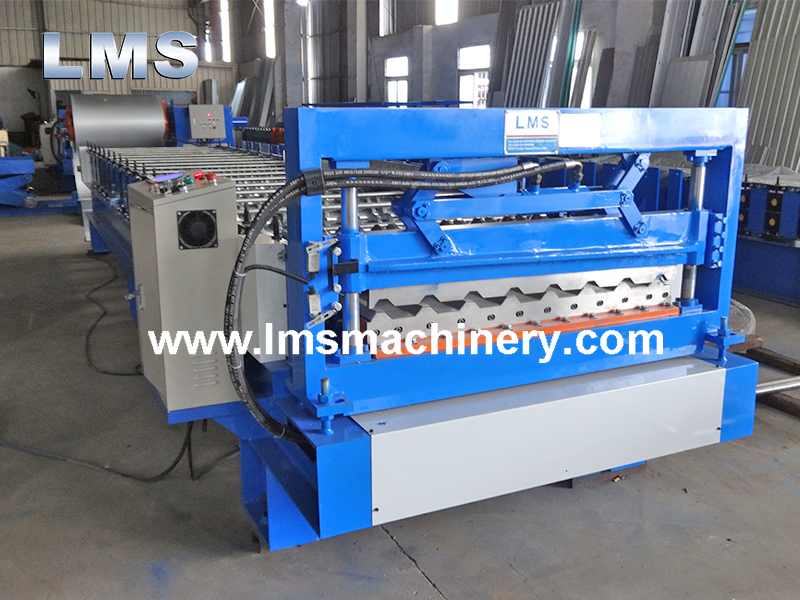

4. Hydraulic Cutting-Off:

(1) Blade Material: Gr12 Steel.

(2) Working Table Pressure: 20 Tons; With Fan-Cooler.

(3) Power: 4 KW.

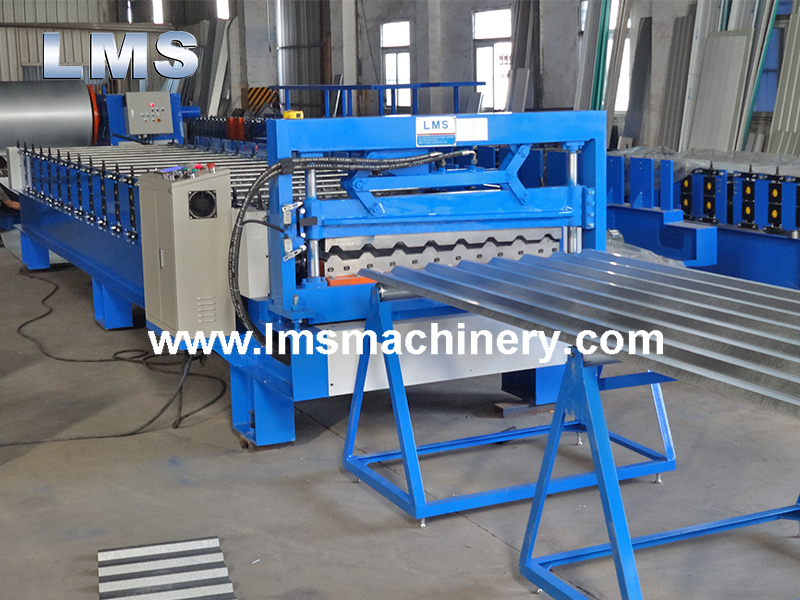

5. Simple Run-Out Table:

(1) Number: 4 Pieces

(2) Material: In 8# Channel Steel.

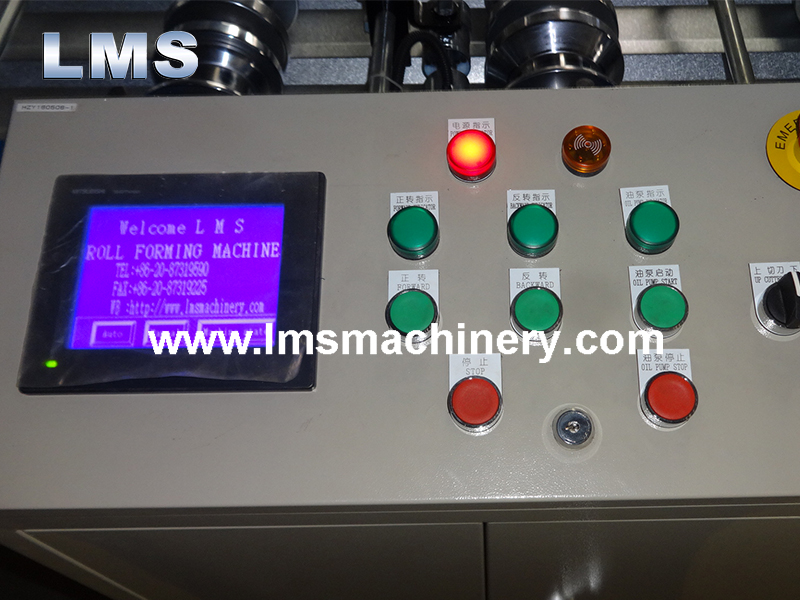

6. PLC Controller:

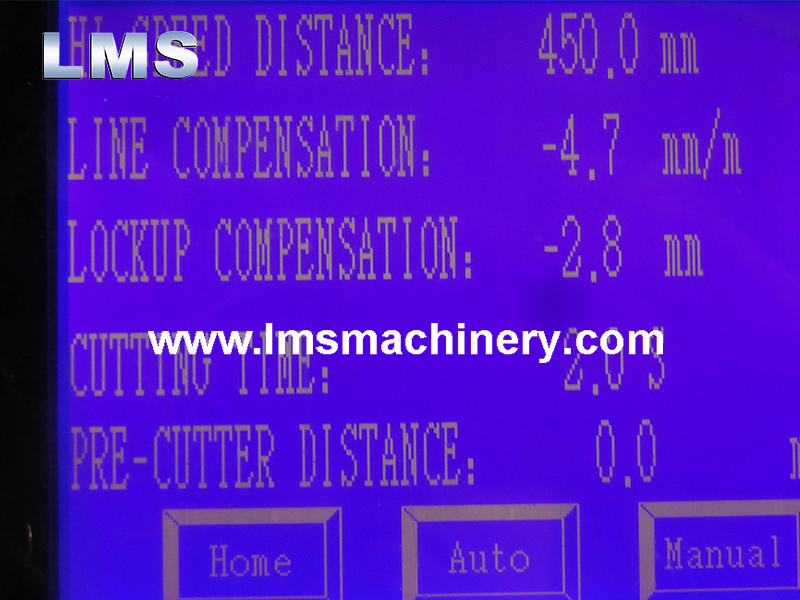

Mitsubishi PLC And 5.7" Mitsubishi Touchable Screen For Data Processing And Setting;

Japanese Frequency Converter;

Schneider Electronic Components.



Trapezoidal Roof Sheet Roll Forming Machine



T Shape Roof Machine



Roof Tile Roll Forming Machine



Trapezoidal Steel Roof Sheet Roller Machine



Metal Roof Panel Roll Forming Machine



Trapezoidal Roof Panel Roll Forming Machine



Trapezoidal Roof Sheet Roll Forming Machine



T Shape Roof Machine



Roof Tile Roll Forming Machine



Trapezoidal Steel Roof Sheet Roller Machine



Metal Roof Panel Roll Forming Machine



Trapezoidal Roof Panel Roll Forming Machine
