LMS Wall Panel Roll Forming Machine

Categories


LMS Wall Panel Roll Forming Machine

LMS Wall Panel Roll Forming Machine

  • Brand:

    LMS
  • item no.:

    Wall Panel Roll Form
  • Payment:

    T/T
  • product origin:

    China
  • Color:

    Customize
  • shipping port:

    HuangPu
  • Lead Time:

    90 Days
Contact Us
Product Details

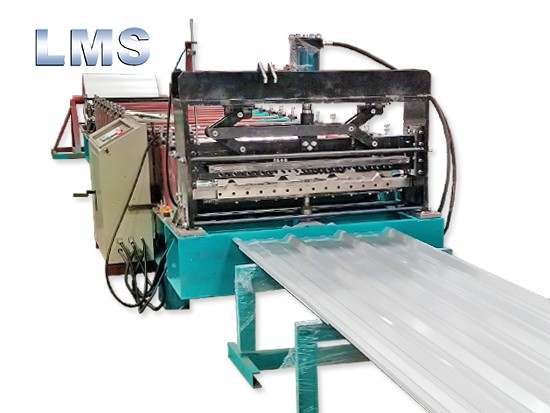

LMS Wall Panel Roll Forming Machine


FEATURES:
1.Manual Decoiler or Hydraulic Decoiler with Break is equipped optional for roll forming production.
2.Manual Roller Shearer before Roll Forming is the essential for roll forming production, and length control is set on touchable screen, so that material is calculated by PLC for each material thickness and color production.

3.Refine steel plates in 22 mm as Sidewall of machine is used.

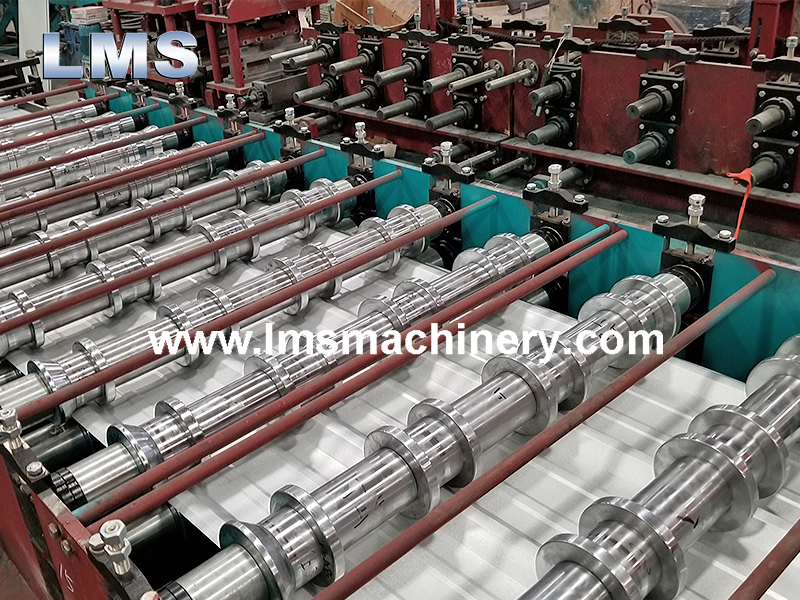

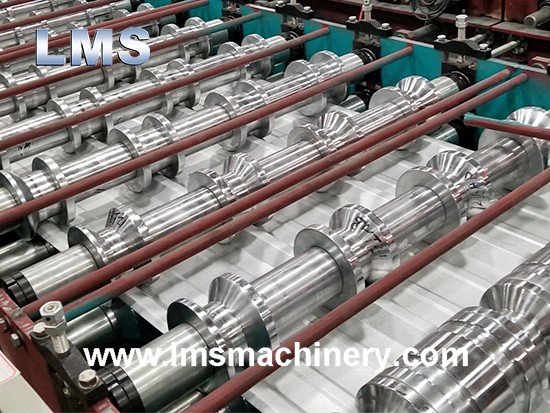

4.14 – 20 Nos of Rollers is used for roll forming, ensuring profile strength.

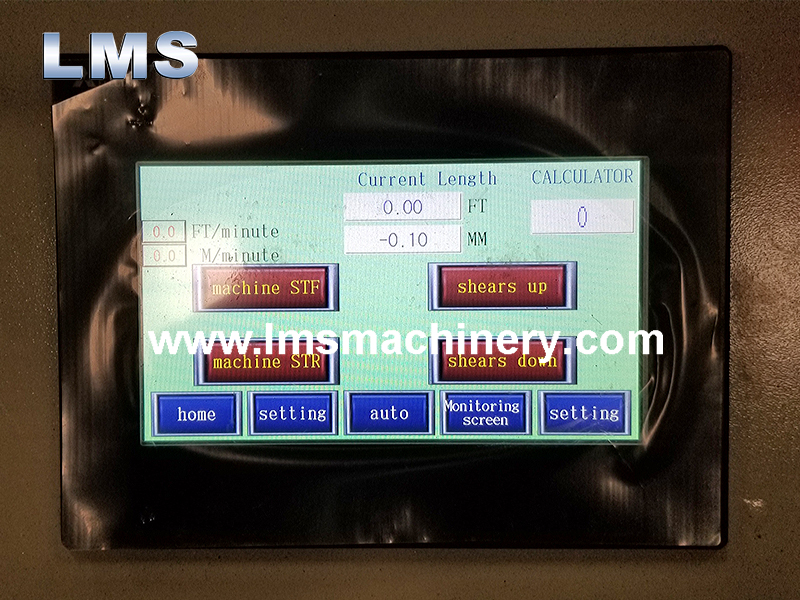

5.Mitsubishi (Japan) PLC and 5.7' Touchable Screen are used for for data processing and setting.
6.Roll forming speed is 0 – 20 meters / minute.

TECHNICAL PARAMETER
WALL PANEL ROLL FORMING MACHINE
(1)Suitable Material: PPGI Coil
(2)Material Width: 1000 / 1250 mm
(3)Material Thickness: 0.40 -- 0.80 mm

Production Process:

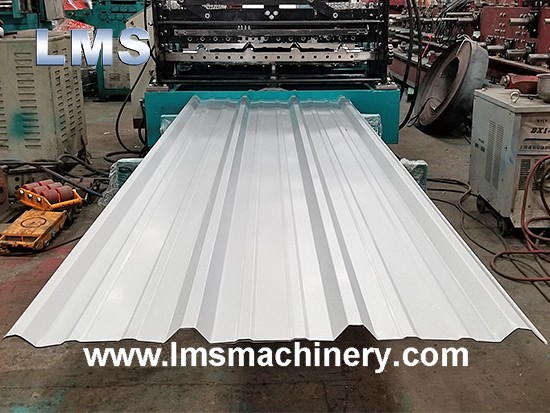

decoiling – manual shearing – roll forming – cut-off after sizing – final wall panel


Composition:
1.5 – 8 tons hydraulic decoiler: 1250 mm width; ? 500 – 600 mm inner diameter; 2.0 kw
2.Manual shearing device before material feeding: PLC calculating and controlling, material saved, no wasted; roller cutter

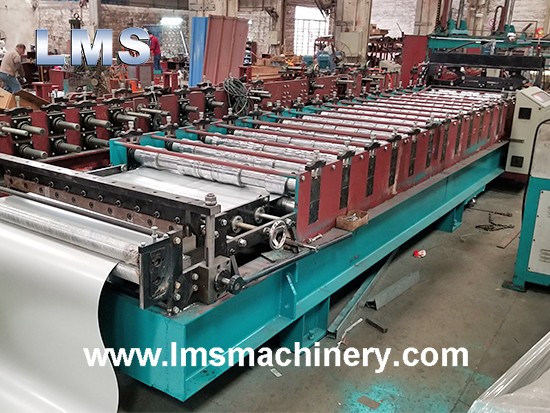

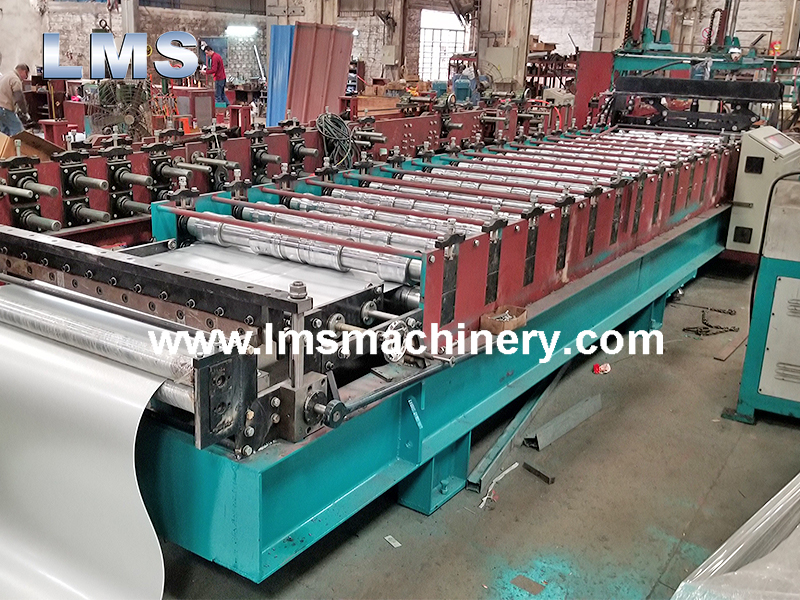

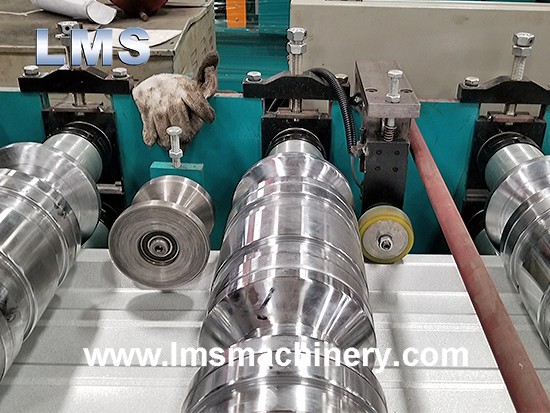

3.Roll forming machine: 14 – 20 Nos roller station; ? 80 mm main shaft; 22 mm machine sidewall thickness; 0 – 20 meters / minute

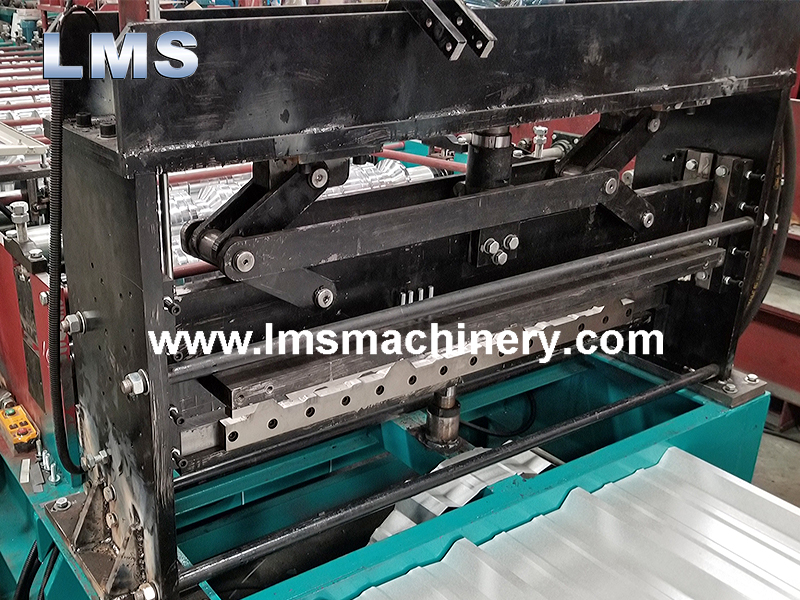

4.Hydraulic cutting-off: Gr12 steel blade; 20 tons working table pressure; with fan-cooler; 4 kw
5.Simple run-out table: 4 pieces, in 8# channel steel
6.PLC controller: Mitsubishi PLC; 5.7" Mitsubishi touchable screen; Japanese frequency converter; Schneider electronic components

roof machine

roof machine

roof machine

roof machine
