LMS Metal Corrugated Roof Tile Roll Forming Machine


LMS Metal Corrugated Roof Tile Roll Forming Machine

LMS Metal Corrugated Roof Tile Roll Forming Machine

  • Brand:

    LMS
  • item no.:

    Corrugated Roof mc
  • Payment:

    T/T
  • product origin:

    China
  • Color:

    Customized
  • shipping port:

    Huangpu
  • Lead Time:

    90 Days
Contact Us
Product Details

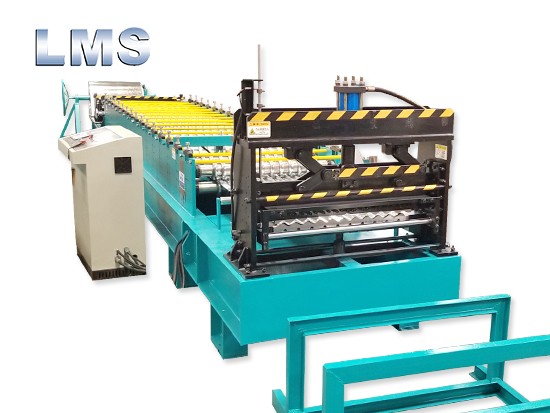

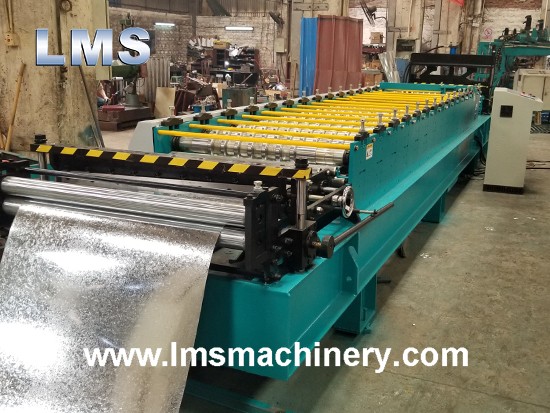

LMS Metal Corrugated Roof Tile Roll Forming Machine

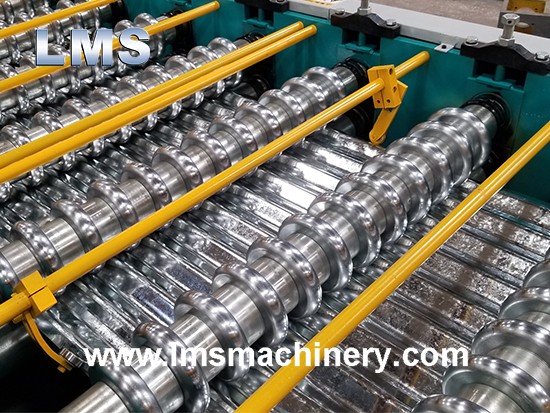

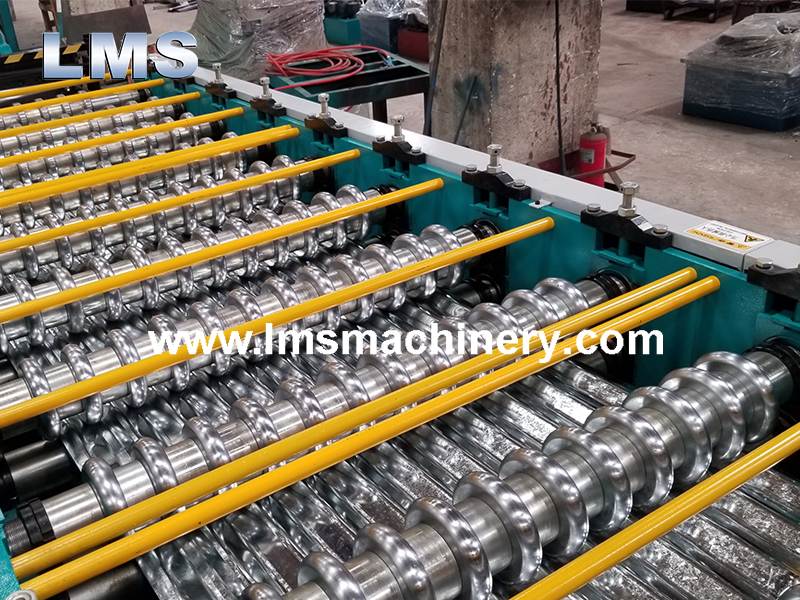

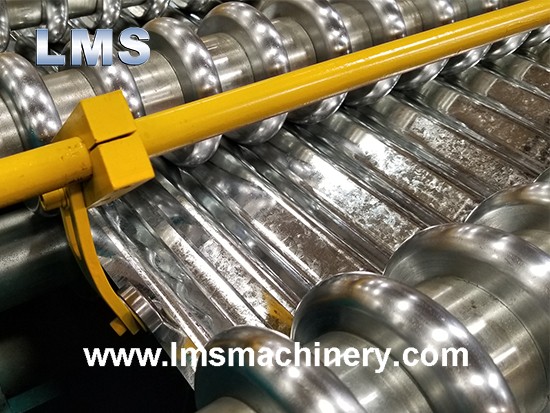

LMS Metal Corrugated Roof Tile Roll Forming Machine is a cost-effective production line with high production efficiency and stable performance. Forming rollers are designed by Germany COPRA software and plated with hard chrome on surface, service life is prolonged. Machine is equipped with PLC & electrical accessories of famous brand, such as MITSUBISHI, SCHNEIDER and OMRON, trustworthy and convenient to operate.



Corrugated Roof Tile Roll Forming Machine Specification:

1. Material Thickness: 0.16-0.5 MM

2. Material Width: 914 MM

3. Material: Pre-Painted Color Steel Sheet



Metal Waved Roof Tile Roll Forming Machine Main Technical Parameters:

1. Forming Machine Power: 5.5 KW

2. Oil Pump Power: 3.7 KW

3. Oil Pump Pressure: 10 MPa

4. Profile Thickness: 0.16 - 0.5 MM

5. Decoiling Width: 914 MM

6. Diameter Of Shaft: Ø 72

7. Quantity Of Roller: 18 Groups

8. Decoiler Width: 1000 MM

9. Decoiler Bearing: 10000 KGS

10. Power Supply: 3 Phase 4 Lines AC 480V, 60 HZ

11. Total Power: 10 KW



Waved Corrugated Steel Tile Roof Panel Making Machine Production Flow:

Material → Roll Forming → Cutting-Off → Profile.

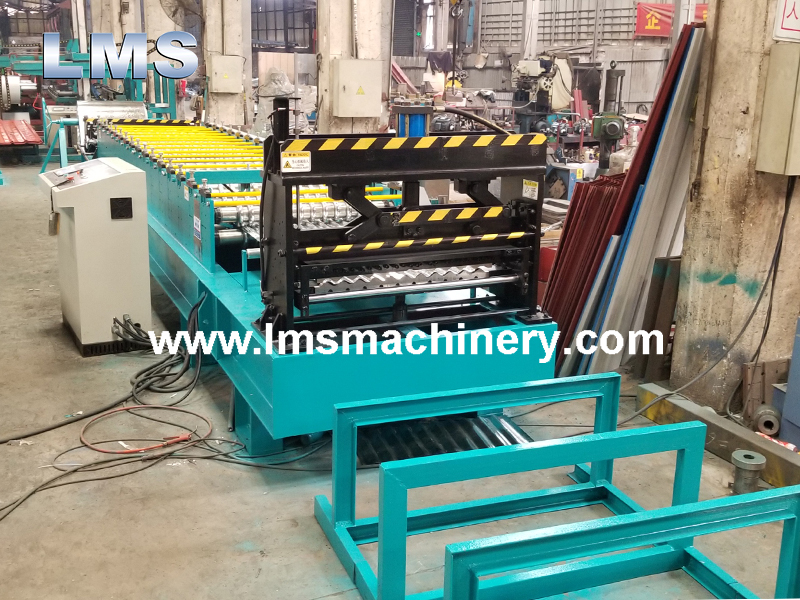

Corrugated Pattern Roof Tile Forming Machine Composition:

1. Single Head Hydraulic-Driven Decoiler, 1 Unit

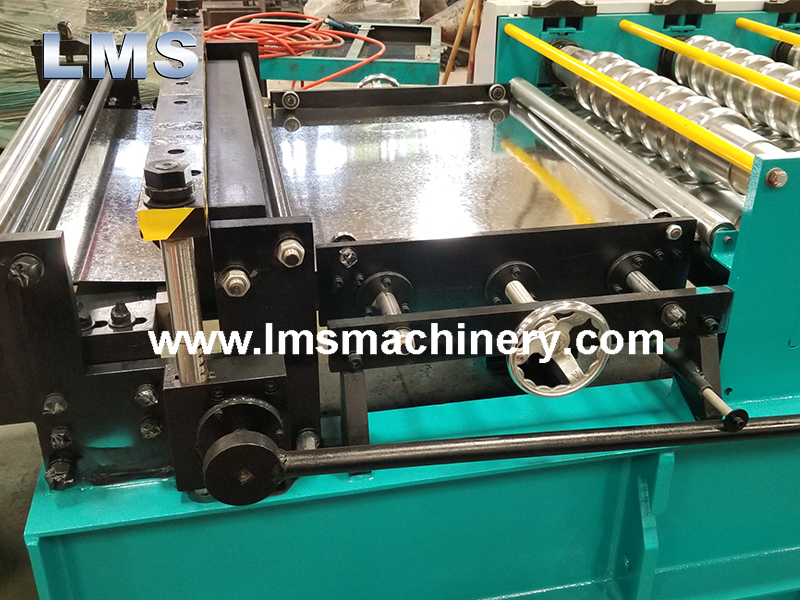

2. Manual Shearer, 1 Unit

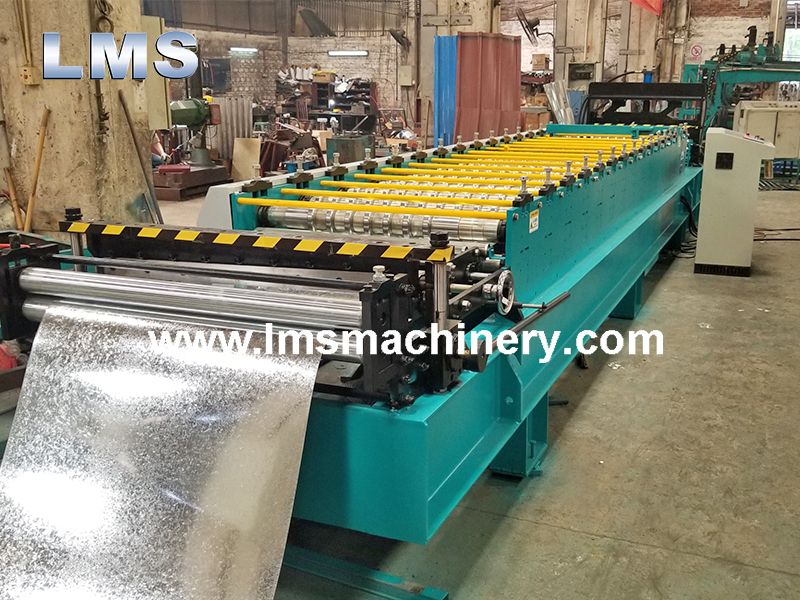

3. Forming Machine, 1 Unit

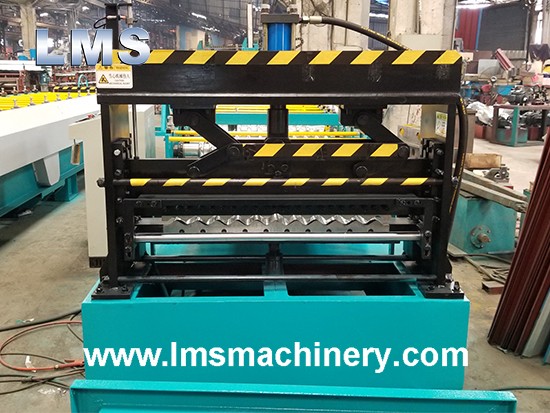

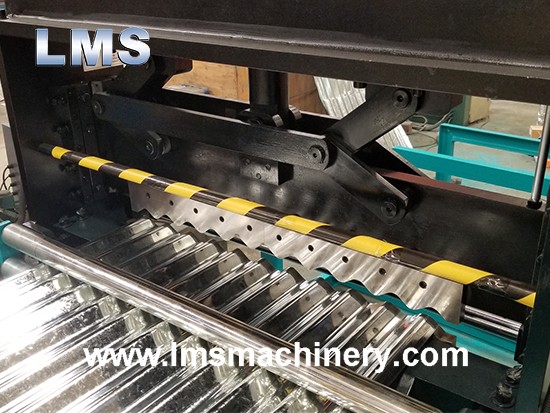

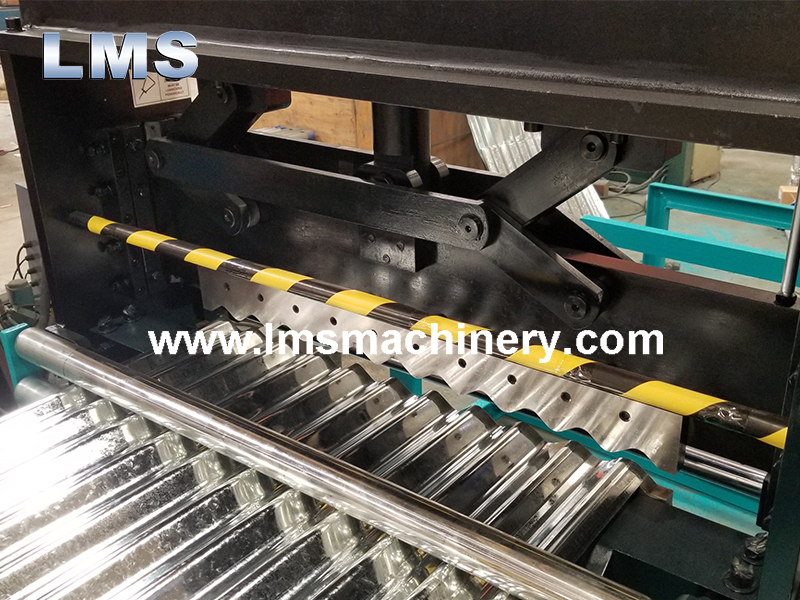

4. Cut-Off Device, 1 Unit

5. Hydraulic Pump Station, 1 Unit

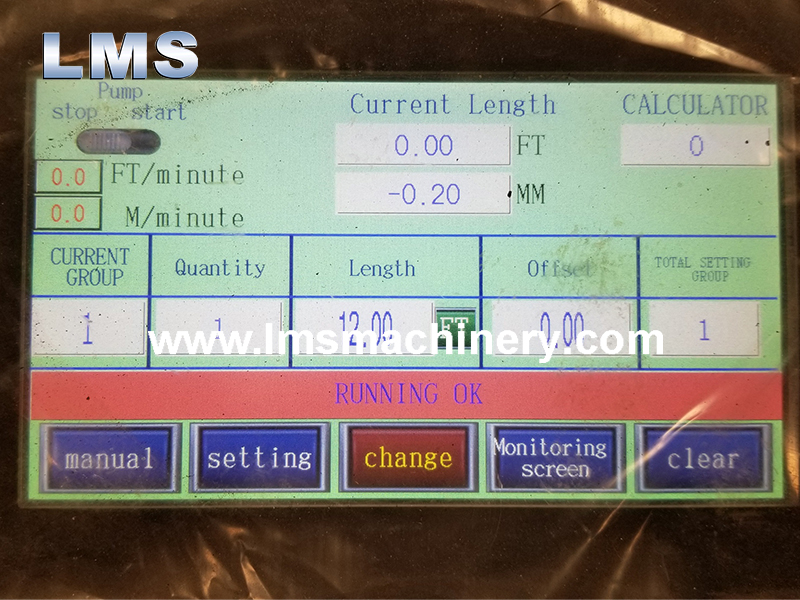

6. Electronic Control Panel, 1 Unit



Metal Roof Tile Roll Forming Machine



Corrugated Roof Tile Roll Forming Machine



Metal Waved Roof Tile Roll Forming Machine



Roof Tile Production Line



Waved Corrugated Steel Tile Roof Panel Making Machine



Metal Roof Tile Roll Forming Machine



Metal Roof Tile Roll Forming Machine



Corrugated Roof Tile Roll Forming Machine
