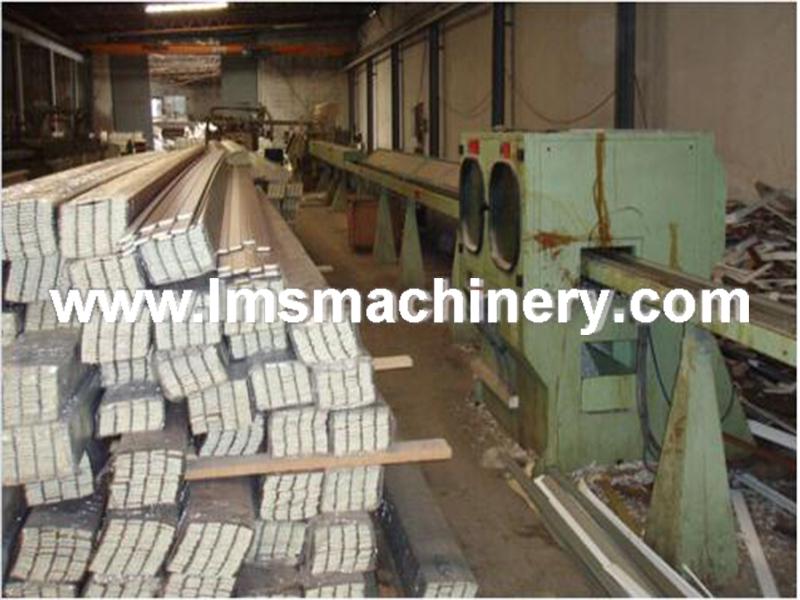

PU Compound Profile Roll Forming Machine
PU Compound Profile Roll Forming Machine PU Compound Profile Roll Forming Machine PU Compound Profile Roll Forming Machine PU Compound Profile Roll Forming Machine PU Compound Profile Roll Forming Machine PU Compound Profile Roll Forming Machine

PU Compound Profile Roll Forming Machine

  • Brand:

    LMS

  • item no.:

    PU Compound Profile

  • Payment:

    T/T

  • product origin:

    Guangdong,China

  • Color:

    Customized

  • shipping port:

    Huangpu, Guangzhou

  • Lead Time:

    70 Days
Contact Us
Product Details

PU Compound Profile Roll Forming Machine
(Changeable Type Roll Wheel Shelf)

Product Information

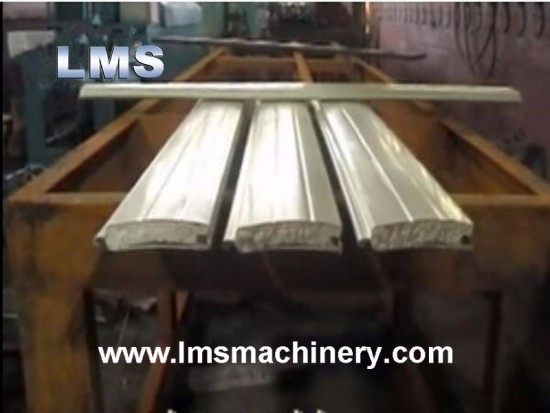

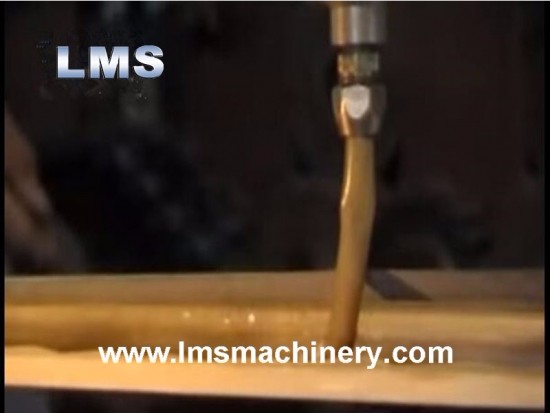

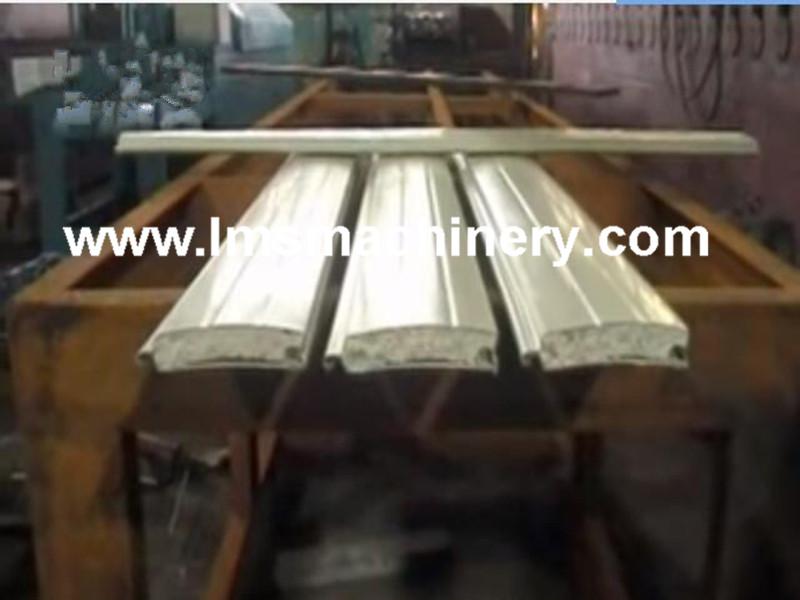

（A profile: 63mm width arc, thickness: 11.4mm, including PU foam in the middle）
（B profile: 51.5mm width plane, thickness: 8mm, including PU foam in the middle）

Decoiler part
① Material outer diameter:1400mm
② Material inner hole diameter:φ400 ~ 450mm
③ Material width: 300mm

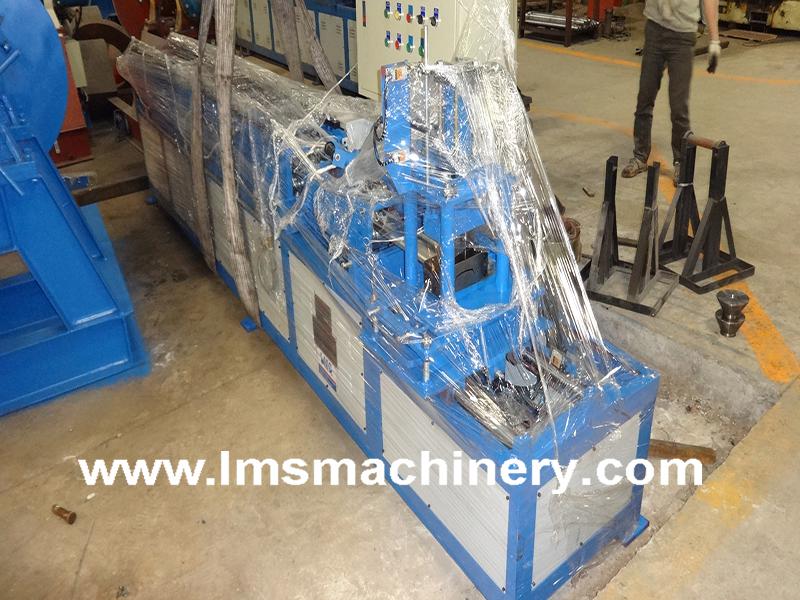

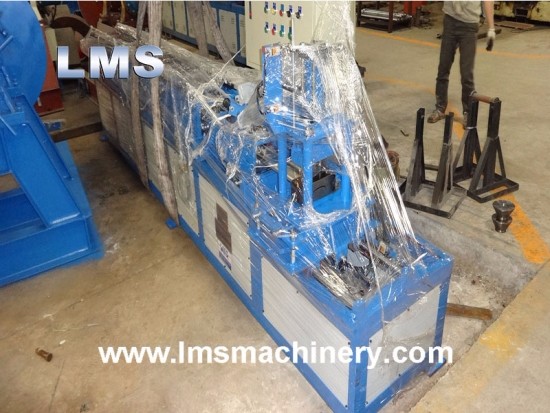

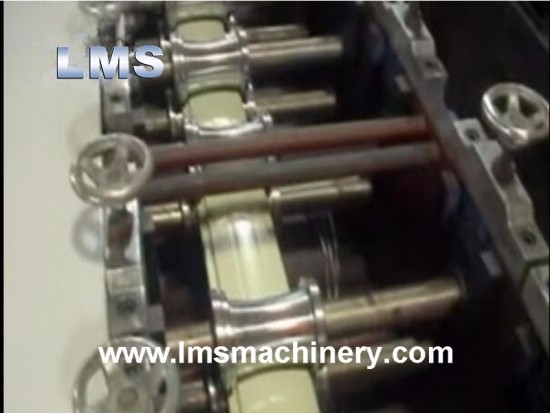

Main machine part

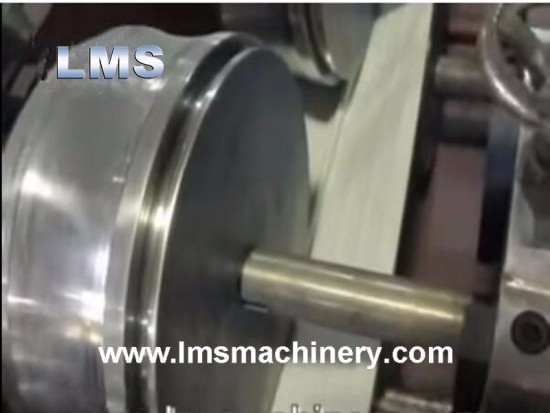

① Main roller wheel:26 groups ( not including mix wheel)
② Roller material: Gr15 steel
③ Heat treatment rigidity:HRC 55°~57°
④ Rolling material: colorful aluminum sheet
⑤ Rolling material thickness: 0.3mm
⑥ Product effective width: A profile 63mm arc
⑦ Roller main axis diameter: 40mm,material 45# steel
⑧ Splint thickness: 25mm
⑨ Main bearing: 60307
⑩ Main motor power: 7.5KW motor, cycloid needle speed reducer
Forming speed: 0~12m,adjustable

Shaping part
① Length:20m (each 5m)

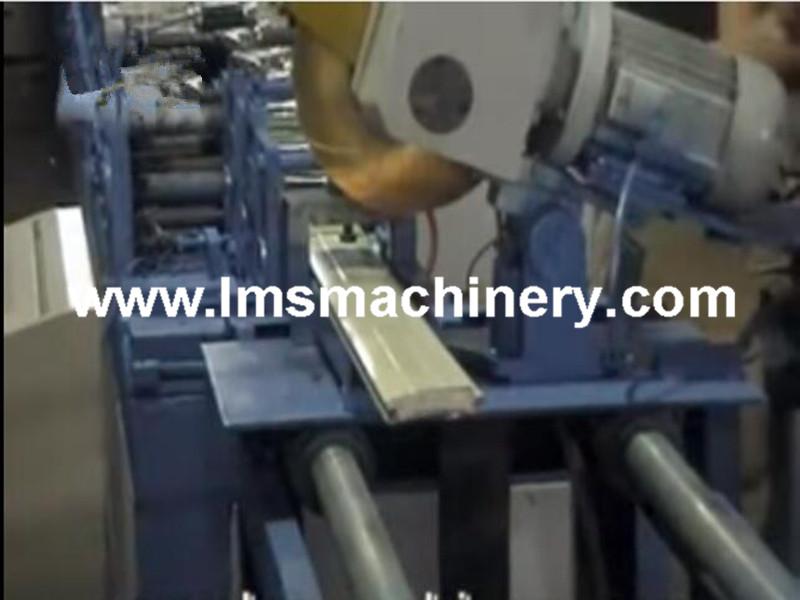

Cutoff part
Motor power:2.2 kw

Feed material part before punching
① Length: 7m

Punch & feed material part
② Equip punch mould one set, (every time punch length about 150mm)

Pneumatic discharge shelf part
Length: 6m

Electric control
① Controlled by Mitsubishi PLC and HMI, Japanese transducer adjust speed
② voltage: 380V, 50Hz; Customized
door shutter roll forming machineoor shutter machinePU door shutter roll forming machinePU door shutter machinePU door shutter machine
