LMS Fire Damper Blade Forming Machine


LMS Fire Damper Blade Forming Machine

LMS Fire Damper Blade Forming Machine

  • Brand:

    LMS
  • item no.:

    Fire Damper Machine
  • Payment:

    T/T
  • product origin:

    Guangdong, China
  • Color:

    Customized
  • shipping port:

    Huangpu, China
  • Lead Time:

    90 Days
Contact Us
Product Details

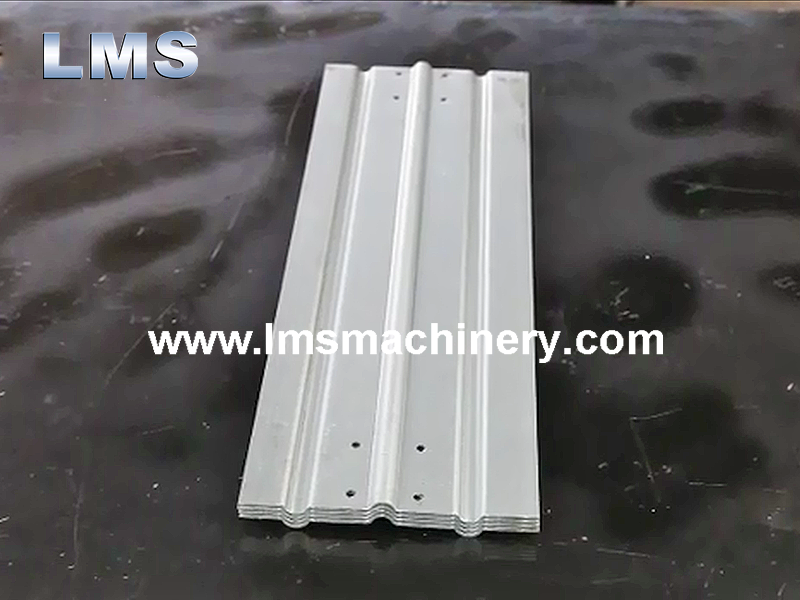

LMS Fire Damper Blade Forming Machine

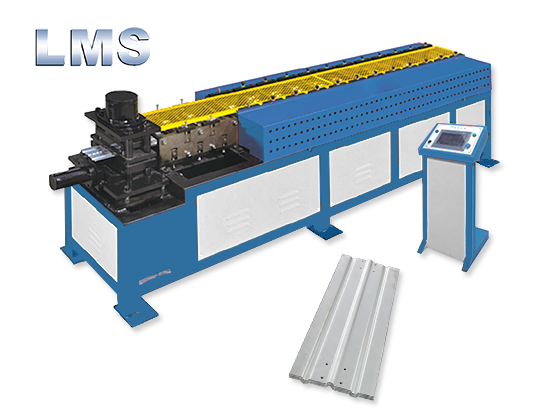

LMS Fire Damper Blade Forming Machine is mainly composed of manual decoiler, forming machine, cutting & punching tools, electrical control system and hydraulic control system, widely used for the mass production of fire damper blade. The whole line is controlled by Japanese Panasonic PLC, operator can set to run the line automatically and monitor the control process.



Fire Damper Blade Forming Line Main Technical Parameters:

 Item  Parameters
 Material  Galvanized Plate
 Material Thickness  1.8 - 2.0 MM (or 1.2 - 1.5 MM)
 Width of Coil  According to Customer's Requirement
 Weight of Coil  ≤ 2000 KGS

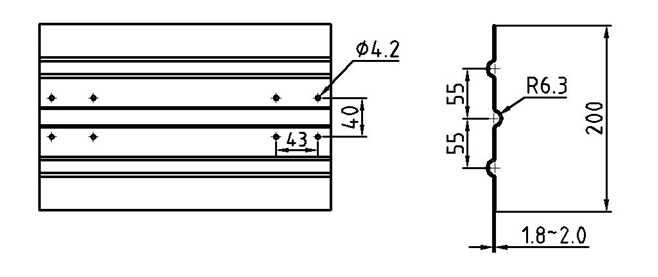

 Blade Size  150 – 205 MM
 Center Distance between Left and Right Grooves  102 MM, Round Groove
 Formed Blade Width  ≤ 205 MM (If ﹥205 MM, Blade Flatness cannot be Guaranteed)
 Punching or Punch Blade Coverplate Hole  According to Customer's Requirement
 Motor Power  5.5 KW / 4 KW
 Forming Speed  1 – 15 M/Min, Adjustable
 Blade Length Error  ± 0.5 MM / 1000 MM
 Blade Glancing Flatness  ≤ 1 MM / 1000 MM
 Control Mode  PLC Control
 Main Power Supply  380 V, 50 HZ, 3 Phase
 Hydraulic System Pressure  25 MPa, Working Pressure: 8 – 12 MPa
 External Dimensions of Line  Approx. 6000 MM × 700 MM × 1200 MM (L × W × H)



Fire Damper Blade Machine Production Process:

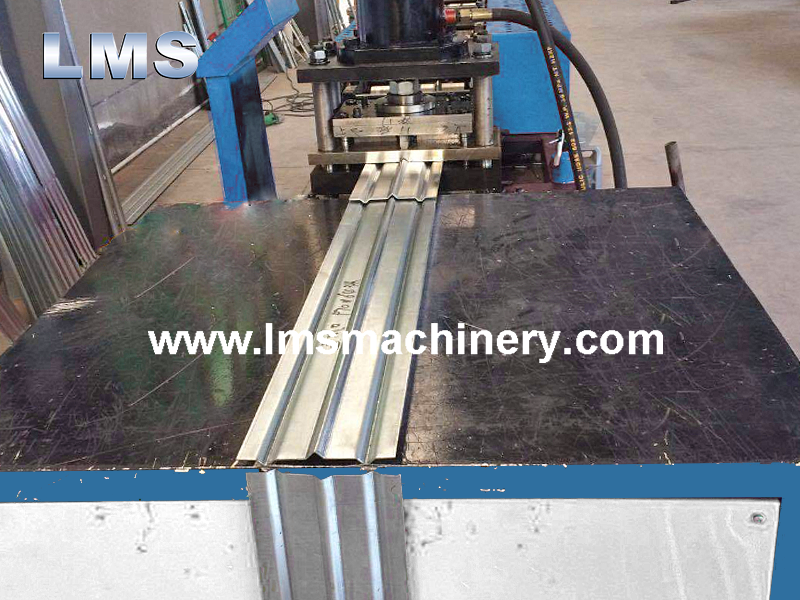

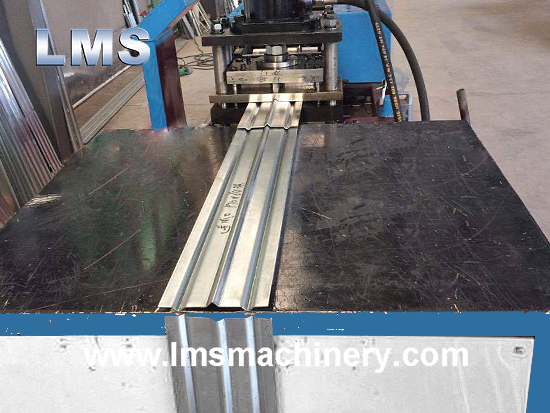

Decoiling → Roll Forming → Straightening, Reshaping → Cutting To Length (Punching) → Manual Discharging.



Fire Damper Blade Making Machine Composition:



Item Quantity
Manual Decoiler 1 Unit
Forming Machine 1 Unit

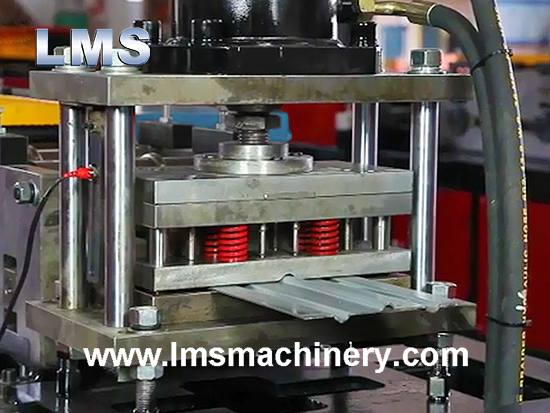

Cutting, Punching Tools 1 Set
Electrical Control System 1 Set
Hydraulic Control System 1 Set



Fire Damper Blade Forming Line Fire Damper Blade Making Machine



Fire Damper Blade Machine Fire Damper Blade Roll Former



Fire Damper Blade Roll Forming Machine Fire And Smoke Damper Blade Forming Machin
