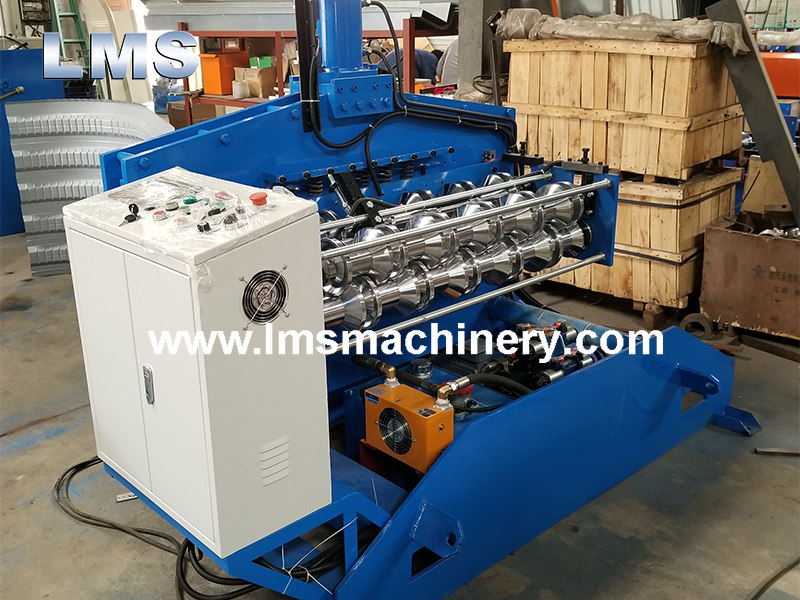

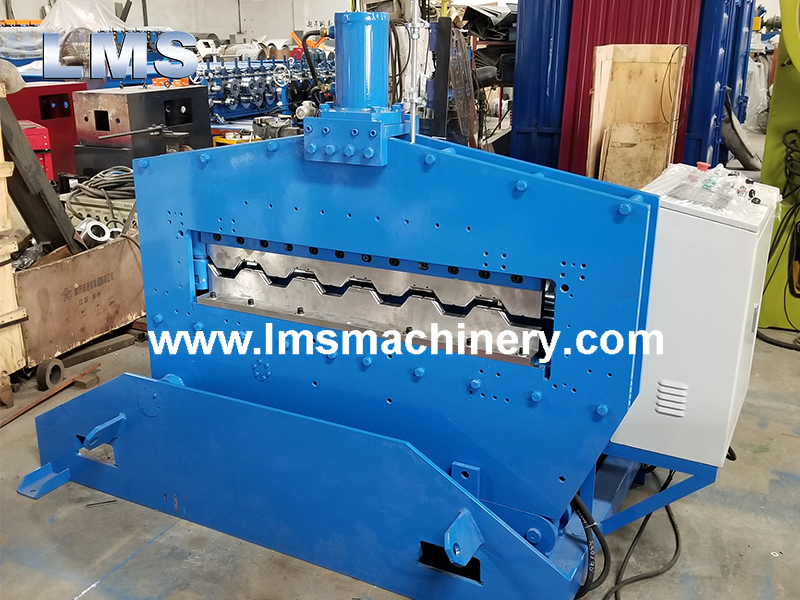

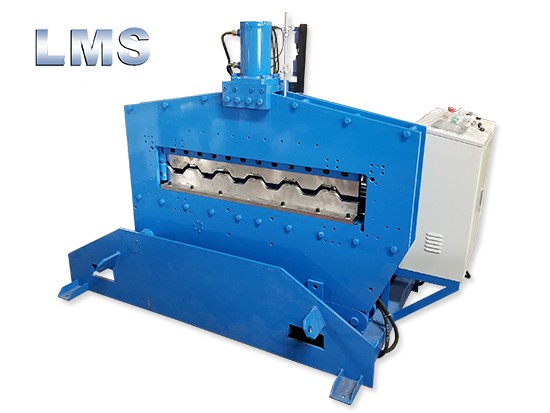

LMS Roof Curving Machine

Features:
1.Material head-stepping is fed by Servo Motor.
2.Clamping sheet by Pneumatic.
3.Minimum curving radius within ? 300 mm.
4.Curving speed in 20 times / minute.

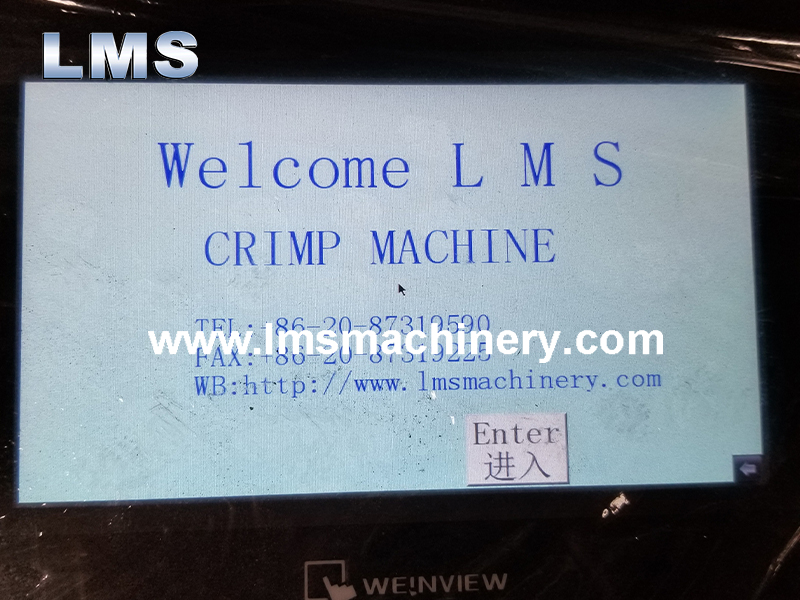

5.Data setting by CNC Interface.

Technical Parameters:
T Shape Corrugated Sheet Roof Panel roll forming machine
(1)Suitable Material:PPGI / Embossed Aluminium Roll-Formed Roof
(2)Material Width: 914 / 1000 / 1220 / 1250 mm
(3)Material Thickness: 0.30 -- 0.80 mm

Production Process:

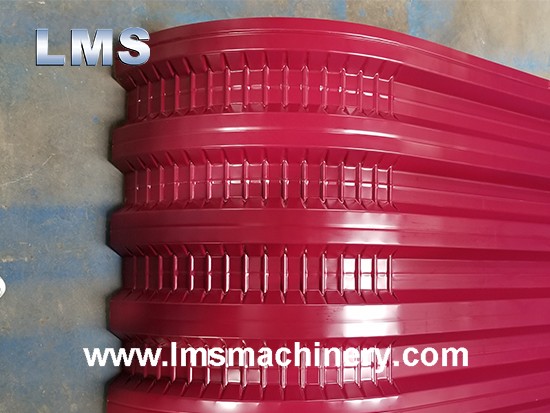

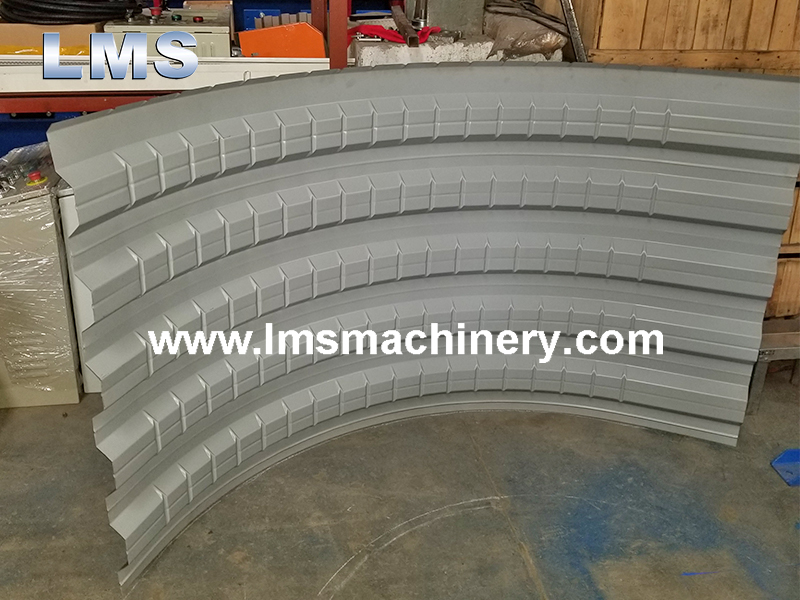

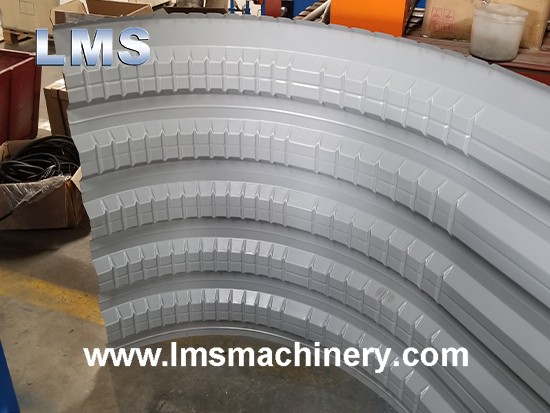

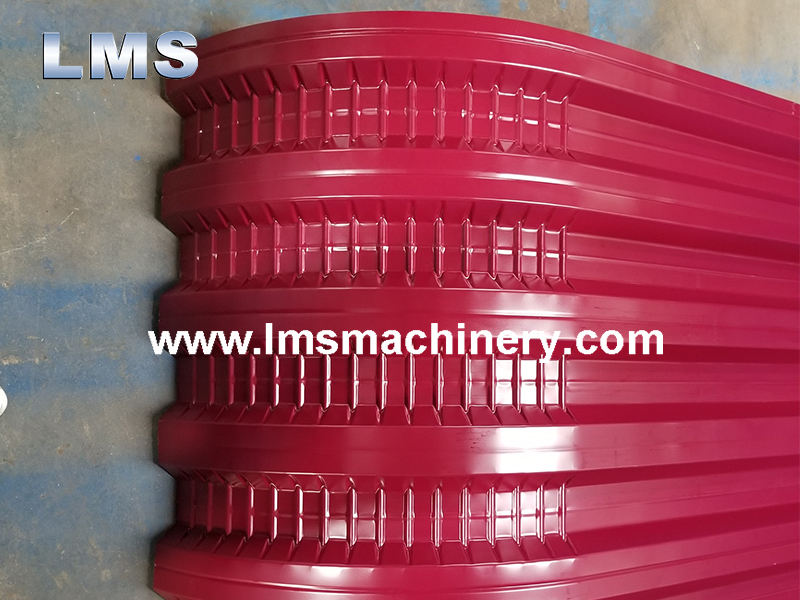

roll-formed roof feeding – stepping – curving – finished curved roof

Composition:
1.Setting the interval between 2 punching rows by CNC interface.
2.Feeding the sheet to punching head by servo motor, 0.75
3.Clamping the sheet by pneumatic device.

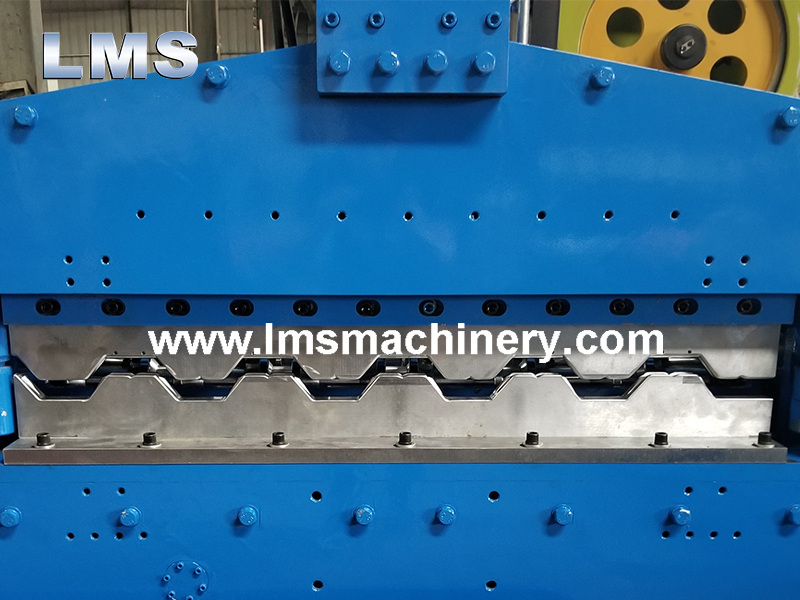

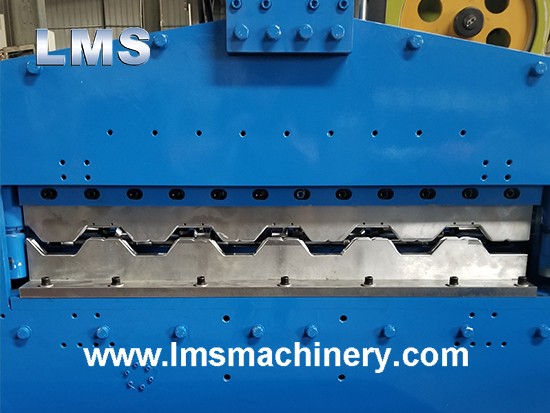

4.Punching the sheet step by step to form curve demanded by hydraulic system.
5.Hydraulic Curving & oil pump motor: 5.5 kw
6.Minimum curving radius: R=300 mm
7.Curving speed: 20 times / min
8.Curving radius: ≥ 300 mm
