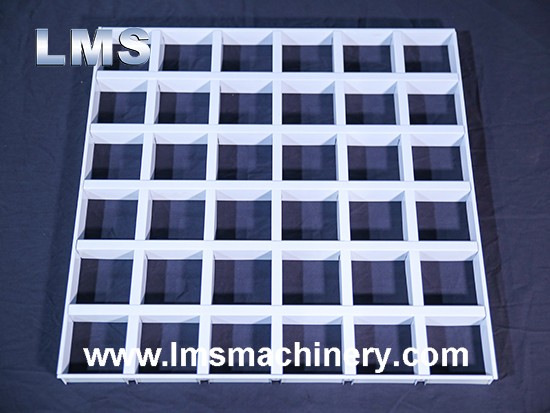

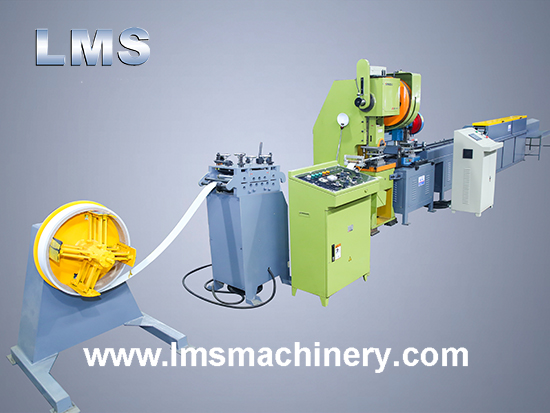

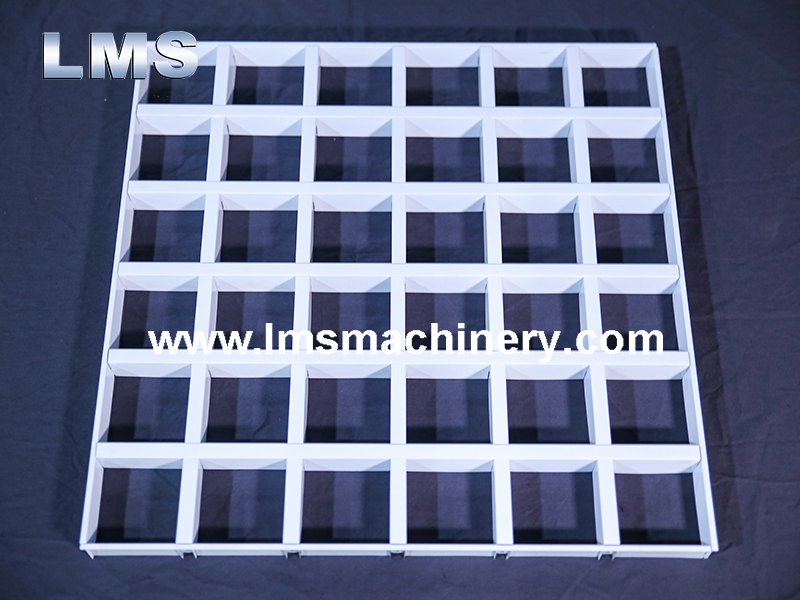

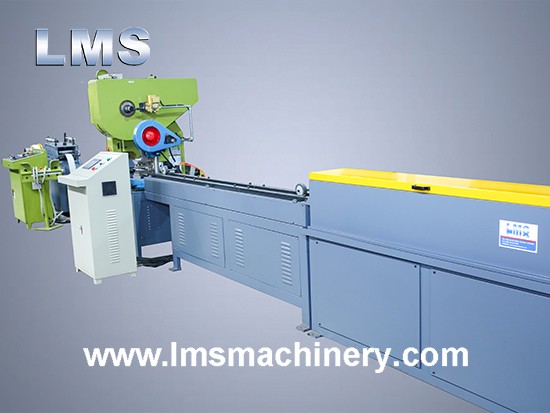

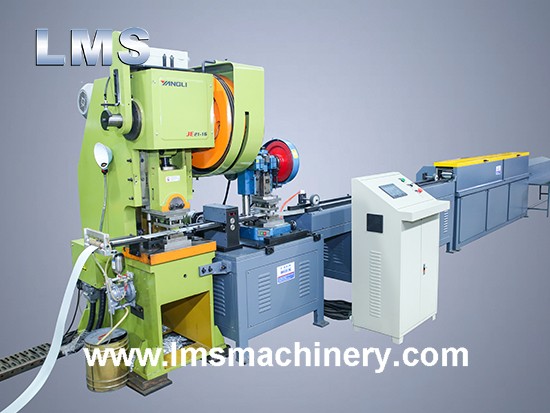

LMS Open Cell Ceiling Grilyato Production Line is mainly used for the production of U15 suspended open cell ceiling grilyato. The full production line includes manual decoiler, leveler, servo feeder, power press, cutting unit, conveyor, roll forming machine, run-out table and electric control system. This production line is usually suggested to make open cell ceiling grilyato together with L strip production line, which should be ordered separately. Production speed from decoiling to discharging could be about 5 - 12 meters per minute. Other revelant metal ceiling machines could be customized as well, welcome to send samples or drawings for customization.
1. Material: PPGI / Aluminum Coil
2. Material Thickness: 0.30 - 0.40 MM
3. Profile Size: U15×37 / U15×47 MM (Main & Cross)
4. Punching Distance: 50 / 60 / 75 / 86 / 100 / 120 / 150 / 200 MM (8 Sizes)
5. Cutting Length: 592.2 MM (One Size)
6. Production Line Speed: About 5 M (50 MM) ~ 12 M (200 MM) / Minute

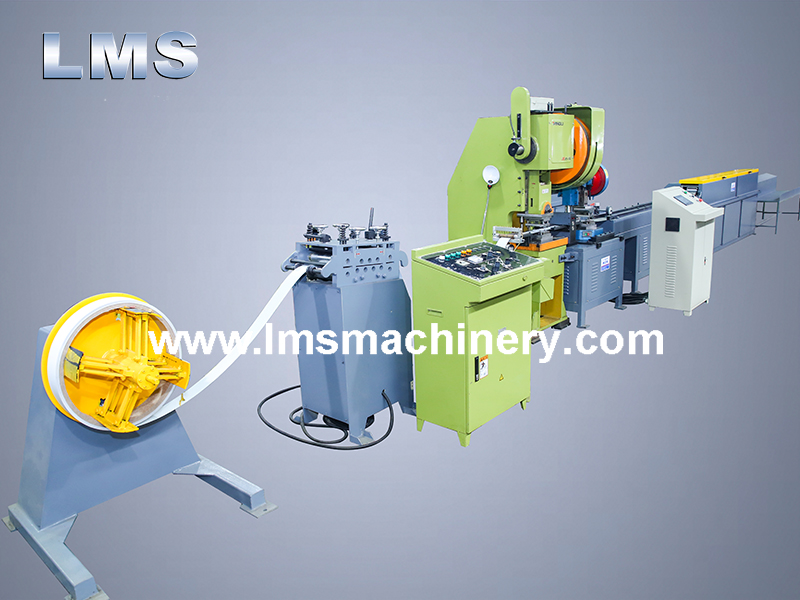

Material Coil → Decoiling → Leveling → Punching → Cutting → Roll Forming → Discharge → Finished Profile.
| NO. | Equipment | Specification | Qty. |
| 1 | Manual Decoiler |
(1) Loading Capacity: 1000 KGS (2) Material Coil Inner Diameter: Φ 400 - 500 MM (3) No Power: Manual Expansion To Tighten The Coil |
1 Unit |
| 2 | Leveler |
(1) Leveling Rolls: 7 Nos. (2) Roll Hardness Treatment: Thermal Refining (3) Motor Power: 0.75 KW; 380 V, 50 HZ, 3 Phs |
1 Unit |
| 3 | Servo Feeder |
(1) Servo Motor: YASKAWA; 0.85 KW (2) Feeding Material Thickness: 0.30 - 0.40 MM (3) Feeding Length: Adjustable |
1 Unit |
| 4 | Power Press |

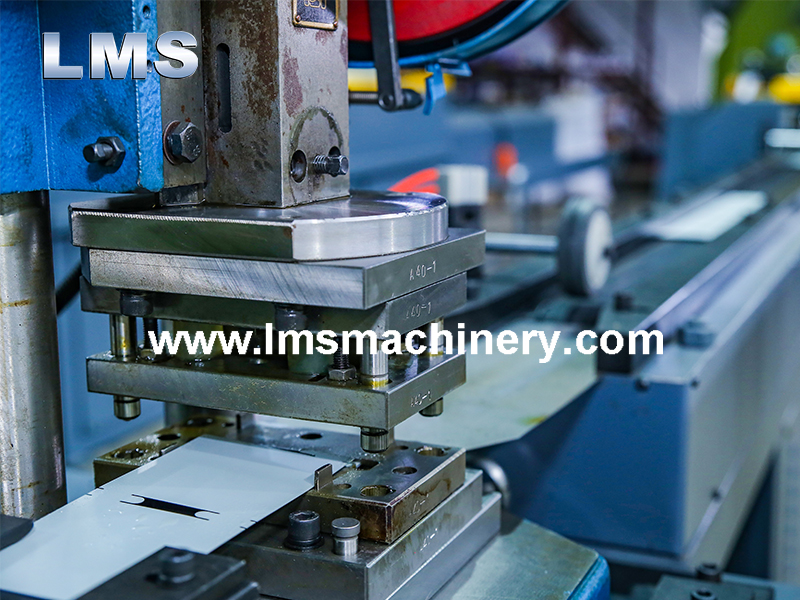

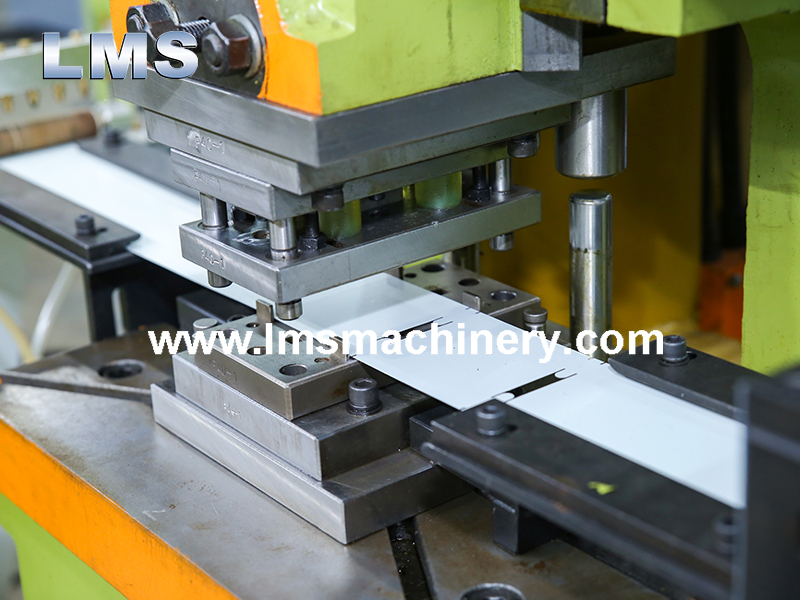

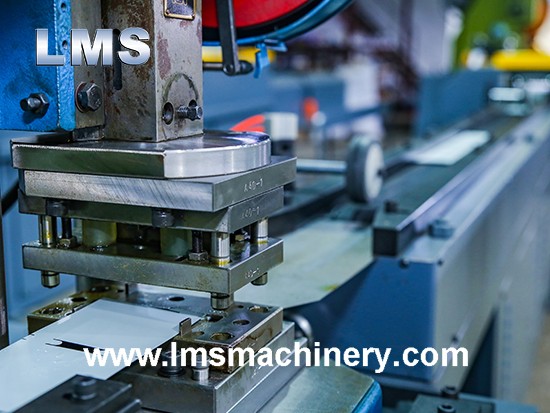

(1) Punching Tool: 2 PCS (For Main Grid & Cross Grid) (2) Punching Distance: 50 / 60 / 75 / 86 / 100 / 120 / 150 / 200 MM (8 Sizes) (3) Press Power: 16 Tons (4) Motor Power: 2.2 KW, 380 V (5) Capacity: 120 Strokes / Minute |
1 Unit |
| 5 | Cutting Unit |
(1) Cutting Tool: 1 PCS (2) Press Power: 2 Tons (3) Motor Power: 0.55 KW, 380 V (4) Capacity: 180 Strokes / Minute (5) Cut to Length: 592.2 MM |
1 Unit |

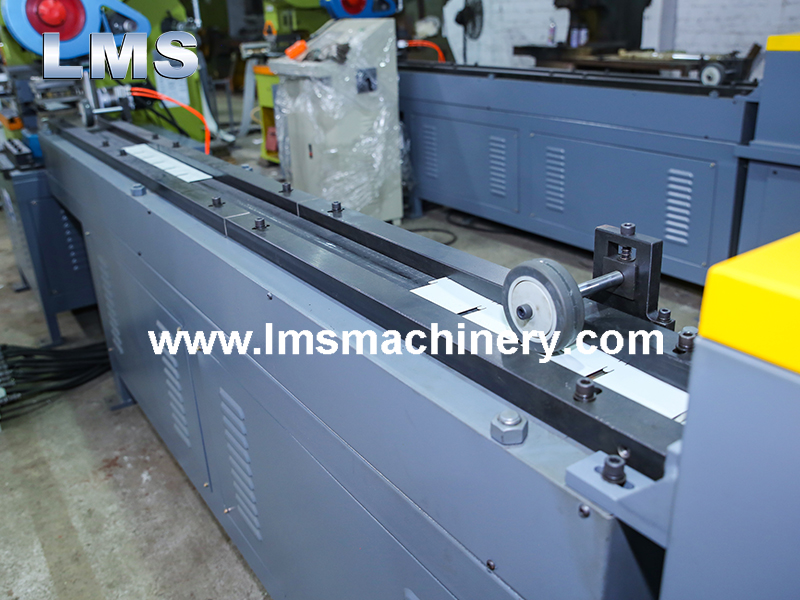

| 6 | Conveyor |
(1) Auto Conveying: Speed Adjustable (2) Motor Power: 90 W, 220 V |
1 Unit |

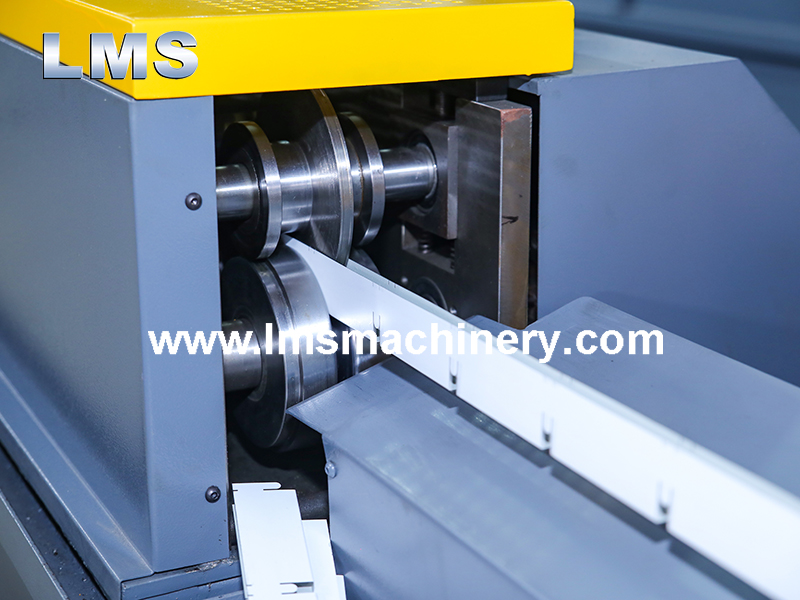

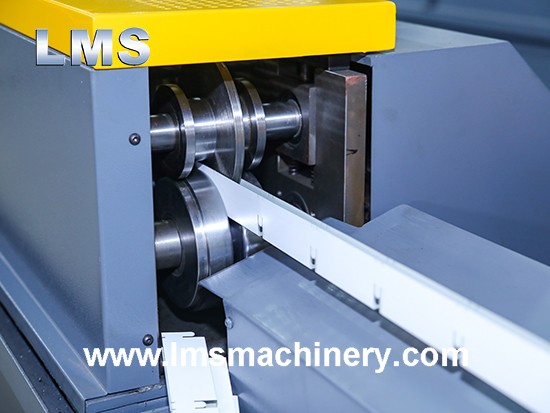

| 7 | Roll Forming Machine |

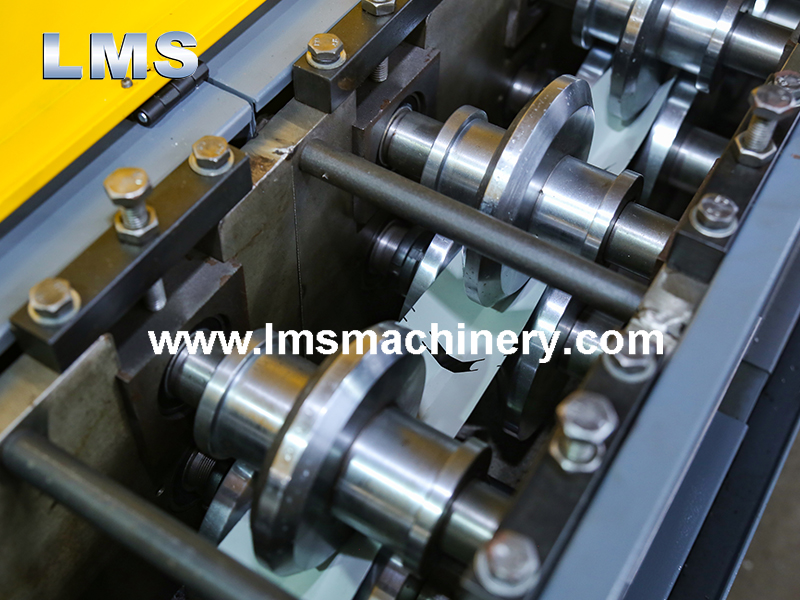

(1) Forming Roller: 14 Stations; Including Straightening; 45# (2) Treatment For Rollers: Quenched And Hard Chrome Plating (3) Side-Wall Thickness: 25 MM (4) Main Shaft: Φ38 MM; 45# (5) Bearing: HRB 6206 (6) Motor Power: 4.0 KW (7) Transmission System: By Gears & Chains (8) Roll Forming Speed: Approx. 10 - 15 Meters / Minute |
1 Unit |
| 8 | Run-Out Table | (1) Table Length: 3 Meters; No Power | 1 Set |
| 9 | Electric Control System |
(1) PLC: PANASONIC, Japan (2) Touch Screen: WEINVIEW, Taiwan (3) Servo Motor: YASKAWA; Japan (4) Power Supplier: 380 V, 50 HZ, 3 PHS |
1 Unit |
