Slotted Angle Roll Forming Machine

Categories


Slotted Angle Roll Forming Machine

Slotted Angle Roll Forming Machine

Slotted Angle Roll Forming Machine Working Flow: material – decoiling – leveling – hole-punching – roll forming – hydraulic cutting-off – final prolife

  • Brand:

    LMS
  • item no.:

    38x38 & 38x60 X2.5
  • Payment:

    T/T
  • product origin:

    Guangdong, China
  • Color:

    Customized
  • shipping port:

    Huangpu, Guangzhou
  • Lead Time:

    90 Days
Contact Us
Product Details

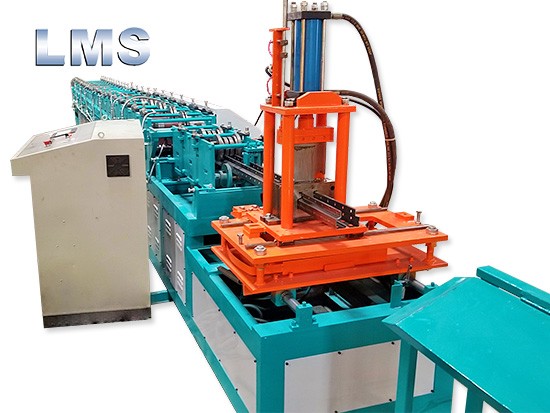

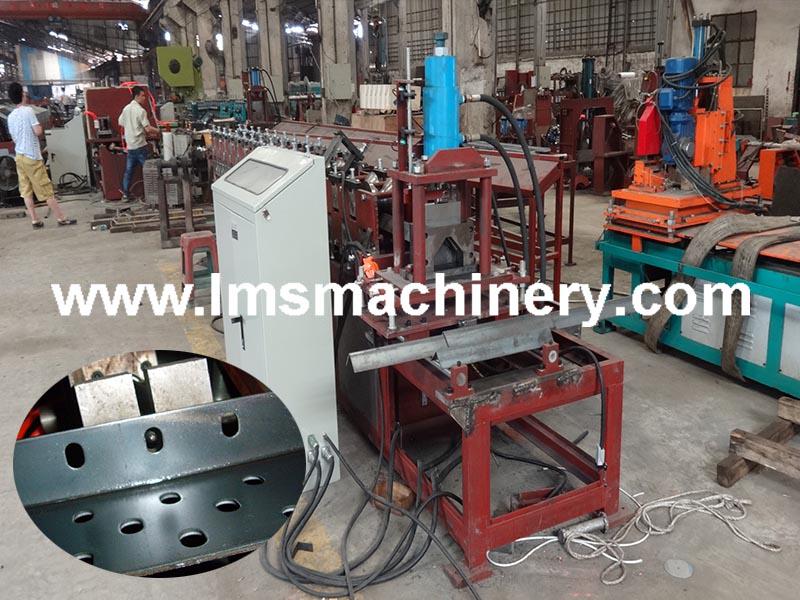

LMS Slotted Angle Roll Forming Machine



SPECIFICATION:

  1. Suitable material: Carbon Steel Coil
  2. Material Thickness: 1.5 – 2.5 mm
  3. Profile Width: 38 / 60 mm (2 Sizes)
  4. Profile Height: 38 mm (1 Size)
  5. Profile Specification :38x38 & 38x60 X2.5, customized

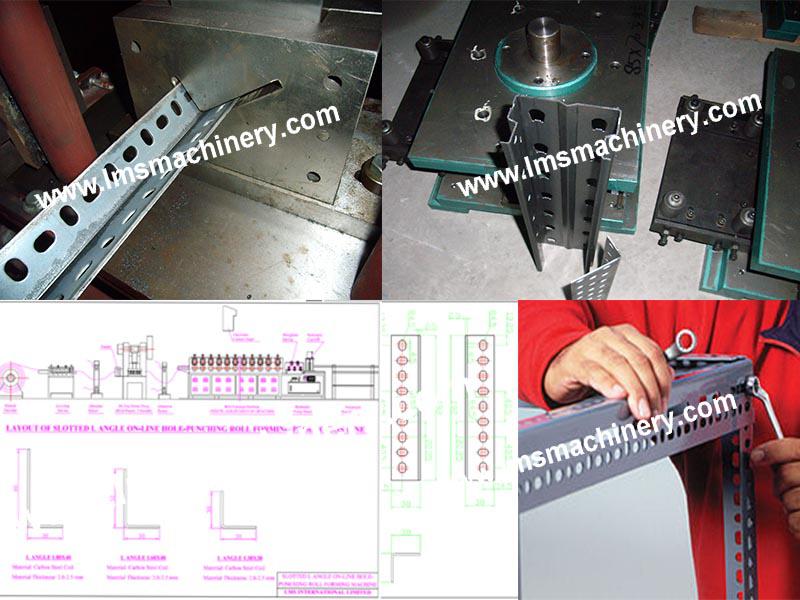

WORKING FLOW:

material – decoiling – leveling – hole-punching – roll forming – hydraulic cutting-off – final profile

Slotted Angle Machine

Slotted Angle Machine

    A free consultation

    Please send us roll forming profile with specifications, thickness and other processing requirements for our customized machine.If you need standard machine, please send us the model you want.
