LMS Fire Damper Support Bar Forming Machine

Categories

New Products

LMS Fire Damper Support Bar Forming Machine

LMS Fire Damper Support Bar Forming Machine

Brand:
LMS
item no.:
Fire Damper Machine
Payment:
T/T
product origin:
Guangdong, China
Color:
Customized
shipping port:
Huangpu, China
Lead Time:
90 Days

Product Details

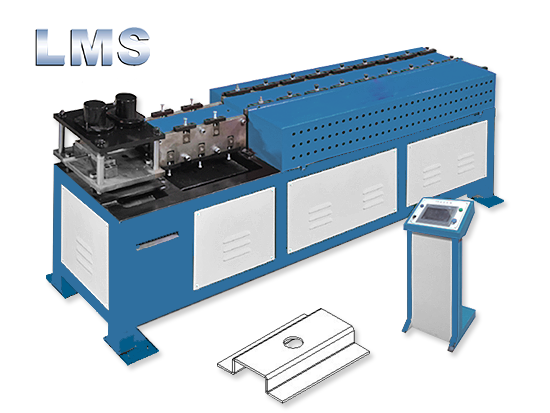

LMS Fire Damper Support Bar Forming Machine

LMS Fire Damper Support Bar Forming Machine is mainly composed of manual decoiler, roll forming machine, cutting & punching tools, electrical control system and hydraulic control system, widely used for the mass production of fire damper support bar. It is one of the important production line equipment for fire damper manufacture, with the advantage of high efficiency and precision, and stable performance.

Fire Damper Support Bar Forming Line Main Technical Parameters:

Item	Parameters
Material	Galvanized Plate
Material Thickness	1.5 - 2.0 MM
Width of Coil	95 MM
Weight of Coil	≤ 2000 KGS
Forming Height	15 MM
Motor Power	4 KW / 4 KW
Forming Speed	1 – 15 M, Adjustable
Plate Length Error	± 0.5 MM / 1000 MM
Punching Hole Distance Error	± 0.5 MM / 1000 MM
Glancing Flatness	≤ 1 MM / 1000 MM
Control Mode	PLC Control
Main Power Supply	380 V, 50 HZ, 3 Phase
Hydraulic System Pressure	25 MPa, Working Pressure: 8 – 12 MPa
External Dimensions of Line	Approx. 5000 * 700 * 1200 MM (LWH)

Fire Damper Support Bar Machine Production Process:

Decoiling → Roll Forming → Straightening, Reshaping → Cutting To Length, Punching → Manual Discharging.

Fire Damper Support Bar Production Line Composition:

Item	Quantity
Manual Decoiler	1 Unit
Roll Forming Machine	1 Unit
Cutting, Punching Tools	Each 1 Set
Electrical Control System	1 Set
Hydraulic Control System	1 Set

Fire Damper Support Bar Forming Line, Fire Damper Support Bar Machine, Fire Damper Support Bar Production Line

Fire Damper Support Bar Former, Fire Damper Support Bar Making Machine, Fire Damper Support Bar Machine
