LMS Fire Damper Leaf Spring Forming Machine

LMS Fire Damper Leaf Spring Forming Machine

Brand:
LMS
item no.:
Fire Damper Machine
Payment:
T/T
product origin:
Guangdong, China
Color:
Customized
shipping port:
Huangpu, China
Lead Time:
90 Days

Product Details

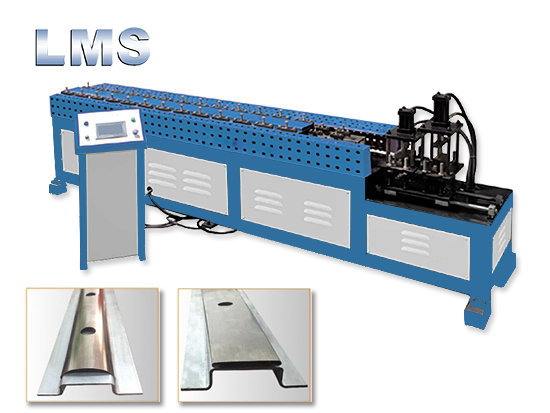

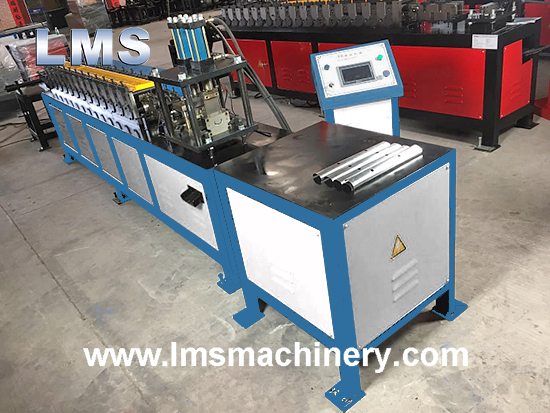

LMS Fire Damper Leaf Spring Forming Machine

LMS Fire Damper Leaf Spring Forming Machine is mainly composed of manual decoiler, roll forming machine, cutting & punching tools, electrical control system and hydraulic control system, widely used for the mass production of fire damper leaf spring. It is one of the important production line equipment for fire damper manufacture, with the advantage of high efficiency and precision, and stable performance.

Fire Damper Spring Leaf Forming Line Main Technical Parameters:

Item	Parameters
Material	Stainless Steel 301H
Material Thickness	0.2 MM
Width of Coil	57 MM
Weight of Coil	≤ 1000 KGS

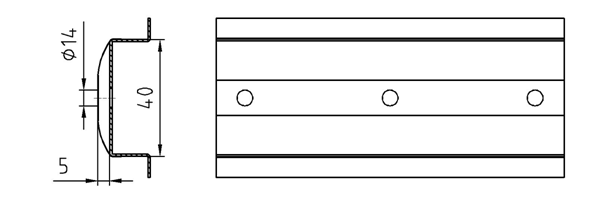

Forming Width	39 MM
Motor Power	2 KW / 2.2 KW
Forming Speed	1 – 15 M, Adjustable
Plate Length Error	± 0.5 MM / 1000 MM
Punching Hole Distance Error	± 0.3 MM / 1000 MM
Control Mode	PLC Control
Main Power Supply	380 V, 50 HZ, 3 Phase
Hydraulic System Pressure	25 MPa, Working Pressure: 8 – 12 MPa
External Dimensions of Line	Approx. 5000 * 700 * 1200 MM (LWH)

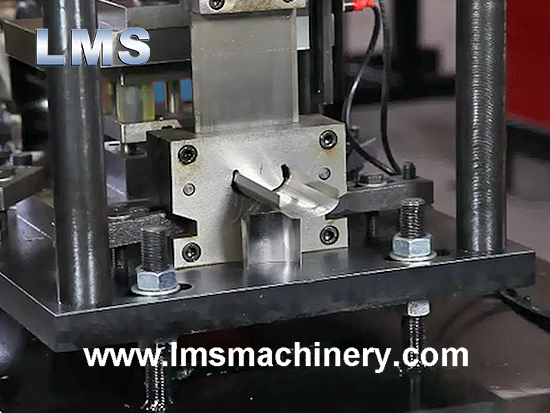

Fire Damper Spring Leaf Production Line Production Process:

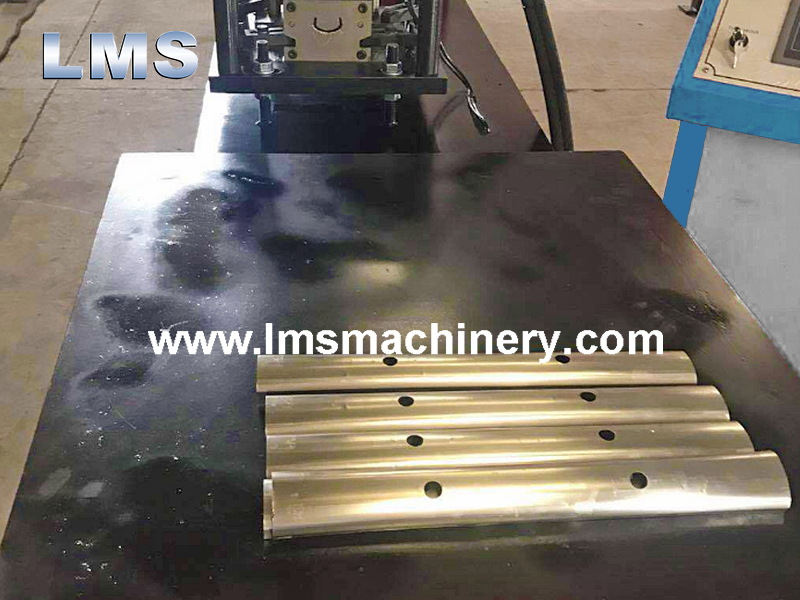

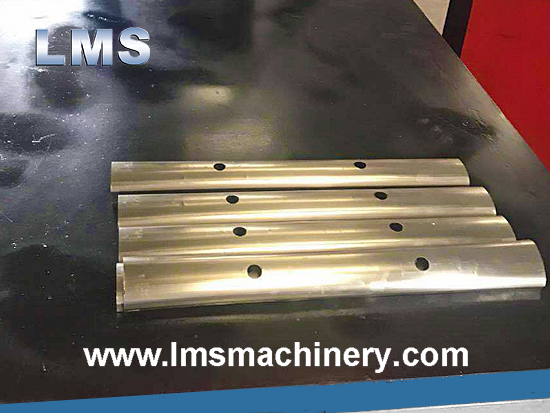

Decoiling → Roll Forming → Straightening, Reshaping → Punching, Cutting Off → Manual Discharging.

Fire Damper Leaf Spring Forming Line Composition:

Item	Quantity
Manual Decoiler	1 Unit
Roll Forming Machine	1 Unit
Cutting, Punching Tools	Each 1 Set
Electrical Control System	1 Set
Hydraulic Control System	1 Set

Fire Damper Spring Leaf Forming Line Fire Damper Spring Piece Forming Machine

Fire Damper Spring Leaf Production Line Fire Damper Spring Piece Production Line

Fire Damper Leaf Spring Forming Line Fire Damper Leaf Spring Production Line
