Duct Manufacturing Auto Line II

Coil line LMS-II is mainly for TDF flange blanking, meanwhile, it can be used for normal sheet blanking. Matched with Pittsburgh lock former/ TDF folding machine and Angle joints, this duct line can produce very good TDF ducts.

Brand:
LMS
item no.:
Duct Manufacturing A
Payment:
T/T
product origin:
CHINA
Color:
BLUE
shipping port:
HUANGPU
Lead Time:
90 DAYS

Product Details

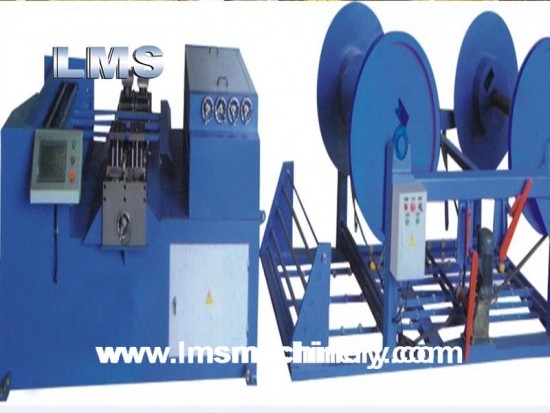

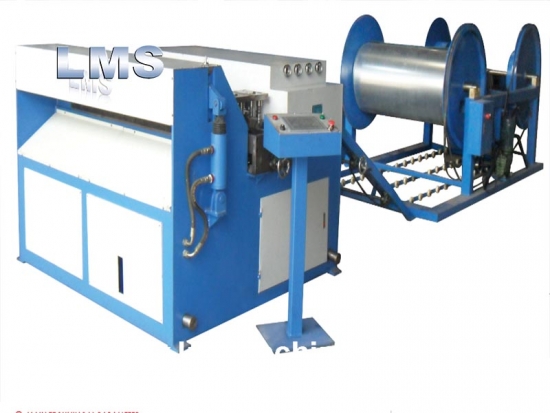

LMS Duct Manufacturing Auto Line II

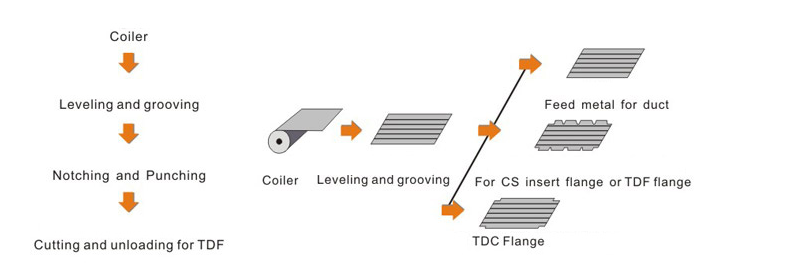

Work Flow of duct manufacturing auto line:

DUCT

Basic configuration:

One sets of single-motor driven dual-decoilers (Maximum capacity of 6-ton per station)

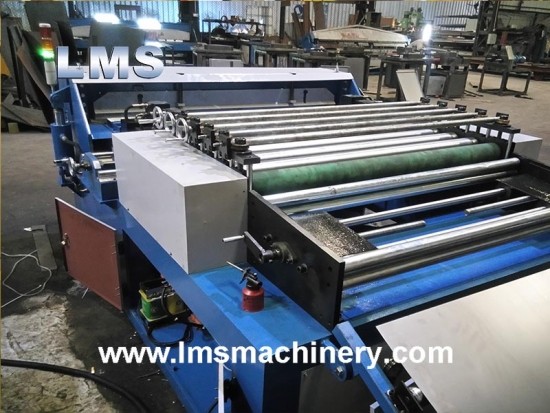

Straightener unit with Beader

Punch tie rod hole for duct bracing (Optional)

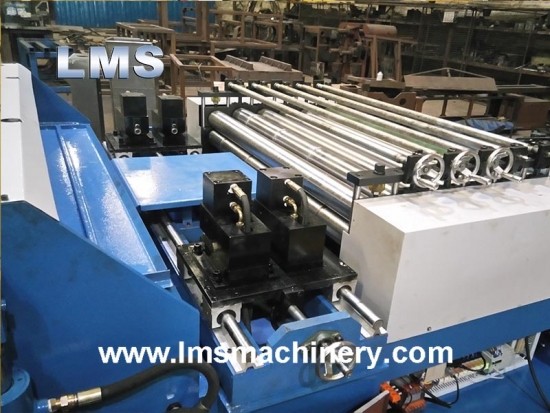

Four hydraulic notching die

Hydraulic shearing unit

Product introduction

1.With cut-to-length system, this coil line can match with Plasma cutting machine perfectly.

2.Plate notching for making “C Cleat” or “S Cleat” connection, this coil line will match the corresponding lock formers

3.Plate notching for making TDF flange connection, this coil line will match the TDF flange former and TDF folding machine
