LMS Fire Damper Riveting Platform

Categories

New Products

LMS Fire Damper Riveting Platform

Brand:
LMS
item no.:
Fire Damper Machine
Payment:
T/T
product origin:
Guangdong, China
Color:
Customized
shipping port:
Huangpu, China
Lead Time:
90 Days

Product Details

LMS Fire Damper Riveting Platform

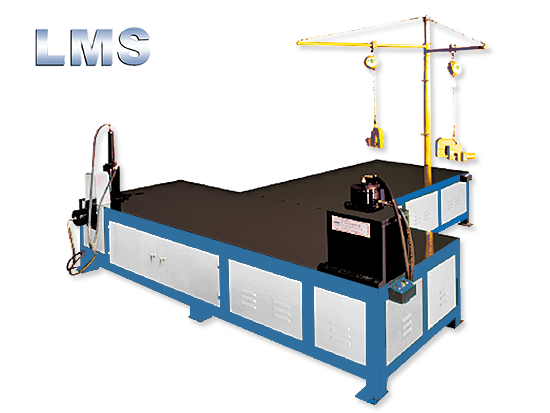

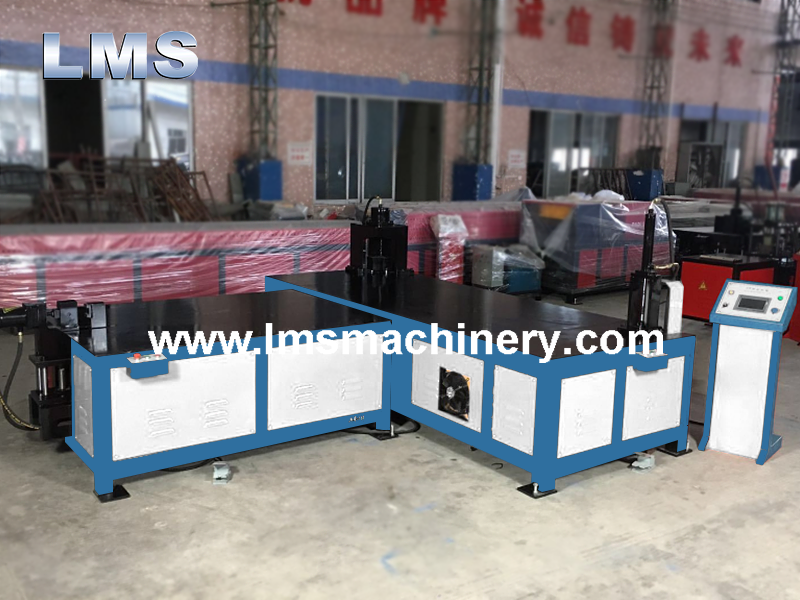

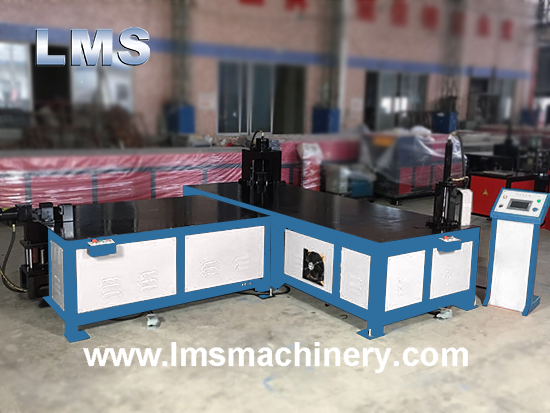

LMS Fire Damper Riveting Platform is mainly composed of corner & outer frame riveting platform, support bar riveting platform, weatherstrip riveting device, hydraulic system and computer operating system. It is one of the important production line equipment for fire damper manufacture.

Fire Damper Riveting Machine Main Technical Parameters:

Item	Parameters
Riveting Fire Damper Thickness	200 - 320 MM
Riveting Fire Damper Dimension	Min. 180 × 180 MM, Max. 3000 × 3000 MM
Riveting Material Requirement	1.2 – 2.0 MM Galvanized Plate
Riveting Efficiency	4 Seconds / Time, Excluding Assembly
External Dimensions of Platform	3600 × 3600 × 850 MM (L × W × H)
Electrical Control System	PLC Foot Control
Power Supply	380 V, 50 HZ, 3 Phase
Motor Power	4 KW (Corner Riveting) + 4 KW (Support Bar Riveting) + 4 KW (Outer Frame Riveting) + 3 KW (Weatherstrip Riveting), 15 KW in Total.

Fire Damper Fastening Platform Production Process:

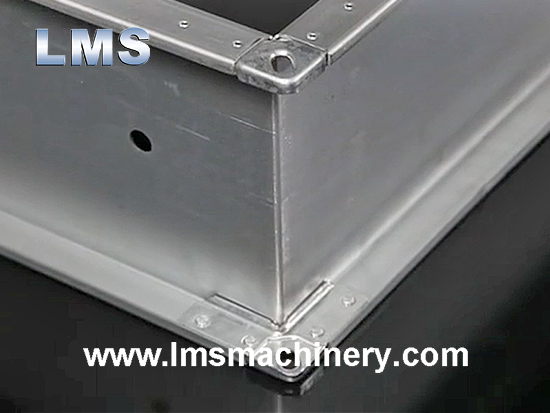

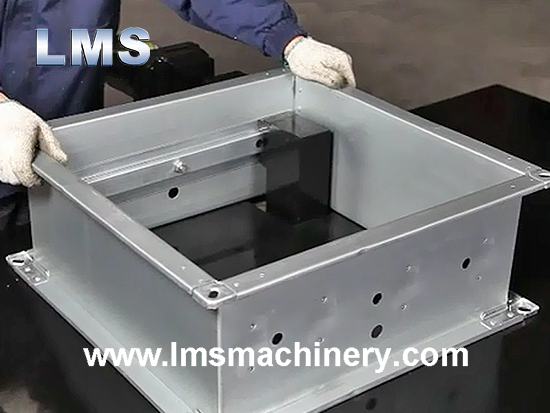

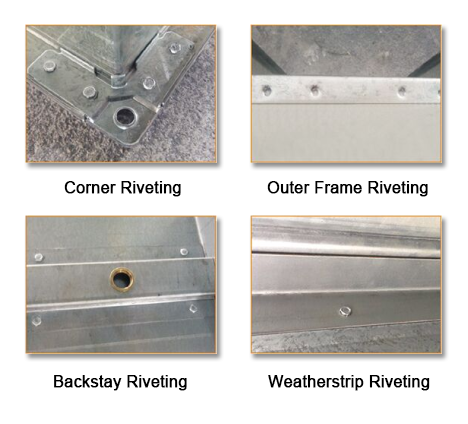

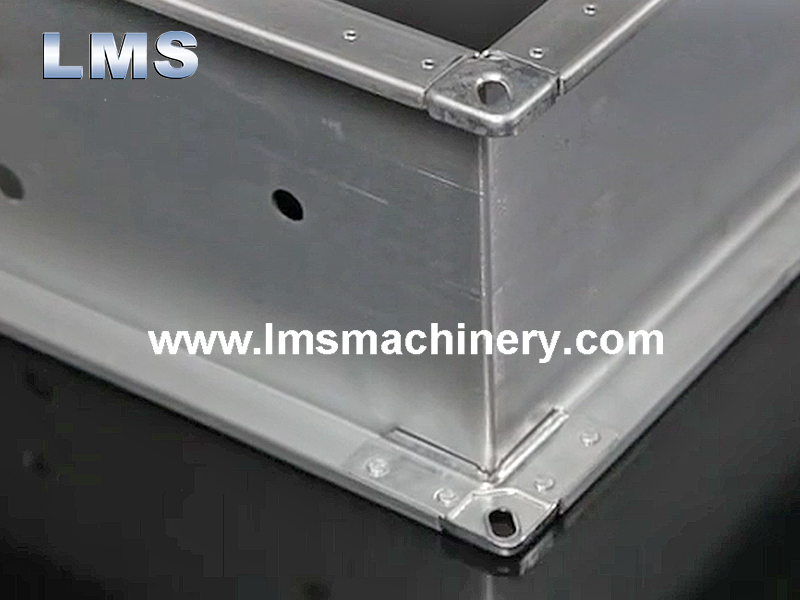

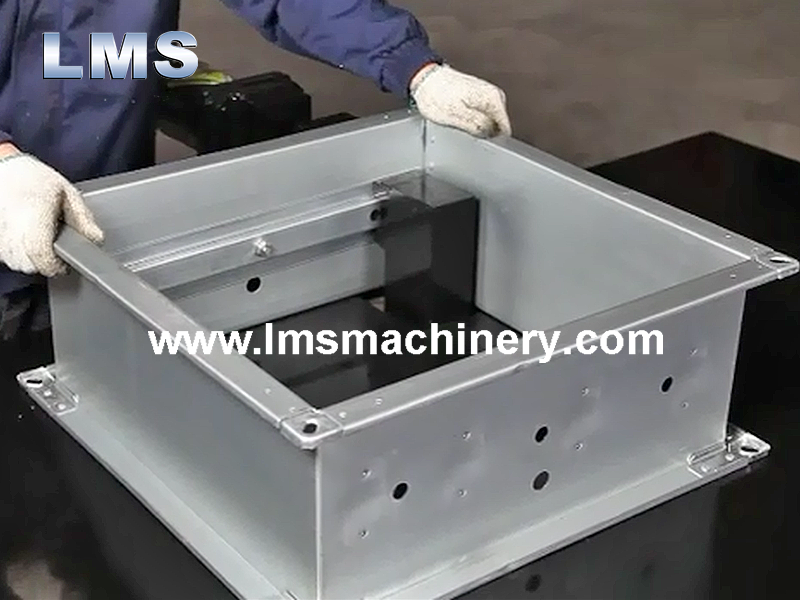

Outer Frame (Positive Pressure Air Supply Outlet) Riveting (4 Riveting) → Corner Riveting (4 Riveting) → Support Bar Riveting (2 Riveting) → Blade Assembly → Weatherstrip Riveting (Single Riveting) → Fire Damper Actuator Assembly → Final Product.

Fastening Platform For Fire Damper Manufacturing Composition:

Item	Quantity
Corner & Outer Frame Riveting Platform	1 Set
Support Bar Riveting Platform	1 Set

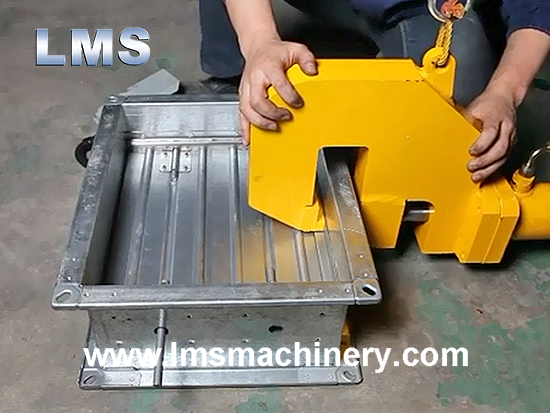

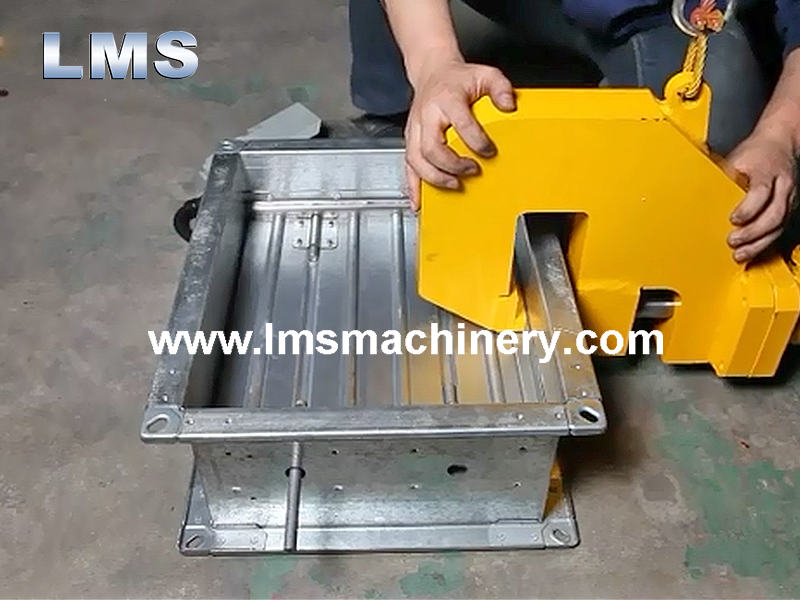

Weatherstrip Riveting Device	1 Set
Hydraulic System	4 Sets
Computer Operating System	1 Set

Fastening Platform For Fire Damper Manufacturing, Riveting Platform For Fire Damper Manufacturing

Riveting Machine For Fire Damper

Fire Damper Riveting Machine

Fire Damper Fastening Platform
